Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | CM572-DP |
| Manufacturer | ABB |
| Product Category | PROFIBUS DP Communication Module |
| Interface Type | PROFIBUS DP (RS-485) |
| Operation Mode | Slave (Class 1) |
| Baud Rate | 9.6 kbps – 12 Mbps (auto-negotiating) |
| Address Range | 0–125 (software-configurable) |
| Memory | 32 KB configuration storage |
| Isolation Voltage | 1500 VAC (field-to-logic) |
| Bus Connection | 9-pin D-Sub with screw locking |
| Power Consumption | 1.1W @ 5VDC (backplane) |
| Operating Temperature | -25°C to +70°C |
| Certifications | UL 61800-5-1, CE, PROFIBUS ID: 0x0063 |

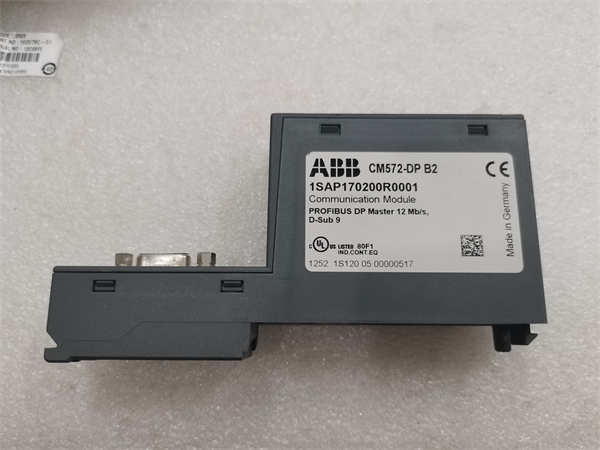

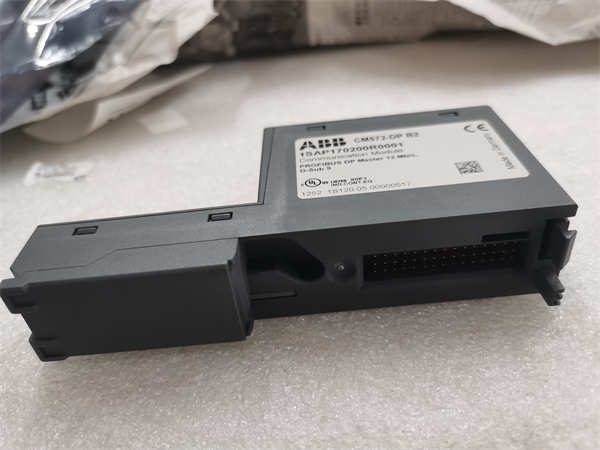

ABB CM572-DP
Product Introduction
The ABB CM572-DP is a dedicated PROFIBUS DP slave interface module for ABB’s AC500 PLC platform, enabling seamless integration into industrial automation networks dominated by Siemens, Rockwell, and other PROFIBUS master systems. Designed as a plug-in module for PM5xx CPU racks, the CM572-DP converts AC500 controllers into intelligent field devices capable of exchanging 244 bytes of I/O data per cycle with DP masters.
As part of ABB’s scalable communication portfolio, this module supports PROFIdrive and PROFISafe protocols, allowing AC500-based motor starters, valve terminals, and safety systems to operate as native nodes in multi-vendor production lines. The ABB CM572-DP features automatic baud rate detection and GSD file (GSDML-V2.3) compatibility, eliminating complex configuration steps while maintaining deterministic response times ≤1 ms for critical motion control applications.
Core Advantages and Technical Highlights
Plug-and-Play Integration: Automatic detection by DP masters (e.g., Siemens S7-400) using standardized GSD files. Hot-plug capability allows module replacement without network shutdown.
Dual-Port Architecture: Integrated repeater functionality enables daisy-chaining to subsequent nodes without external couplers, reducing cabinet space in packaging machinery control cabinets.
Diagnostic Depth: Real-time monitoring of bus voltage (5V±10%), telegram error rates, and station status. Detailed diagnostics accessible via ABB Automation Builder or PROFIBUS master engineering tools.
Robust Signal Integrity: Advanced line drivers with short-circuit protection (IEC 61158-2) maintain communication during ground faults. 1500V isolation prevents ground loops in electrified rail systems.
Extended Environment Tolerance: Operates at full 12Mbps speed from -25°C to +70°C without derating. Conformal coating resists corrosive atmospheres in chemical processing.
Typical Application Scenarios
Automotive Body Shops: Connects AC500-controlled welding robots to Siemens PLC-based transfer lines. The CM572-DP‘s ≤1ms cycle time synchronizes spot welding guns with conveyor positioning.
Water Treatment Plants: Interfaces ABB PLC-controlled chemical dosing stations with legacy PROFIBUS DCS. Module diagnostics alert operators to cable degradation before communication loss.
Cement Plant Baghouse Systems: Links dust collector pulse valves (ABB PM564 control) to central SCADA. PROFIBUS Safe functionality enables emergency stop cascades across 500m distances.
Related Model Recommendations
CM572-FMS: PROFIBUS FMS variant for building automation
PM571: Entry-level CPU compatible with CM572-DP
CM579-ETH: Ethernet/IP counterpart
TB521-ETH: Interface module for front connectors
CM572-DN: DeviceNet communication module
PM581-ETH: Safety CPU with integrated Ethernet

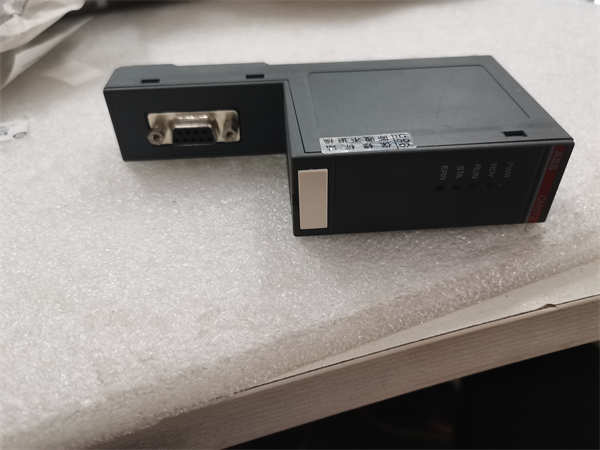

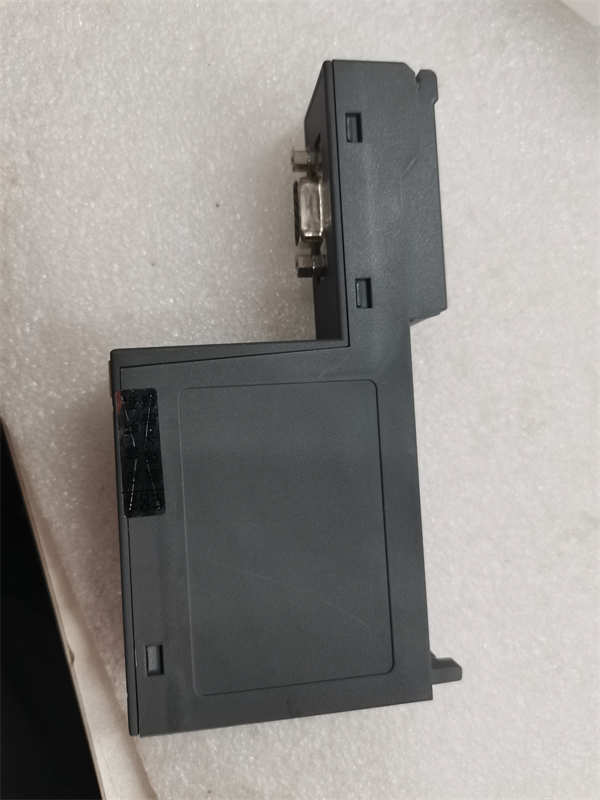

ABB CM572-DP
Installation, Commissioning and Maintenance Instructions
Installation: Mount vertically on CPU rack (slot 0-7). Verify backplane connector engagement. Use shielded PROFIBUS cable (Type A) with 90Ω impedance. Terminate bus ends with active terminators. Ground shield at master end only.
Maintenance:
Monitor “SF” LED for station faults
Biannually clean D-Sub contacts with electronic cleaner
Update GSD files annually in master systems
Replace after 150,000 insertion cycles or 10 years
Use Automation Builder’s bus analyzer for signal quality checks
Service and Guarantee Commitment
ABB provides a 5-year warranty covering electrical failures. Global technical support delivers:
PROFIBUS network diagnostics within 4 hours
GSD file customization for non-standard masters
Lifetime repair services (until 2030)
On-site commissioning support
NIST-traceable calibration certificates
