Description
Key Technical Specifications

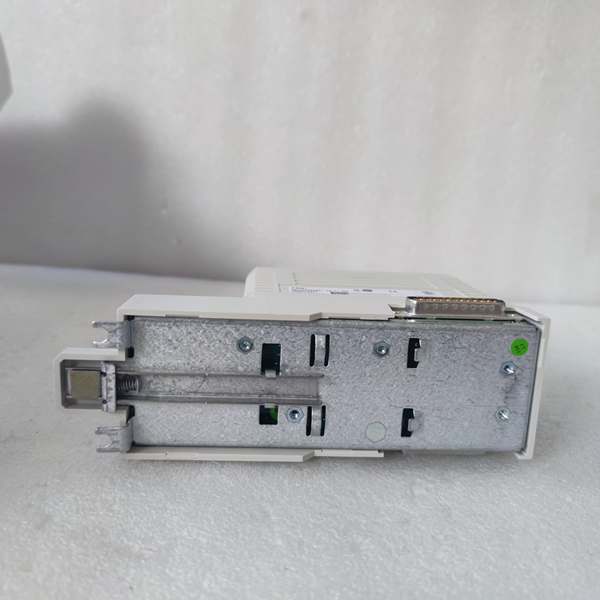

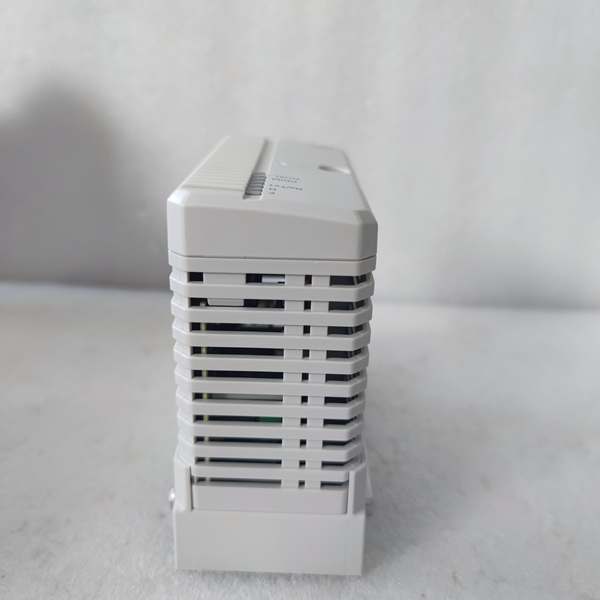

- Model Number: CI773F (Official part number: 3BDH000395R0001)
- Manufacturer: ABB Process Automation Division
- Product Family: ABB Freelance DCS (Distributed Control System) communication modules
- Communication Protocol: PROFIBUS DP Master (supports DP-V0 and DP-V1)
- Network Support:
- Maximum 126 PROFIBUS DP slave devices
- Data transfer rates: 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, 12 Mbps
- PROFIBUS PA support: Yes (via separate PA/DP coupler, not included)
- Interface: 1 × 9-pin D-Sub connector (female) for PROFIBUS network
- Redundancy:
- Controller redundancy: Yes (works with redundant AC700F/AC900F systems)
- Line redundancy: No (requires external RLM02 module for line redundancy)
- Power Requirements:
- Input: 24V DC (±5%)
- Current consumption: 80 mA (via 24V terminal of CPU module)
- Power dissipation: 1.6 W
- Mechanical Features:
- Mounting: Plug-in module for AC700F/AC900F controller racks
- Form factor: 1U height in standard 19″ rack
- Protection: IP20 (dust protection)
- Hot swap: Yes (module can be replaced without powering down the system)
- Environmental Ratings:
- Operating temperature: 0°C to +60°C (32°F to 140°F)
- Storage temperature: -40°C to +85°C (-40°F to 185°F)
- Relative humidity: 5% to 95% (non-condensing)
- Certifications: CE, UL 508, IEC 61131-2, RoHS 2.0
- Software Requirements: Freelance software version 2013 SP1 or higher
Field Application & Problem Solved
The CI773F is a critical component in ABB’s Freelance DCS ecosystem, serving as the interface between the controller and PROFIBUS DP field devices. In industrial automation, it enables:
-
Centralized control of distributed I/O: Connects AC700F/AC900F controllers to remote I/O stations, eliminating complex wiring and reducing installation costs by 30-40% compared to hardwired solutions.
-
Integration of third-party devices: Bridges ABB DCS with non-ABB field instruments, sensors, and actuators that support PROFIBUS DP, expanding system flexibility.
-
Process optimization in harsh environments: A paper mill in Finland reduced downtime by 25% by replacing a malfunctioning proprietary communication system with CI773F modules, which maintained reliable data exchange despite high humidity and electrical noise.
-
Cost-effective expansion: A German chemical plant added new production lines without redesigning their control system by simply adding CI773F modules to connect new PROFIBUS devices.
Installation & Maintenance Pitfalls (Expert Tips)
-
Network Configuration Best Practices:
- Termination: Always terminate the PROFIBUS network with 120Ω resistors at both ends
- Segment length: Follow PROFIBUS guidelines (e.g., 100m at 12Mbps, 1200m at 9.6kbps)
- Cabling: Use shielded twisted-pair PROFIBUS cable, separated from power cables by at least 30cm
-
Common Mistakes to Avoid:
- Incorrect firmware: Always update to the latest firmware compatible with your Freelance software version
- Overloading the bus: Never exceed the 126-slave limit or the total bus load of 450mA
- Ignoring diagnostics: The module has an LED status indicator (green = OK, red = fault) – check it during commissioning and troubleshooting
-
Troubleshooting Guide:
- If the fault LED lights:
- Verify 24V power supply
- Check PROFIBUS cable integrity (no shorts or breaks)
- Ensure proper termination
- Confirm slave devices are powered and functioning
- For intermittent communication:
- Reduce data rate to 1.5Mbps (more stable in noisy environments)
- Add line isolators between segments
- Verify all devices share the same baud rate
- If the fault LED lights:
Technical Deep Dive & Overview
The CI773F is a purpose-built PROFIBUS DP Master module that sits at the heart of ABB’s Freelance DCS architecture. Its core function is to establish high-speed communication between the AC700F/AC900F controller and field devices, enabling real-time monitoring and control in industrial processes.
Internally, the module features a dedicated PROFIBUS protocol engine that handles data framing, error checking, and bus arbitration, freeing the controller’s CPU from these tasks. This offloading improves overall system performance, allowing the controller to focus on process control logic.
What makes this module stand out is its seamless integration with ABB’s ecosystem:
- Controller redundancy support: Automatically switches to backup controller in case of primary failure, ensuring continuous operation
- Hot-swappable design: Facilitates maintenance without system downtime, crucial for 24/7 operations
- Diagnostic capabilities: Provides clear status indication and fault reporting to simplify troubleshooting
In essence, the CI773F serves as the digital nervous system connecting the “brain” (controller) to the “muscles and senses” (field devices) in industrial automation, enabling efficient, reliable process control in sectors ranging from pharmaceuticals to power generation.
For system integrators and plant engineers, understanding the CI773F’s capabilities is essential for designing robust, scalable automation solutions that can adapt to evolving production needs while maintaining uptime and performance.
