Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB AX722F 3BDH000377R0001 |
| Manufacturer | ABB |
| Product category | Analog Input/Output Module |
| Input Channels | 8 channels (±10 V, 0/4-20 mA, RTD, 24 VDC) |
| Output Channels | 8 channels (4 channels configurable as 0/4-20 mA or ±10 V; 4 channels as ±10 V) |
| Resolution | 12-bit + sign |
| Communication | PROFIBUS remote I/O, AC 700F / AC 900F direct I/O |
| Operating Temperature | -20°C to +70°C |
| Humidity Range | ≤95% RH |
| Protection Rating | IP20 |
| Dimensions | 67.5 mm (W) x 76 mm (H) x 54 mm (D) |
| Weight | 0.13 kg |
| Power Supply | 24V DC |

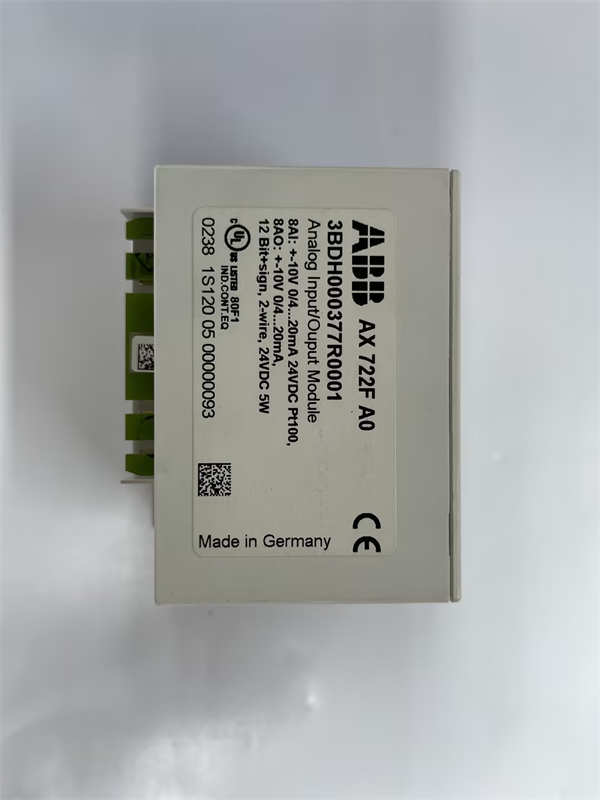

ABB AX722F 3BDH000377R0001
Product Introduction
The ABB AX722F 3BDH000377R0001 is a versatile analog input/output module designed for industrial automation systems. It combines 16 channels in a single module, offering high flexibility and integration capabilities. Eight channels can be individually configured as analog inputs to sense voltage, current, or temperature, while the remaining eight channels can be configured as analog outputs. This module is suitable for PROFIBUS remote I/O and direct I/O applications in AC 700F / AC 900F systems.
Core Advantages and Technical Highlights
High Integration and Flexibility: The AX722F module combines analog input and output channels in one unit, providing 16 channels in total. This high integration reduces the need for multiple modules, saving space and simplifying system design.
Excellent Electrical Performance: The module features specific electrical characteristics, such as dv/dt and di/dt control, blocking voltage, and up to 6kA cut-off current, making it suitable for high-power applications.
Compact Design: With dimensions of 67.5 mm (W) x 76 mm (H) x 54 mm (D) and a weight of 0.13 kg, the AX722F is compact and easy to integrate into various devices and systems.
Wide Application Range: Due to its flexible configuration and robust performance, the AX722F is widely used in industrial automation, energy management, and environmental monitoring. It can meet the monitoring and control needs of various complex systems.

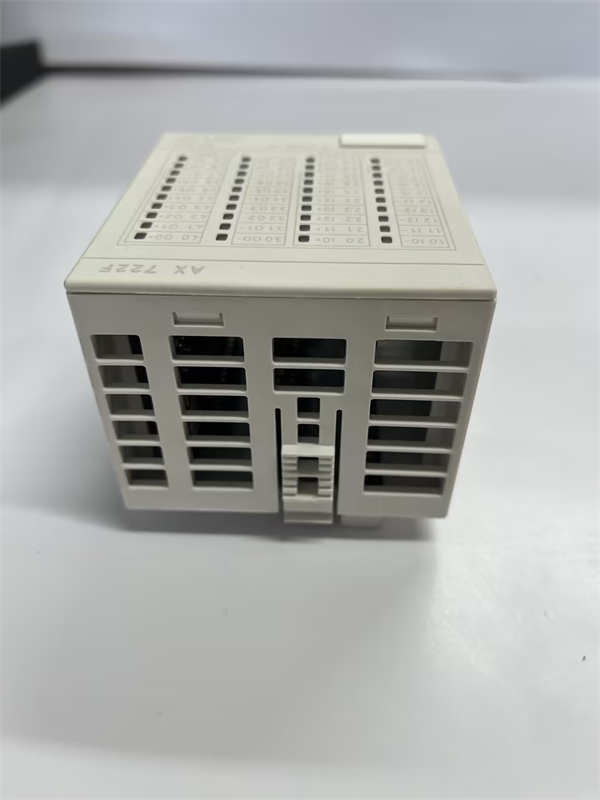

ABB AX722F 3BDH000377R0001
Typical Application Scenarios
The ABB AX722F 3BDH000377R0001 is widely used in various industrial sectors:
-
Industrial Automation: Monitoring and control of automated production lines and machinery.
-
Energy Management: Monitoring and control of energy equipment and systems in power plants, oil, and gas fields.
-
Environmental Monitoring: Monitoring environmental parameters such as temperature, humidity, and air pressure.
Related Model Recommendations
-
ABB AC800F: A powerful PLC controller that integrates seamlessly with the AX722F for advanced automation control.
-
ABB AI810: A complementary analog input module for precise data acquisition.
-
ABB DI810: A digital input module that can be used alongside the AX722F to provide a complete I/O solution.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements (-20°C to +70°C, ≤95% RH). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for panel mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the ABB AX722F 3BDH000377R0001, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
