Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | AX670 3BSE000566R1 |
| Manufacturer | ABB |
| Product Category | PROFIBUS DP Master Module (S800 I/O) |
| Communication Protocol | PROFIBUS DP-V1 (EN 50170) |
| Data Transfer Rate | 9.6 kbps to 12 Mbps (auto-negotiating) |
| Channel Count | 2 independent ports (redundant operation) |
| Max Device Connections | 124 slaves per segment |
| Diagnostic Depth | Module, segment, and slave-level |
| Hot-Swap Support | Yes (TM I/O Safe) |
| Power Consumption | 1.8 W (typical) |
| Operating Temperature | -25°C to +70°C |
| Certifications | CE, UL, IEC 61131-2 |

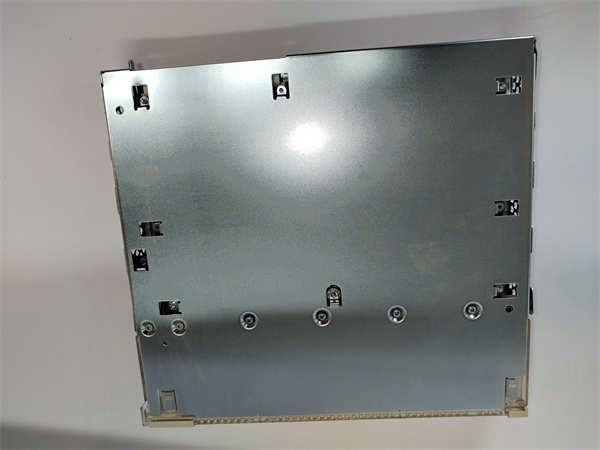

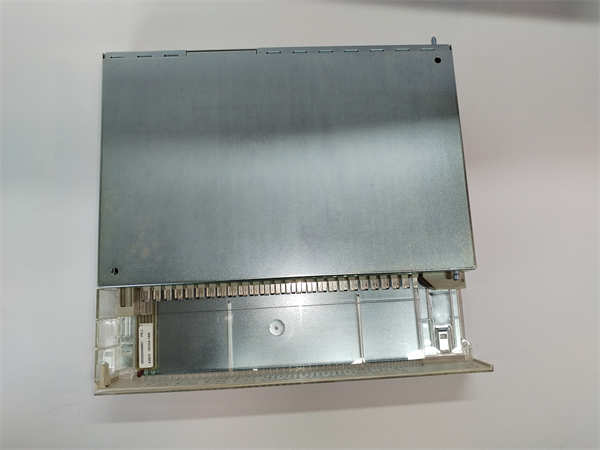

ABB AX670 3BSE000566R1
Product Introduction
The ABB AX670 3BSE000566R1 is a high-performance PROFIBUS DP master interface module designed for ABB’s S800 I/O system within the 800xA and Advant OCS control platforms. This industrial-grade communication module enables seamless integration of PROFIBUS DP slave devices – such as variable frequency drives, I/O blocks, and sensors – into ABB’s distributed control architecture. The AX670 acts as a protocol gateway, translating PROFIBUS DP-V1 telegrams into the native S800 bus protocol for real-time data exchange with AC 800M controllers.
Engineered for mission-critical automation, the 3BSE000566R1 supports dual-channel redundancy with automatic bus termination, ensuring continuous operation even during network disturbances. Its integrated diagnostic suite monitors slave device health, cable integrity, and signal quality, providing actionable insights through Control Builder M engineering tools. For brownfield modernization projects, the AX670 bridges legacy PROFIBUS equipment with ABB’s latest control technology, eliminating costly system replacements.
Core Advantages and Technical Highlights
Network Resilience:
Dual isolated PROFIBUS ports enable redundant trunk-line configurations, with automatic switchover <10 ms during segment failure. The AX670 implements advanced error confinement to prevent faulty slaves from disrupting entire networks.
Deterministic Performance:
Achieves cycle times down to 1 ms for 32 slaves with 244 bytes I/O, synchronized via AC 800M‘s global clock. Hardware-based PROFIBUS ASIC ensures jitter-free communication critical for motion control applications.
Engineering Efficiency:
Auto-scan technology detects slave configurations automatically, reducing commissioning time by 70%. Integrated GSD library supports >5,000 third-party devices. TM I/O Safe allows module replacement under full voltage without system shutdown.
Typical Application Scenarios
The ABB AX670 3BSE000566R1 excels in automotive manufacturing, where it synchronizes robotic cells (KUKA, FANUC) with ABB’s DCS for paint shop conveyor control. In cement plants, it interfaces with weigh feeders and motor starters across 500m+ PROFIBUS segments, surviving high EMI environments.
Water utilities deploy the AX670 to integrate pump station VFDs (Siemens, Danfoss) into centralized SCADA, while pharmaceutical facilities use it for GMP-compliant batch process control with remote I/O islands. Mining operations leverage its vibration tolerance (-25°C startup) for crushing plant motor control.
Related Model Recommendations
CI854A: PROFIBUS controller module for direct AX670 communication
AX672 3BSE000568R1: PROFIBUS DP Slave version for subsystem integration
SD822: Redundant power supply for S800 I/O racks
TB811: Termination board for AX670 signal distribution
SA801: S800 I/O baseplate for module mounting
3BSE020510R1 (XVC768): Analog input module for same rack integration

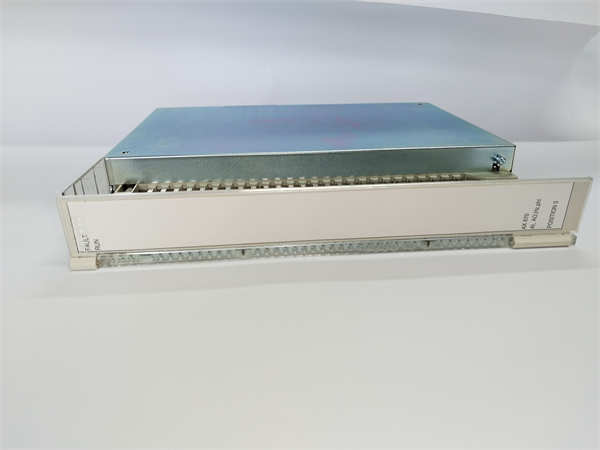

ABB AX670 3BSE000566R1
Installation, Commissioning and Maintenance Instructions
Installation Preparation:
Verify PROFIBUS segment length ≤100m (12Mbps) or ≤1200m (93.75kbps). Use purple-shielded cables (Type A) with 90° connectors. Ground shield at both ends in high-noise environments. Ensure rack backplane voltage 5V±5%.
Maintenance Suggestions:
Quarterly inspect connector seals for IP20 integrity. Monitor “BUS FAULT” LED via Control Builder M. Replace modules showing persistent segment errors. Always use ABB’s FDT/DTM framework for slave device diagnostics. Store spares in original ESD packaging.
Service and Guarantee Commitment
ABB provides a 36-month warranty for the AX670 3BSE000566R1, covering hardware defects and performance compliance. Global technical support includes firmware updates via ABB Ability™ Support Portal and 24/7 emergency hotline. On-site service engineers available within 48 hours for critical failures. All modules undergo 72-hour thermal cycling tests (-40°C to +85°C) before shipment. Extended lifecycle management guarantees spare availability for 15 years after discontinuation.
