Description
ABB AI830A Analog Input Module – Technical Specifications
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB AI830A |
| Manufacturer | ABB |
| Product Category | Analog Input Module |
| Channels | 8 channels |
| Input Types | 0-20mA, 4-20mA, ±10V |
| Resolution | 16-bit |
| Accuracy | ±0.1% of span |
| Sampling Rate | 100ms per channel |
| Input Impedance | 250Ω (current), >1MΩ (voltage) |
| Isolation | 1500V channel-to-bus |
| Power Supply | 24V DC (via backplane) |
| Power Consumption | 2.8W typical |
| Operating Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Compatible Systems | ABB S800 I/O, Advant Controller 410 |

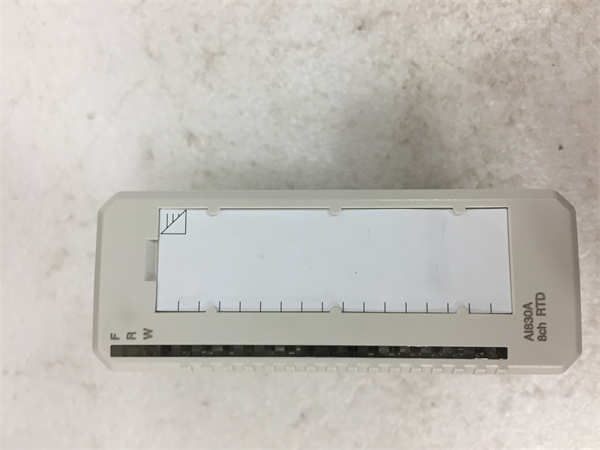

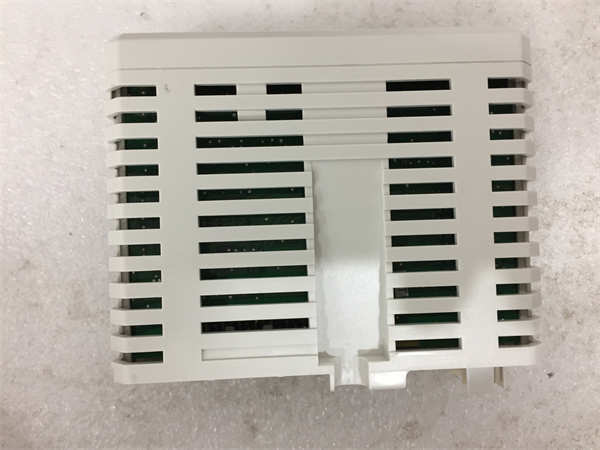

ABB AI830A
Product Introduction
The ABB AI830A is a high-performance 8-channel analog input module designed for industrial process control applications. Part of ABB’s reliable S800 I/O family, this module provides precise measurement of current and voltage signals from field instruments.
Key features include:
16-bit resolution for accurate signal conversion
Flexible input configuration (per-channel selection)
Robust industrial design with 1500V isolation
Comprehensive diagnostic capabilities
Core Advantages
Measurement Precision:
16-bit ADC resolution
±0.1% basic accuracy
Excellent long-term stability
Flexible Configuration:
Per-channel input type selection
Software-configurable filtering
Scalable system architecture
Robust Design:
-25°C to +70°C operating range
High noise immunity
DIN rail mounting

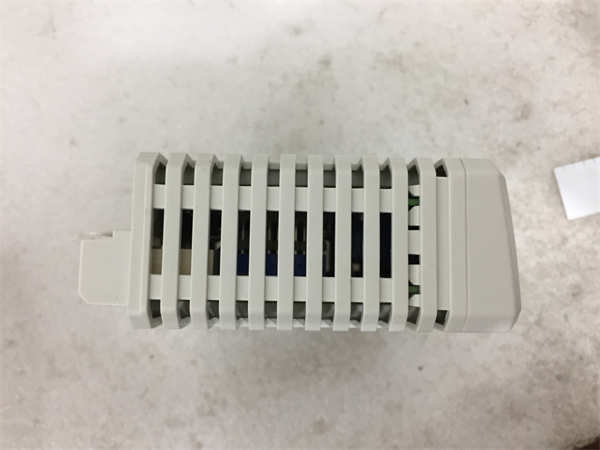

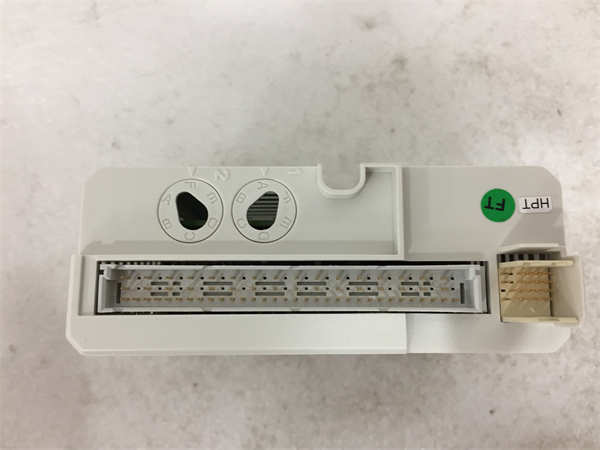

ABB AI830A
Typical Applications
Process variable monitoring (pressure, flow, level)
Temperature transmitter interfaces
Analog signal conditioning
Batch process control
Related Models
ABB AI830B – Enhanced version with RTD/TC inputs
ABB AO830 – Analog output counterpart
ABB DI830 – Digital input module
ABB CI830 – Communication interface
Installation & Maintenance
Mount on DIN rail in protected enclosure
Use shielded cables for analog signals
Verify grounding scheme
Annual calibration recommended
Service Commitment
24-month standard warranty
Global technical support
Firmware updates available
Repair and calibration services
The ABB AI830A combines measurement accuracy with industrial durability, making it ideal for continuous process applications.
