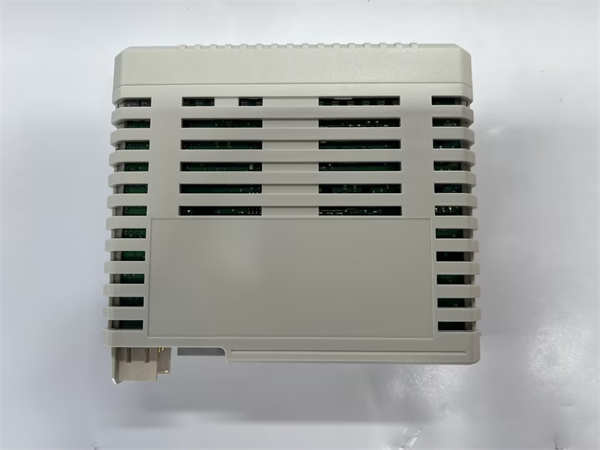

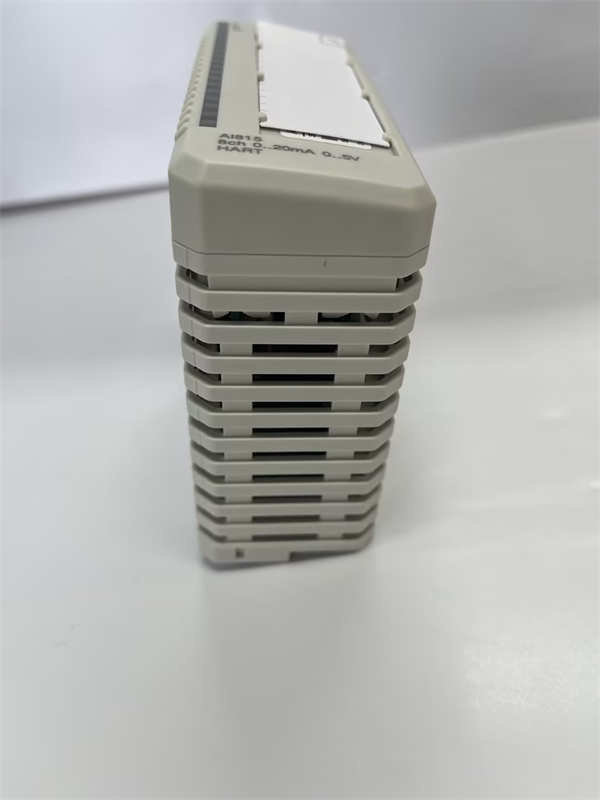

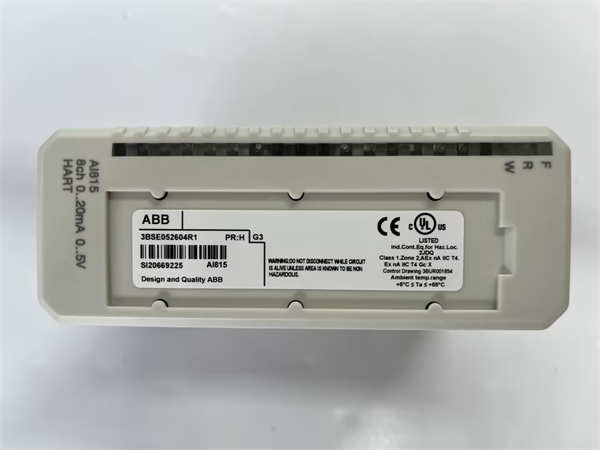

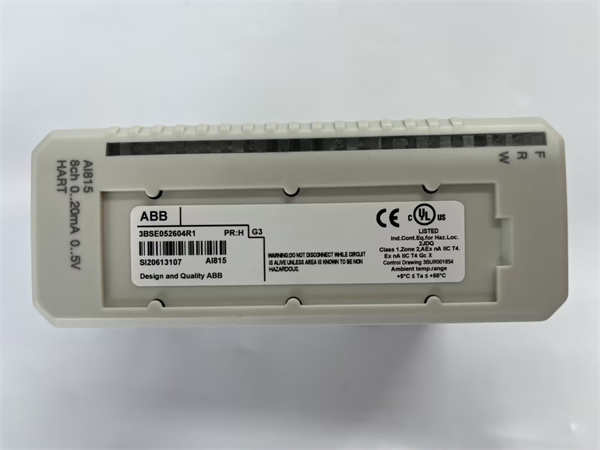

ABB AI815 3BSE052604R1

Product introduction

The AI815 3BSE052604R1 is a high-precision analog input module from ABB, engineered as a versatile component of the S800 I/O system—ABB’s modular platform for industrial process control. This 8-channel module excels at converting continuous physical signals (such as temperature, pressure, flow, and voltage) from field sensors into digital data, enabling precise monitoring and control by ABB controllers like the AC 800M.

What sets the AI815 3BSE052604R1 apart is its ability to handle multiple signal types without hardware modifications, making it a flexible choice for diverse industrial environments. Whether connected to thermocouples in a furnace, pressure transmitters in a pipeline, or voltage sensors in a power distribution system, the AI815 3BSE052604R1 ensures accurate data acquisition. In automation networks, it serves as a critical link between analog field devices and digital control systems, supporting data-driven decision-making and process optimization.

Core advantages and technical highlights

Multi-signal compatibility: The AI815 3BSE052604R1 eliminates the need for separate modules for different sensor types, supporting 4-20 mA current loops, voltage signals, thermocouples, and RTDs. This versatility reduces inventory costs and simplifies system design—for example, a single module can monitor temperature via Pt100 RTDs, pressure via 4-20 mA transmitters, and pH via ±10 V sensors in a chemical processing plant.

Exceptional accuracy and isolation: With ±0.05% full-scale accuracy, the AI815 3BSE052604R1 ensures precise measurement of critical process variables. Its 2.5 kV AC isolation between channels and the backplane prevents ground loops and noise interference, a common issue in industrial settings with multiple grounded devices. This is particularly valuable in steel mills or power plants, where high-voltage equipment could distort analog signals.

Extended environmental resilience: Rated to operate from -40°C to 70°C and certified for ATEX Zone 2, the AI815 3BSE052604R1 thrives in harsh conditions. Whether installed in freezing cold storage facilities or near high-temperature industrial ovens, it maintains measurement integrity. The ATEX certification also allows deployment in hazardous areas like refineries, where flammable gases may be present.

Seamless integration and diagnostics: The module integrates smoothly with ABB’s S800 I/O rack and communicates via ModuleBus, enabling real-time data transfer to controllers. Built-in diagnostics detect sensor faults (e.g., open thermocouple circuits or shorted RTDs), triggering alerts that reduce troubleshooting time. In pharmaceutical manufacturing, this ensures rapid response to deviations in critical parameters like reactor temperature.

Typical application scenarios

In oil and gas refineries, the AI815 3BSE052604R1 monitors key process variables across distillation columns. It connects to 8 sensors: 4 Pt100 RTDs measuring column temperatures, 2 4-20 mA pressure transmitters, and 2 0-10 V flow meters. The module’s ATEX certification ensures safe operation in Zone 2 areas, while its high isolation prevents interference from nearby pumps and compressors. Data from the AI815 3BSE052604R1 enables the AC 800M controller to optimize heating and flow rates, improving product yield.

Within food and beverage processing, the AI815 3BSE052604R1 plays a critical role in pasteurization systems. It monitors 6 thermocouples (Type K) placed at different stages of the heating process and 2 4-20 mA pressure sensors in the holding tube. The module’s accuracy ensures temperatures stay within the 72-75°C range required for microbial safety, while diagnostics alert operators to faulty thermocouples—preventing under-processing or product spoilage.

In renewable energy plants, such as solar thermal facilities, the AI815 3BSE052604R1 tracks heat transfer fluid temperatures via RTDs and loop pressure via 4-20 mA transmitters. Its wide temperature range (-40°C to 70°C) handles extreme outdoor conditions, from winter nights to summer afternoons. By providing precise data to the control system, the AI815 3BSE052604R1 helps optimize energy collection and storage, maximizing plant efficiency.

ABB AI815 3BSE052604R1

Related model recommendations

ABB AO810 3BSE008550R1: An 8-channel analog output module that pairs with the AI815 3BSE052604R1, converting digital control signals into 4-20 mA or 0-10 V outputs to control valves, pumps, or variable frequency drives.

ABB DI840 3BSE020836R1: A 16-channel digital input module that complements the AI815 3BSE052604R1 in mixed-signal systems, monitoring on/off sensors alongside the AI815 3BSE052604R1’s analog measurements.

ABB AC800M 3BSE018105R1: A controller that processes data from the AI815 3BSE052604R1, executing PID loops and logic to maintain optimal process conditions.

ABB TU846 3BSE008519R1: A terminal unit that provides secure wiring connections for the AI815 3BSE052604R1, simplifying field sensor integration in the S800 I/O rack.

ABB TB840A 3BSE037760R1: A module bus modem that extends communication between the AI815 3BSE052604R1 and remote controllers in large-scale facilities, such as refineries or power plants.

ABB AI835 3BSE022364R1: A high-density 16-channel analog input module, ideal for systems requiring more channels than the 8-channel AI815 3BSE052604R1.

ABB CI854A 3BSE022469R1: A Profibus DP adapter that connects the AI815 3BSE052604R1 to non-ABB controllers, enhancing interoperability in multi-vendor systems.

Installation, commissioning and maintenance instructions

Installation preparation: Mount the AI815 3BSE052604R1 in an S800 I/O rack on a 35 mm DIN rail, ensuring the ambient temperature stays within -40°C to 70°C. Use shielded twisted-pair cables (0.5-1.5 mm²) for sensor connections, grounding the shield at both ends for RTDs and thermocouples to minimize noise. For hazardous areas (ATEX Zone 2), use flame-retardant cables and ensure all wiring complies with local safety standards. Verify the 24 V DC power supply is stable and protected by a 1 A fuse before powering on.

Maintenance suggestions: Inspect the AI815 3BSE052604R1 semi-annually for loose connections or dust, cleaning with compressed air if necessary. Use ABB’s Control Builder software to check diagnostic data, addressing sensor faults (e.g., open circuits) promptly. Calibrate the module annually using a precision signal generator to maintain ±0.05% accuracy, particularly for critical applications like pharmaceutical processing. Replace the module if channels consistently show drift beyond specifications, ensuring the replacement is configured with the same signal types and ranges as the original.

Service and guarantee commitment

The AI815 3BSE052604R1 comes with a 2-year warranty, covering manufacturing defects and ensuring compliance with ABB’s rigorous quality standards. ABB’s global technical support team provides 24/7 assistance for installation, configuration, and troubleshooting, with access to online resources including user manuals, calibration guides, and software updates.

For enhanced reliability, optional service contracts offer preventive maintenance, on-site calibration, and priority replacement of faulty units. ABB guarantees compatibility with current and future versions of the S800 I/O system and AC 800M controllers, ensuring long-term integration. This commitment reflects ABB’s confidence in the AI815 3BSE052604R1’s performance, making it a trusted choice for precise analog measurement in critical industrial applications.
