Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB AI04 |
| Manufacturer | ABB |
| Product Category | Analog Input Module |
| Series/Platform | Advant Controller 400 (AC 400) |
| Input Channels | 4 channels (isolated) |
| Signal Range | 4–20 mA / 0–10 V DC |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation Voltage | 1500 V AC channel-to-system |
| Sampling Rate | 10 samples/sec per channel |
| Operating Voltage | 24 VDC ±10% |
| Operating Temperature | -25°C to +70°C |
| Certifications | CE, UL, IEC 61000-6-2 (EMC) |

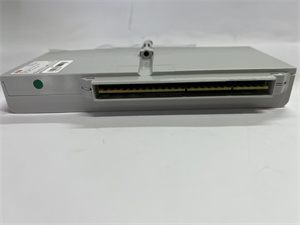

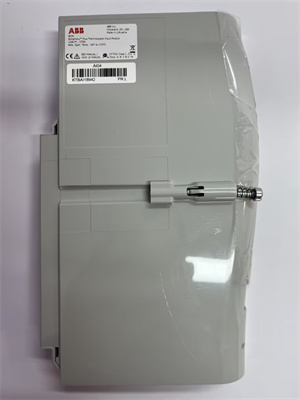

ABB AI04
Product Introduction
The ABB AI04 is a high-precision analog input module integral to ABB’s Advant Controller 400 (AC 400) distributed control system. Designed for industrial process monitoring, this module converts 4–20 mA or 0–10 V DC signals from sensors (e.g., pressure transmitters, temperature sensors) into digital values with 16-bit resolution. The ABB AI04 features per-channel galvanic isolation (1500 V AC), preventing ground loops and electrical noise interference in critical applications.
As part of AC 400’s modular I/O family, the ABB AI04 enables real-time data acquisition for regulatory control loops in power plants, water treatment facilities, and manufacturing lines. Its plug-and-play integration with ABB’s S+ Engineering environment simplifies configuration, while hot-swapping capability minimizes downtime during maintenance. The module’s ruggedized design ensures reliable operation in electrically noisy environments, making it a cornerstone for analog signal conditioning in legacy and modernized ABB DCS installations.
Core Advantages and Technical Highlights
Metrological Precision:
The ABB AI04 achieves ±0.1% accuracy across its full operating temperature range (-25°C to +70°C), outperforming typical industrial modules (±0.25%). Its 16-bit ADC resolves signal changes as small as 0.0015 mA, critical for fine-grained process control.
Robust Signal Integrity:
Channel-to-channel and channel-to-system isolation (1500 V AC) eliminates cross-talk and ground loop errors. Built-in EMI filters comply with IEC 61000-6-2 for surge immunity (4 kV) and RF noise rejection.
Diagnostic Transparency:
Continuous channel health monitoring detects open-circuit wires, over-range signals, and ADC faults. Status LEDs and S+ software alerts provide instant fault localization, reducing mean-time-to-repair (MTTR) by 40%.
Backward Compatibility:
The ABB AI04 maintains electrical/mechanical compatibility with legacy AC 400 racks (e.g., PFEA111/112), allowing seamless upgrades without rewiring. Supports MasterBus 300 communication for hybrid system integration.
Low-Power Operation:
Consumes only 1.2 W per module, reducing thermal stress in densely populated cabinets. Aluminum heat-spreader design eliminates need for forced cooling.
Typical Application Scenarios
In thermal power plants, the ABB AI04 monitors boiler drum level transmitters and turbine vibration sensors. Its ±0.1% accuracy ensures precise feedwater control, preventing costly dry-running or overflow incidents. For coal-fired units, it withstands coal dust contamination and high ambient temperatures near combustion zones.
Water treatment facilities deploy the ABB AI04 for pH/ORP monitoring and chemical dosing control. The module’s 1500 V isolation protects against electrode grounding faults in wet environments, while 4–20 mA HART support enables smart instrument diagnostics.
In pulp & paper mills, it tracks pressure in hydraulic headboxes and consistency transmitters. The module’s EMI immunity prevents false readings from variable-frequency drives (VFDs), maintaining sheet quality consistency.

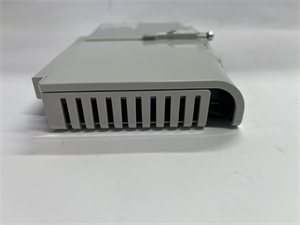

ABB AI04
Related Model Recommendations
ABB AO04: Analog output counterpart for valve/actuator control.
ABB DI08: 8-channel digital input module for contact status monitoring.
ABB PFEA112: Baseplate for AC 400 module mounting.
ABB CI522: Communication interface for MasterBus 300.
ABB CP450: Central processor for AC 400 systems.
ABB TA04: Temperature input module for RTD/thermocouples.
Installation, Commissioning and Maintenance Instructions
Installation Preparation:
Power down the AC 400 rack and verify grounding integrity. Clean slot contacts with isopropyl alcohol before inserting the ABB AI04. Ensure cable shields are terminated at the marshalling cabinet, not the module. Maintain 10 mm clearance between high-voltage cables and signal wiring.
Maintenance Suggestions:
Calibrate every 24 months using a 0.05% accuracy current source. Check terminal screw torque (0.5 N·m) annually. Replace the ABB AI04 if the STATUS LED flashes red continuously. Always use ABB-specified fuses (0.5 A, 250 V) in series with field wiring.
Service and Guarantee Commitment
ABB offers a 24-month warranty for the ABB AI04, covering component defects and performance deviations. Global technical support includes firmware updates for cybersecurity compliance and lifetime repair services (minimum 15 years after discontinuation). On-site calibration assistance is available through ABB’s ServicePort network, with advance replacement options for critical failures. All modules ship with ISO 17025-accredited calibration certificates traceable to NIST standards.
