Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | AI03 |
| Manufacturer | ABB |
| Product Category | Analog Input Module (S900 I/O Series) |
| Channels | 8 differential / 16 single-ended |
| Input Types | ±10V, 0–10V, 0–5V, 1–5V, ±20mA, 0–20mA, 4–20mA |
| Resolution | 16-bit (including sign) |
| Accuracy | ±0.05% of range (±12.5 μV) at 25°C |
| Common-Mode Rejection | >120 dB at 50/60 Hz |
| Update Rate | 10 ms per channel group |
| Overvoltage Protection | ±35V continuous / ±50V transient |
| Isolation | 500 V AC (channel-to-channel and channel-to-bus) |
| Operating Temperature | -25°C to +70°C |
| Connection | Spring-clamp terminals (screwless) |
| HART Support | Yes (per-channel digital overlay) |

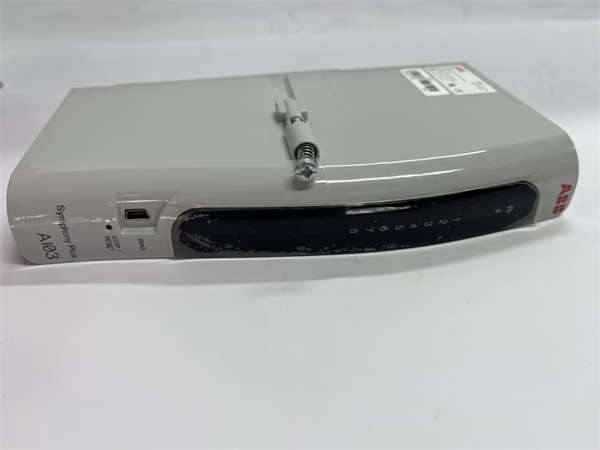

ABB AI03
Product Introduction
The ABB AI03 is a high-density analog input module from ABB’s S900 I/O series, engineered for precision measurement in industrial automation systems. This versatile module interfaces with diverse sensors – including temperature transmitters, pressure transducers, and flow meters – converting analog signals into digital data for ABB’s AC800M and Advant Controller platforms. The ABB AI03 provides eight differentially isolated channels (configurable as 16 single-ended inputs) with automatic sensor type detection and signal conditioning.
Designed for critical process applications, the ABB AI03 supports all major analog signal standards (±10V to 4–20mA) with exceptional 16-bit resolution. Its galvanic isolation architecture prevents ground loops in electrically noisy environments, while integrated HART 7 protocol support enables bidirectional communication with smart field devices. The ABB AI03 features hot-swap capability for maintenance without system shutdown, making it ideal for continuous process industries where measurement reliability directly impacts operational efficiency and safety.
Core Advantages and Technical Highlights
ABB AI03 delivers uncompromising precision and flexibility:
Measurement Excellence: With ±0.05% baseline accuracy and 16-bit resolution, the ABB AI03 maintains signal integrity even in electromagnetically harsh environments. Its >120 dB common-mode rejection eliminates noise from VFDs and power lines, ensuring stable readings in steel mills and substations.
Intelligent Diagnostics: Continuous channel monitoring detects open circuits, short circuits, and out-of-range conditions. HART digital communication enables predictive maintenance by accessing device variables (e.g., sensor drift, temperature compensation) without interrupting analog signals. The ABB AI03 logs diagnostic data timestamped to 1ms resolution for forensic analysis.
Universal Signal Handling: Auto-ranging capability accepts any industrial signal (voltage/current) without hardware changes. Each channel independently configures via Control Builder software – a single ABB AI03 can simultaneously process thermocouples, RTDs, and 4–20mA transmitters.
Robust Construction: Operating at -25°C to +70°C with 95% non-condensing humidity tolerance, the module withstands vibration (5g @ 10–150Hz) and electrical transients (IEC 61000-4). Spring-clamp terminals maintain connection integrity in high-vibration applications like compressor stations.
Engineering Efficiency: Automatic sensor calibration and pre-configured templates in Control Builder reduce commissioning time by 60%. Module replacement triggers automatic configuration restore via K-bus.
Typical Application Scenarios
The ABB AI03 excels in precision measurement applications:
In chemical processing plants, the ABB AI03 monitors reactor temperature profiles using multipoint thermocouple arrays. Its channel-to-channel isolation prevents cross-talk when measuring explosive atmospheres (ATEX Zone 1), while HART communication validates sensor calibration during batch cycles.
For power generation facilities, the module interfaces with turbine vibration sensors (4–20mA) and generator winding RTDs. The ABB AI03‘s ±0.05% accuracy enables precise efficiency calculations, and its >120 dB noise immunity ensures stable readings near 10kV switchgear.
In food & beverage production, eight differential channels on a single ABB AI03 monitor CIP (Clean-in-Place) systems – tracking pressure, conductivity, and temperature simultaneously. Automatic sensor fault detection prevents contamination events by triggering alarms for failing probes.

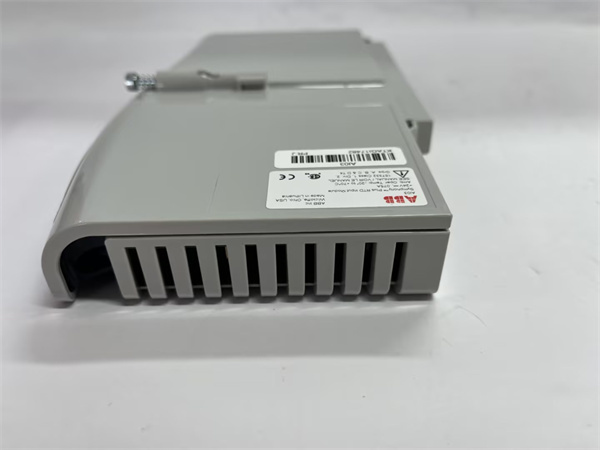

ABB AI03
Related Model Recommendations
AO02: Analog output counterpart to AI03 for closed-loop control systems.
AI01: High-speed analog input (1ms) for dynamic processes complementing AI03.
PM865: AC800M CPU; processes AI03 measurements for advanced control.
TA521: Thermocouple input module; extends AI03‘s temperature range.
CI854: PROFIBUS interface; networks AI03 data to SCADA systems.
SD822: Digital input module; provides interlock signals for AI03-monitored equipment.
ABB 3BSE008514R1: Signal conditioner for exotic sensors feeding AI03.
TB811: Terminal base unit for simplified AI03 field wiring.
Installation, Commissioning and Maintenance Instructions
Installation Preparation:
Verify DIN rail mounting surface flatness (±0.5mm/m). Use shielded twisted-pair cables (Belden 8761 recommended) with shields grounded at one end. Maintain 10cm separation from power cables. Ensure ambient temperature ≤70°C and humidity <95% non-condensing. Disconnect power before module insertion.
Maintenance Suggestions:
Perform annual calibration verification using Control Builder’s loop test function. Clean terminal blocks quarterly with CO₂ blasting. Monitor HART device variables for predictive maintenance. Replace ABB AI03 if diagnostic LED shows persistent red. Always use ABB-certified replacements to maintain measurement integrity and safety certifications.
Service and Guarantee Commitment
ABB guarantees the AI03 for 36 months against material and workmanship defects. Our global support network provides 24/7 technical assistance through ABB’s Control Builder HelpDesk. All modules undergo 72-hour burn-in testing with full-range signal validation. Calibration certificates traceable to NIST standards are available. Extended lifecycle management ensures spare availability for 15+ years. Firmware updates maintain compatibility with evolving HART protocols at no cost.
