Description
Key Technical Specifications
- Model Number: ABB AFC094AE02
- Manufacturer: ABB
- Compatible Drive Series: ABB ACS880 variable frequency drives (frame sizes R2-R8)
- Control Function: Motor speed/torque regulation, I/O processing, drive diagnostics
- Digital I/O: 8 configurable inputs, 6 configurable outputs (dry contact)
- Analog I/O: 2 analog inputs (0-10V DC/4-20mA), 1 analog output (0-10V DC/4-20mA)
- Communication Protocols: Modbus RTU, Profinet, Ethernet/IP (via integrated ports)
- Processor: 32-bit ARM Cortex-A9 (400 MHz)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Isolation: 250V AC (I/O circuits to power circuits, 1-minute withstand)
- Power Supply: 5V DC / 12V DC (from drive’s internal power supply)
- Power Consumption: 12W (max load)
- Mounting: Drive internal backplane (plug-in module)
- Dimensions: 245mm x 160mm x 35mm
- Protection Features: ESD protection (±15kV air), overvoltage protection for I/O circuits
- Firmware Compatibility: ACS880 firmware ≥5.1

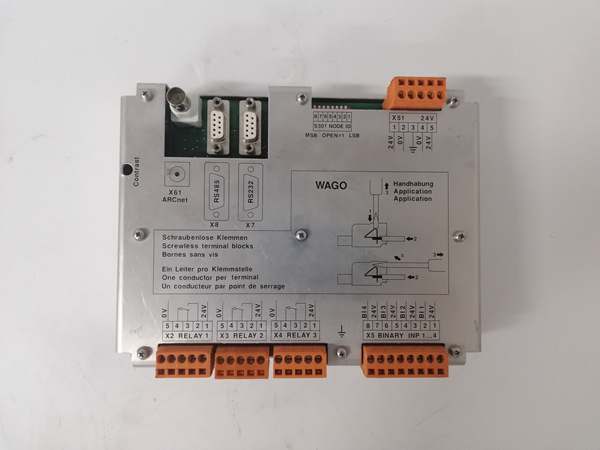

ABB AFC094AE02
Field Application & Problem Solved
In industrial motor control—pumps, fans, conveyors, and compressors—ABB ACS880 drives are relied on for precise speed regulation and energy efficiency. The challenge? The drive’s main control board (the “brain”) is prone to failure from electrical transients, thermal stress, or firmware incompatibility with updated systems. Failed control boards cause drives to shut down completely or operate erratically (e.g., unexpected speed changes, unresponsive commands), leading to production downtime. Legacy replacement boards lack modern communication protocols (e.g., Profinet), while third-party alternatives compromise drive performance and safety. The ABB AFC094AE02 solves these issues as the genuine OEM control board for ACS880 drives, ensuring seamless compatibility, robust communication, and full drive functionality.
You’ll typically find this board in applications like controlling pump speed in wastewater treatment plants, regulating fan motors in industrial HVAC systems, or adjusting conveyor belt speed in automotive assembly lines. It’s a critical component in heavy-duty applications (e.g., mining conveyors, steel mill rollers), where consistent control logic prevents equipment damage. In smart factories, it enables integration with industrial IoT (IIoT) systems via Profinet/Ethernet/IP, supporting remote monitoring and control. It also excels in retrofits of older ACS880 drives, upgrading control capabilities and communication protocols without replacing the entire drive.
Its core value is reliability and connectivity in critical motor control. As an OEM part, it works seamlessly with ACS880 firmware and accessories (e.g., safety modules), eliminating compatibility risks. The 32-bit ARM processor delivers fast logic processing, ensuring real-time motor control and responsive I/O handling. Modern communication protocols enable integration with modern control systems, while built-in protection features extend service life in harsh industrial environments. For operators, this means minimal unplanned downtime, optimized motor performance, and simplified system integration—critical in 24/7 automated environments.
Installation & Maintenance Pitfalls (Expert Tips)
- Firmware Compatibility Check (Mismatch = Drive Lockout): Rookies often install the board in ACS880 drives with outdated firmware (≤5.0), triggering “BOARD INCOMPATIBLE” faults. The AFC094AE02 requires firmware ≥5.1. Use ABB’s DriveWindow Light software to check the drive’s firmware version before installation. Update the drive firmware via Ethernet or serial port if needed—never force the board into a drive with obsolete firmware.
- Static Discharge (ESD = Instant Board Failure): The board’s sensitive electronics (processor, communication chips) are vulnerable to electrostatic discharge, but rookies often handle it without ESD protection. Even a small static shock can fry critical components. Always wear an ESD wristband grounded to the drive chassis when handling the board. Store it in its anti-static bag until installation, and avoid touching gold contacts or component pins.
- Backplane Connection (Partial Insertion = Intermittent Faults): The board plugs into the ACS880’s internal backplane, but rookies often don’t seat it fully—creating partial electrical connections. This leads to random drive shutdowns or I/O signal drops. Align the board’s edge connector with the backplane slot, apply even pressure until it clicks, and secure with locking screws. Tug gently to verify it’s seated; if it moves, reinsert and confirm with a visual check of the connector.
- Configuration Backup (Skipping = Hours of Reconfiguration): When replacing a faulty board, rookies often don’t back up the old board’s configuration. The new board comes with default settings, requiring manual reconfiguration of I/O maps, speed setpoints, and communication parameters. Use DriveWindow Light to back up the old board’s configuration to a USB drive. After installing the new board, restore the configuration directly—this ensures the drive operates exactly as before, avoiding costly downtime.

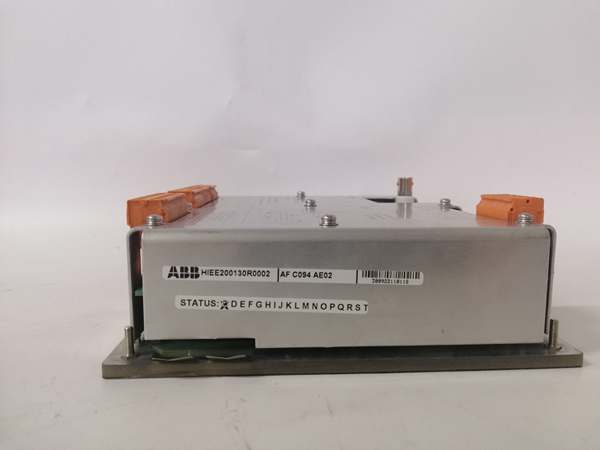

ABB AFC094AE02
Technical Deep Dive & Overview
The ABB AFC094AE02 is the main control and logic board for ABB’s ACS880 variable frequency drives, serving as the drive’s central processing unit. Its core is a 400 MHz 32-bit ARM Cortex-A9 processor, optimized for real-time motor control algorithms—including vector control, scalar control, and torque regulation. The processor executes drive logic at 1ms intervals, ensuring precise motor speed and torque control even under dynamic load changes.
The board’s I/O section integrates configurable digital and analog channels to interface with field devices: start/stop buttons (digital inputs), contactors (digital outputs), speed reference potentiometers (analog inputs), and speed monitors (analog outputs). Analog circuits use 12-bit ADCs and DACs for accurate signal conversion, with built-in filtering to reduce noise from industrial environments.
Communication capabilities are a key design focus: integrated Profinet, Ethernet/IP, and Modbus RTU ports enable seamless integration with PLCs, SCADA systems, and IIoT platforms. The board’s communication processor handles protocol translation, offloading the main CPU and ensuring low-latency data transfer. Firmware is upgradeable via Ethernet, allowing access to new features and bug fixes without physical board replacement.
Communication between the AFC094AE02 and the drive’s power stage (inverter module) occurs via a dedicated optical fiber link. This link provides electrical isolation between low-voltage control circuits and high-voltage power circuits, preventing ground loops and protecting the board from voltage transients. It also ensures fast, noise-free transmission of PWM (Pulse-Width Modulation) signals to the inverter’s IGBTs, enabling smooth motor operation.
Built for industrial ruggedness, the board features a conformal coating to protect against dust, moisture, and chemical contaminants. The edge connector is gold-plated for corrosion resistance and reliable electrical contact. ESD and overvoltage protection circuits shield sensitive components from harsh industrial conditions. Its plug-in design simplifies replacement, allowing technicians to swap boards in minutes without rewiring. As an OEM component, it’s fully validated by ABB to meet ACS880 performance and safety standards, ensuring compliance with IEC 61800 for adjustable speed drives.
