Description
Detailed Parameter Table for ABB 7625013-S
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB 7625013-S |
| Manufacturer | ABB |
| Product category | Signal Transmission Unit Module |
| Operating Voltage | 24 V DC |
| Processor | 400 MHz ARM9 32-bit CPU |
| Memory | 64 MB DDR2 RAM, 128 MB microSD card (expandable) |
| Communication Interfaces | 2 × 10/100 Mbit/s Ethernet (integrated switch), USB device interface, I/O interface |
| Real-Time Clock | Battery-backed |
| UPS Function | 1-second integrated UPS power supply |
| Operating Temperature Range | -40°C to 85°C |
| Storage Temperature Range | -55°C to 95°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Class | IP67 |
| Dimensions | 22.5 mm × 30 mm × 11 mm |
| Weight | 35 g |
| Certifications | CE, UL, cUL, RoHS compliant |

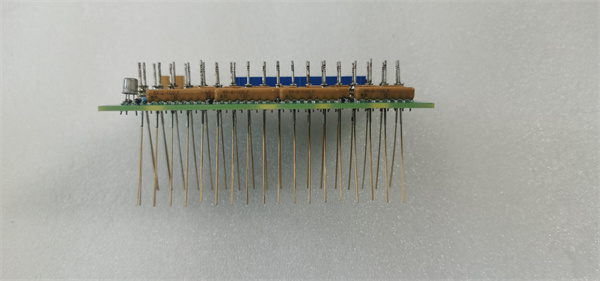

ABB 7625013-S
Product Introduction
The ABB 7625013-S is a high-performance signal transmission unit module designed for industrial automation environments. It is part of the ABB Procontrol P13 series and is used to convert, transmit, and process signals and data from various devices such as sensors and actuators.
Core Advantages and Technical Highlights
-
High-Speed Signal Processing: The module features a 400 MHz ARM9 32-bit processor, ensuring rapid processing of complex signal transmission tasks.
-
Robust Design: The module is designed to withstand harsh industrial conditions, with a wide operating temperature range and IP67 protection rating.
-
Flexible Communication: Supports multiple communication protocols, including Profinet, EtherNet/IP, Modbus TCP, and OPC UA, ensuring seamless integration with various industrial systems.
-
Compact Size: With dimensions of 22.5 mm × 30 mm × 11 mm and a weight of 35 g, the module is easy to install and maintain.
-
Integrated UPS: Features a 1-second integrated UPS power supply to enhance system reliability.

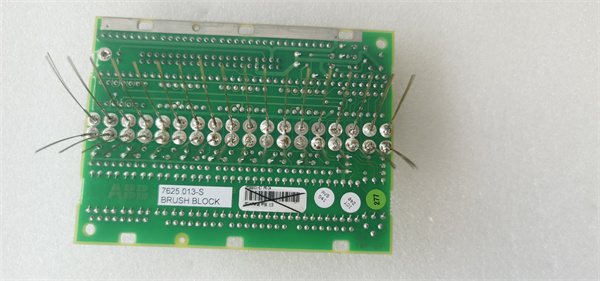

ABB 7625013-S
Typical Application Scenarios
The ABB 7625013-S is widely used in various industrial applications, including:
-
Mechanical Manufacturing: Efficiently handles signal transmission between sensors and actuators to ensure stable and efficient production processes.
-
Petrochemical and Energy Industry: Ensures high reliability and real-time performance in harsh working environments.
-
Water Conservancy, Environmental Protection, and Power Industry: Improves the efficiency and accuracy of data transmission and optimizes resource allocation.
-
Building Automation: Used in HVAC systems, lighting management, and security systems.
Related Model Recommendations
-
ABB 70EB02C-ES: A digital input module with similar specifications.
-
ABB 70EA02A-ES: An analog input module for additional control applications.
-
ABB 70EA02C-ES: A module with enhanced features and higher performance.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB 7625013-S, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-40°C to 85°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ABB 7625013-S. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The ABB 7625013-S is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
