Description
Product Core Brief

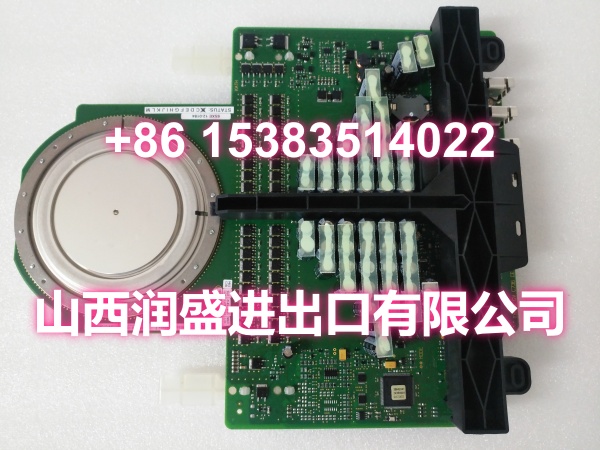

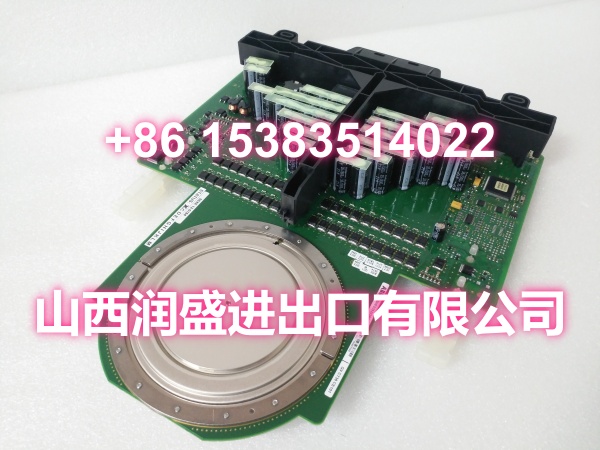

- Model: 5SHY4045L0006 (3BHB030310R0001)
- Brand: ABB
- Series: 5SHY Series IGCT
- Core Function: High-power integrated gate commutated thyristor (IGCT) module for medium-voltage drive systems and power conversion applications, enabling precise switching control of high current and voltage loads.
- Product Type: IGCT Power Module
- Key Specs: High current rating | Medium-voltage blocking capability | Low conduction loss | Fast switching response
- Condition: New Surplus
Key Technical Specifications
- Model Number: 5SHY4045L0006 / 3BHB030310R0001
- Product Type: IGCT (Integrated Gate Commutated Thyristor) Power Module
- Brand: ABB
- Origin: Switzerland
- Function: High-power switching and power conversion in medium-voltage drive systems
- Application: Medium-voltage VFDs, power converters, industrial drives, grid-tied systems
- Communication: Interfaces with ABB control boards (PMI, GVC, etc.) for gate triggering and status feedback
- Operating Temperature: -25°C to +85°C
- Storage Temperature: -40°C to +125°C
- Mounting: Flange/bolt mounting for heatsink integration
- Certification: IEC 60747-6, UL 1557, CSA C22.2
Product Introduction (No Fluff)
The ABB 5SHY4045L0006 (3BHB030310R0001) is an IGCT power module designed for medium-voltage drive systems and high-power conversion applications. IGCT technology represents an evolution of GTO thyristors, offering lower conduction losses, faster switching, and higher reliability compared to traditional thyristor designs.
This module serves as the core switching element in ABB’s medium-voltage frequency converter systems (such as ACS6000 and ACS5000 series), where it handles the critical task of converting and controlling electrical power for large industrial motors. The IGCT’s integrated gate driver design eliminates the need for external snubber circuits, simplifying system architecture while maintaining robust performance under demanding load conditions.
In practical applications, you’ll find this module in mining conveyors, rolling mills, marine propulsion systems, wind power converters, and other heavy industrial installations where reliable high-power switching is essential to continuous operation. Its low thermal resistance and ceramic packaging ensure stable performance even in harsh environments with temperature fluctuations and vibration.
QA & Testing SOP (Dynamic & Transparent)
IGCT modules are the heart of medium-voltage drive systems—failure here means total system downtime. Here’s our verification process:
- Visual & Anti-Counterfeit Inspection: We examine the module housing for cracks, verify ABB branding and part markings, and check for signs of previous installation (screw marks, thermal paste residue). Counterfeit modules may have incorrect silkscreen fonts or misaligned labels.
- Terminal & Pin Inspection: All power terminals and gate connector pins are inspected for corrosion, pitting, or mechanical damage. Damaged terminals cause high-resistance connections that lead to localized heating and premature failure.
- Gate Driver Circuit Test: The integrated gate driver is tested for proper triggering response and gate current delivery. A faulty gate driver will prevent the IGCT from switching correctly, causing drive faults or module destruction.
- Blocking Voltage Test: The module is tested for proper forward and reverse blocking capability at rated voltage. A module with compromised blocking voltage will fail catastrophically when energized in a medium-voltage system.
- Thermal Interface Inspection: The mounting flange surface is checked for flatness and surface quality. Warped or damaged flanges create air gaps with the heatsink, drastically increasing thermal resistance and causing overheating during operation.
- Anti-Static Packaging: After passing all tests, the module is sealed in ESD-safe packaging with desiccant to prevent moisture absorption and electrostatic damage during transit.
Installation Pitfalls & Guide (Engineer to Engineer)
Installing an IGCT module in a medium-voltage drive cabinet is not like swapping a standard I/O card—one mistake can destroy the module or cause a catastrophic arc flash event.
❗ Thermal Interface is Critical: The IGCT module must be mounted to an ABB-approved heatsink with proper thermal compound. Even a 0.1mm air gap between the module flange and heatsink can increase thermal resistance by 30%, leading to junction overheating. Apply thermal grease evenly at 0.1–0.2mm thickness—too much creates insulation, too little leaves air gaps.
❗ Torque Specifications Matter: Power terminal screws must be tightened to the specified torque (typically 8 N·m for M8 terminals). Over-torquing cracks the ceramic housing; under-torquing creates high-resistance joints that overheat under load. Always use a calibrated torque wrench.
❗ Gate Wiring Integrity: The gate trigger connections must be secure and properly shielded. Loose or noisy gate signals cause misfiring, which can result in shoot-through currents that destroy the module instantly. Verify gate wiring before applying main power.
❗ Discharge Time: Medium-voltage drive systems store significant energy in DC link capacitors. Always wait at least 10 minutes after disconnecting power before handling the module—residual charge can cause severe electric shock.
❗ Heatsink Compatibility: Never mount an IGCT module on a generic or undersized heatsink. The heatsink must meet ABB’s minimum cooling capacity specifications (typically 1.5 kW or higher depending on system configuration). Inadequate cooling is the leading cause of premature IGCT failure.
4-Step Replacement Guide:
- Pre-Install: Disconnect all power sources, apply LOTO, and wait the full discharge time (minimum 10 minutes). Verify zero voltage at all terminals with a multimeter. Photograph existing wiring and module orientation for reference.
- Removal: Disconnect gate wiring first, then loosen and remove power terminal connections. Unbolt the module from the heatsink and carefully lift it out—avoid tilting or dropping.
- Install: Clean the heatsink surface thoroughly. Apply a thin, even layer of thermal compound to the new module’s flange. Position the module on the heatsink, align bolt holes, and tighten mounting bolts in a cross-pattern to the specified torque. Reconnect power terminals to specified torque, then reconnect gate wiring.
- Power-On Test: Restore power gradually. Monitor gate trigger signals for proper waveform. Run the drive at low speed first, monitoring module temperature with an infrared thermometer. Verify normal operation before returning to full load.
Technical FAQ
What’s the difference between 5SHY4045L0006 and 3BHB030310R0001? These are two designation systems for the same product. 5SHY4045L0006 is ABB’s semiconductor product series number, while 3BHB030310R0001 is ABB’s internal order/part number. They refer to the identical IGCT module.
What systems is this module compatible with? The 5SHY4045L0006 is designed for ABB medium-voltage drive systems, particularly the ACS6000 and ACS5000 series. It interfaces with ABB control boards such as PMI and GVC units. Verify your specific drive model and control board compatibility before ordering.
Can this module be used in non-ABB systems? The 5SHY4045L0006 is engineered for ABB’s drive architecture. While the IGCT device itself follows industry-standard electrical characteristics, integration into non-ABB systems requires careful verification of gate driver compatibility, mechanical mounting dimensions, thermal management, and control signal protocols. Consult your system integrator before attempting cross-brand installation.
What’s the warranty on surplus stock? We provide a 12-month warranty. Since this is new surplus—never commissioned in the field—you’re receiving a module that hasn’t accumulated operational stress or thermal cycling. The warranty covers manufacturing defects and DOA failures.
What industries commonly use this module? You’ll find this IGCT module in mining (conveyor drives, shovel drives), metals (rolling mills), marine (propulsion systems), power generation (wind turbine converters), and oil & gas (compressor drives)—anywhere medium-voltage, high-power motor control is required.
