ABB 5SHY4045L0001 3BHB018162R0001 | 4500V 4000A Symmetric IGCT Module

Description

Product Introduction

The ABB 5SHY4045L0001 (3BHB018162R0001) is a Symmetric IGCT​ module designed for extreme industrial power conversion. Unlike standard asymmetric IGCTs, this “Symmetric” variant blocks high voltage (4500V) in both forward and reverse directions, eliminating the need for freewheeling diodes in four-quadrant (regenerative) drives.

This module is the core power device in ABB ACS6000​ medium-voltage drive systems, particularly in applications like steel mill reversing stands, mine hoists, and hydro turbine starters. It utilizes a Press-Pack (Disc)​ housing for direct double-sided cooling and solder-free, high-reliability connections. Switching speeds are in the microsecond range (≤6µs turn-off), enabling high-frequency operation with low losses (~1.45V drop) .

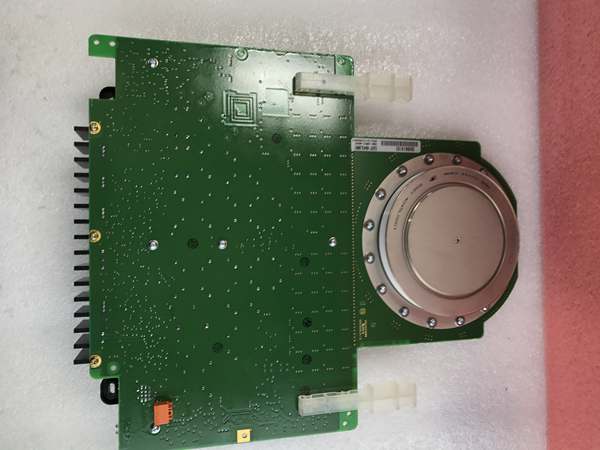

ABB 5SHY4045L0001 3BHB018162R0001

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification:​ Verify the laser-marked 5SHY4045L0001 on the ceramic disc matches the label 3BHB018162R0001. Check the flatness of the Press-Pack surfaces; any warping >0.05mm ruins thermal contact.
2. Dynamic Parameter Test:​ Use a semiconductor tester (e.g., ABB SCA 600 or equivalent). Verify dV/dt​ and di/dt​ capabilities. A symmetric device must pass reverseblocking tests equal to forward—common failure point in counterfeits.
3. Thermal Check:​ Before installation, ensure the water cooling plates are clean. Pressure-test the cooling loop at 1.5x operating pressure; micro-leaks cause creepage faults on the 4.5kV terminals.
4. Gate Integrity:​ Check gate-cathode impedance. Low resistance here means the chip is cracked—installing it will blow the GVC750 driver instantly.
5. Torque Validation:​ This is Press-Pack tech. You must​ use a calibrated torque wrench (typical 18–25 kN axial force). Under-torquing causes local hot spots; over-torquing shatters the ceramic.

Replacement Pitfall Guide

❗ Symmetric vs Asymmetric:​ This unit (L0001) is Symmetric. Do NOT​ replace it with an Asymmetric IGCT (e.g., 5SHY4045L0006) in 4-quadrant drives. The lack of reverse blocking capability will cause immediate reverse breakdown and explosion .

❗ Clamping Pressure:​ These are not screwed-in modules; they rely on mechanical pressure. If the cabinet’s spring pack is fatigued (lost tension), the new module will arc internally. Always check spring height specs before inserting.

❗ Water Quality:​ Requires deionized water (conductivity < 0.5 µS/cm). Using tap water leaves mineral deposits, insulating the cooling channels and causing thermal runaway within weeks.

❗ Gate Driver Sync:​ In parallel/series strings, timing mismatch >0.5µs causes current imbalance. If replacing one unit, verify the gate fiber sync via DriveWindow afterwards .

❗ ESD & Handling:​ The gate pins are sensitive. Discharge to the cabinet before handling, and never​ touch the ceramic disc with bare fingers (oil causes thermal hotspots).

Keep these in mind and you’ll cut 90% of rework time.

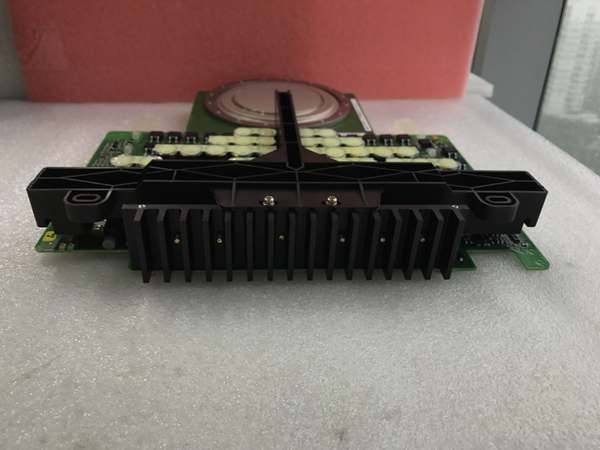

ABB 5SHY4045L0001 3BHB018162R0001

Compatibility Matrix & Benchmarks

• 5SHY4045L0001 → 5SHY4045L0006: Incompatible​ — L0006 is Asymmetric (Lower reverse blocking); dangerous in regen drives.
• 5SHY4045L0001 → ABB ACS6000 INU: Direct​ — Plugs into phase-leg clamps (S-093H/S-123H housings).
• 5SHY4045L0001 → GVC750BE101: Direct​ — Requires this specific gate driver for 4.5kV switching.
• 5SHY4045L0001 → Standard IGBT: Incompatible​ — Totally different gate drive requirements and press-pack vs. soldered mounting.
• Turn-off Time:​ ≤ 6 µs (vs. ~25 µs for old GTO thyristors)
• Efficiency:​ ~98% (Regenerative mode, typical)
• Short Circuit Response:​ < 2.5 µs (Built-in detection)
