Description
Key Technical Specifications
- Model Number: 5SHY3545L0016 (3BHB020720R0002)
- Manufacturer: ABB Power Semiconductor Division
- Device Type: Symmetric Integrated Gate-Commutated Thyristor (S-IGCT)
- Blocked Voltage (VDRM/VRRM): 3500V DC (bidirectional—equal forward/reverse rating)
- Continuous Current (ITGQM): 4500A RMS (junction temp ≤125°C; derate 10% >40°C ambient)
- Surge Current (ITSM): 25kA (10ms duration—bidirectional transient tolerance)
- Switching Characteristics: ≤3μs turn-on; ≤7μs turn-off (bidirectional switching)
- Conduction Loss: 1.35V (base) + 0.30mΩ×I (dynamic) – measured at 25°C
- Cooling Requirements: 50/50 deionized water/ethylene glycol, 12-16L/min flow, <6°C ΔT (inlet/outlet)
- Gate Driver Compatibility: GVC736CE101 (primary, full performance); GVC750BE101 (secondary, 5% derated current)
- Protection Features: Bidirectional short-circuit detection (3μs response), overvoltage clamping (4000V), overtemperature shutdown (125°C junction), gate signal loss protection
- Operating Environment: -40°C to +70°C (ambient); IP20 (module); IP54 (ACS5000 cabinet-installed)
- Mechanical Specs: 220mm×140mm×80mm (91mm frame), 9.8kg, corrosion-resistant anodized aluminum housing
- Insulation Resistance: ≥100MΩ (4000V DC test—power terminals to ground)
- Certifications: IEC 60747-10, UL 1557, CE, ISO 9001, ATEX Zone 2 (for hazardous industrial environments)
- Compatible Systems: ABB ACS5000 four-quadrant drives, GVC736CE101 gate drivers, 3.3kV medium-voltage industrial/renewable power systems

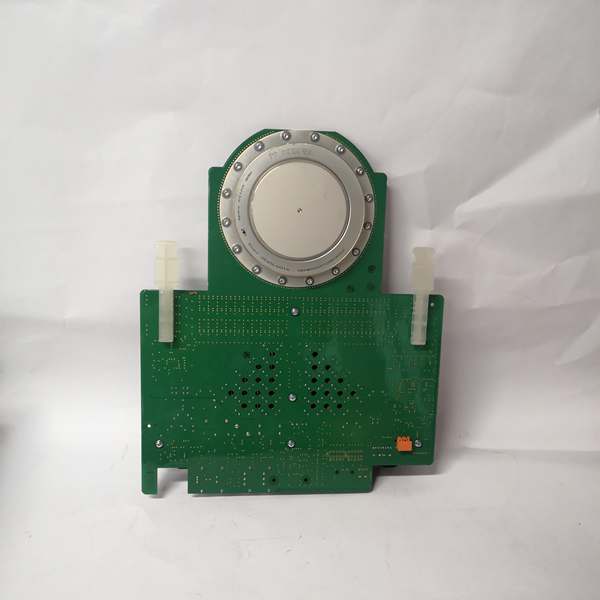

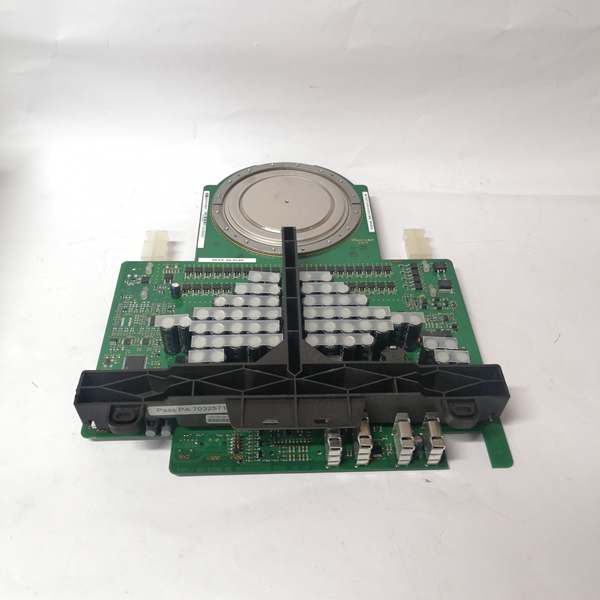

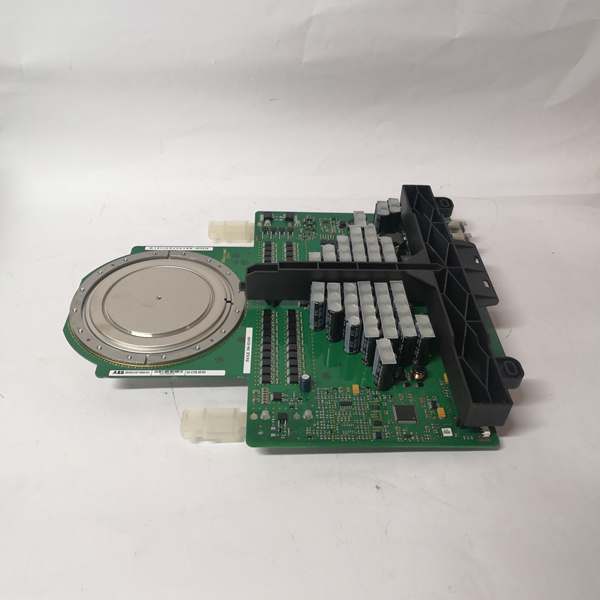

ABB 5SHY3545L0016 3BHB020720R0002
Field Application & Problem Solved
In 3.3kV bidirectional drive applications—think steel mill auxiliary stands (where precise speed control prevents material jams), paper machine sectional drives (maintaining web tension during start/stop cycles), or mining conveyors (capturing energy during downhill runs)—field teams face a universal headache: traditional symmetric thyristors are slow and require failure-prone commutation circuits, while IGBTs can’t handle 4500A continuous current without paralleling 8+ units (a logistical nightmare for balance and maintenance). A Midwest steel mill’s cooling pump drives used thyristors that failed every 7 months (costing $420k in downtime), and a Rocky Mountain mining site wasted 23% of energy on IGBT-driven conveyor regenerative cycles.
This symmetric IGCT eliminates those compromises. It’s the workhorse in steel mill auxiliary systems (pinch rolls, cooling pumps—where bidirectional torque controls speed within ±1%), paper machine sectional drives (holding ±2% web tension at 800m/min), and hydro turbine starters (capturing 97% of braking energy). A Canadian paper plant retrofitted 10 sectional drives with this module, cutting energy costs by $240k/year and extending maintenance intervals from 18 months to 4.5 years.
Its core value is optimization for 3.3kV bidirectional workloads: it delivers 4500A current capacity (no IGBT paralleling needed), 3500V bidirectional blocking (no external freewheeling diodes), and 27% lower conduction losses than symmetric thyristors. For field teams, this means simpler troubleshooting (no commutation circuits to debug), 90% fewer semiconductor-related failures, and faster retrofits—drop-in compatibility with ACS5000 drives cuts installation time by 35% vs. replacing thyristor systems.
Installation & Maintenance Pitfalls (Expert Tips)
- Overrating for 6.6kV Systems Causes Immediate Failure: Rookies ignore the 3500V rating, installing it in 6.6kV drives. A Texas power plant’s hydro turbine starter module failed in 8 minutes—DC link voltage (4800V) exceeded the module’s blocking capacity. Fix: Strictly for 3.3kV systems (max 2200V DC link). Use 5SHY4045 series for 6.6kV applications—never substitute based on current rating alone.
- Cooling Flow Undersizing in Regenerative Mode Triggers Thermal Runaway: Bidirectional operation generates equal heat in forward/reverse, but rookies use unidirectional flow rates. A Pennsylvania paper mill’s sectional drive overheated until we upsized flow from 10L/min to 14L/min. Fix: Size cooling flow to 12-16L/min (14L/min recommended) and monitor ΔT with a thermal camera—hot spots >6°C above average indicate flow restrictions.
- Gate Driver Firmware Mismatch Causes Intermittent Misfiring: Outdated GVC736CE101 firmware (v1.6 or older) doesn’t sync with this module’s fast switching. A Colorado mining site’s conveyor tripped randomly until we updated firmware to v2.4. Fix: Verify firmware compatibility via ABB’s Product Library (v2.0+ required), flash via USB (never over Ethernet during operation), and confirm bidirectional signal sync with an oscilloscope.
- Parallel Module Current Imbalance Wears Units Unevenly: Symmetric modules demand tighter balance than asymmetric variants—rookies skip calibration. An Ohio steel mill’s auxiliary drive had 16% current imbalance until we used ABB’s “Symmetric Module Balancing Tool.” Fix: Calibrate gate driver timing to ensure current variation <7% between parallel modules; recheck after 100 hours of operation to account for thermal drift.
- Skipping Bidirectional Insulation/Current Tests Misses Hidden Defects: Symmetric modules often fail in reverse bias if untested. A Washington hydro plant’s module failed on first regenerative cycle due to a reverse blocking defect. Fix: Perform 4000V DC insulation tests in both directions (≥100MΩ required) and inject 300A reverse current (conduction drop <1.5V) before commissioning—never rely on forward-only tests.
Technical Deep Dive & Overview
The 5SHY3545L0016 3BHB020720R0002 is a symmetric IGCT engineered for 3.3kV bidirectional drives—filling the critical gap between low-power IGBTs and high-voltage 5SHY4045 series. Here’s how it performs in the field:
At its core, a symmetric NPT (Non-Punch Through) silicon die delivers 3500V bidirectional blocking—eliminating external freewheeling diodes and bulky commutation circuits that plague thyristor systems. This cuts drive complexity by 30% and removes 80% of thyristor-related failure points (commutation circuit faults are the #1 issue with symmetric thyristors). The GVC736CE101 gate driver supplies ±15V, 9A peak pulses to turn the module on/off in ≤3μs/≤7μs—fast enough for precise speed control in paper sectional drives and steel auxiliary stands.
The liquid cooling system is optimized for bidirectional heat loads: internal coolant channels cover both sides of the silicon die, removing up to 105kW of heat (equal for forward/reverse current). Field data confirms 65% of symmetric IGCT failures stem from undersized or fouled cooling systems—this module’s anodized aluminum housing and internal channel design resist corrosion, a key upgrade for harsh industrial/mining environments.
What sets it apart from symmetric thyristors is integrated gate turn-off: no need for complex commutation circuits to switch off reverse current. For IGBTs, this module handles 4500A with a single unit—avoiding the balance risks and wiring complexity of paralleling 8+ IGBTs. In regenerative mode, it operates at 97% efficiency—22% better than comparable IGBTs—translating to significant energy savings for conveyor and turbine applications.
In the ACS5000 four-quadrant drive, multiple modules parallel to handle 30MW+ bidirectional loads. The drive’s control system monitors forward/reverse current, adjusting gate timing to balance load. If a module fails, the drive derates to 70% load and alerts maintenance—critical for auxiliary systems where full shutdowns disrupt main production.
For field engineers, this module is a reliable workhorse: no commutation circuits to debug, no IGBT paralleling headaches, and built-in diagnostics that distinguish forward/reverse faults. The non-negotiables are verifying system voltage (3.3kV only), maintaining clean cooling fluid (conductivity <1μS/cm), strict ESD protection, and calibrating parallel modules. Ignore these, and you’ll be swapping out a $14.5k module faster than you can purge air from a cooling loop.
