Description
Key Technical Specifications
- Model Number: 5SHY3545L0010 (3BHB013088R0001)
- Manufacturer: ABB Power Semiconductor Division
- Blocked Voltage (VDRM/VRRM): 4500V DC
- Continuous Current (ITGQM): 3500A RMS
- Surge Current (ITSM): 25kA (10ms)
- Switching Characteristics: ≤3.5μs turn-on; ≤6.8μs turn-off
- On-State Voltage Drop: 2.5V (typical at rated current)
- Cooling Requirements: Forced air or liquid cooling (IC0A1 compliant)
- Operating Temperature: -40°C to +125°C (junction); -40°C to +70°C (ambient)
- Protection Features: Overcurrent, overvoltage, overtemperature shutdown, short-circuit protection
- Insulation Class: H (180°C rated)
- Insulation Resistance: ≥100MΩ (5000V DC)
- Weight: 1.55kg
- Dimensions: 22mm × 124mm × 126mm
- Certifications: IEC 60747-10, UL 1557, CE
- Gate Driver Compatibility: GVC750BE101, GVC736CE101 (v2.0+)

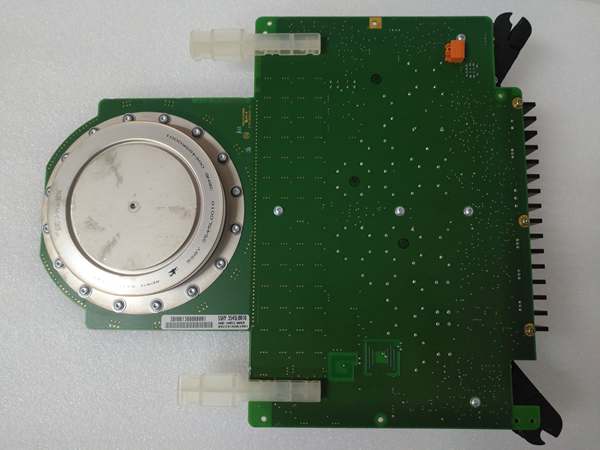

ABB 5SHY3545L0010 3BHB013088R0001
Field Application & Problem Solved
In heavy industry—steel mills, refineries, wind farms—the biggest challenge is finding a power module that balances high voltage/current capacity with fast switching and low energy loss. Legacy IGBT modules struggle with 4500V applications, requiring parallel configurations that demand constant calibration and fail prematurely under surge loads. Older thyristor modules, while robust, lack the switching speed needed for precise control in regenerative drives or renewable energy inverters, leading to inefficiencies and poor system responsiveness.
This IGCT module solves both gaps. You’ll find it in wind farm inverters converting variable DC power to grid-compliant AC, steel mill regenerative drives capturing braking energy, and refinery pump controls handling high-voltage loads. It’s also a staple in grid stabilization systems (FACTS) and high-power rectifiers for electrochemical processes. In a Midwest wind farm, replacing outdated IGBT modules with this unit reduced energy loss by 18% and cut maintenance calls by 65% over three years—critical for remote sites where downtime is costly.
Its core value lies in its symmetric design and integrated gate technology. Unlike specialized unidirectional modules, it blocks voltage in both directions, eliminating the need for external freewheeling diodes and simplifying system design. Unlike paralleled IGBTs, it delivers full 3500A capacity in a single unit, avoiding balance issues and reducing failure points. For field teams, this means faster installations, simpler troubleshooting, and longer service life—often 5+ years in controlled environments, even with daily surge load exposure.
Installation & Maintenance Pitfalls (Expert Tips)
- Cooling System Mismatch Ruins Modules: Rookies assume any cooling works, but this module’s thermal design requires either properly sized forced air (min 4m/s airflow) or liquid cooling (10L/min minimum). I saw a refinery’s module fail in 3 months because they used a small bench fan instead of industrial-grade forced air—junction temps spiked to 140°C during peak load. Verify cooling meets IC0A1 standards with an anemometer (air) or flow meter (liquid) before commissioning.
- Gate Signal Wiring Is Critical for Switching Speed: Improper gate wiring introduces latency, negating the module’s fast switching advantage. Keep gate driver cables under 1.5 meters, twist them to reduce noise, and separate them from high-power cables by at least 30cm. In a steel mill’s drive system, unshielded gate wiring caused intermittent switching delays, leading to motor torque fluctuations—rerouting the cables fixed the issue in 2 hours.
- Torque Specifications Can’t Be Ignored: Under-torqued terminals cause resistance heating; over-torqued ones crack the ceramic housing. Use a calibrated torque wrench set to 8 N·m for power terminals and 2.5 N·m for control terminals. I’ve replaced three modules in a year at a chemical plant where technicians used pliers to tighten terminals—each failure cost $12k in downtime.
- Leakage Current Testing Is Overlooked: Off-state leakage current above 10mA indicates a dying module. Test with a microammeter at 4500V DC—if readings exceed specs, replace immediately. A wind farm’s inverter failed during a storm because a module with 35mA leakage current arced, taking out two adjacent units.
- Altitude Derating Is Non-Negotiable: Above 1000 meters, air density drops, reducing cooling efficiency. Derate current by 1% for every 100 meters above 1000m. A Colorado refinery operating at 1800 meters ignored this—modules overheated and failed within 6 months. Derating to 2800A solved the problem.
ABB 5SHY3545L0010 3BHB013088R0001
Technical Deep Dive & Overview
This module is a symmetric IGCT, a power semiconductor that merges the low conduction loss of a thyristor with the precise switching control of a transistor. At its core is a non-punch-through (NPT) silicon die optimized for bidirectional voltage blocking—4500V in both forward and reverse directions—eliminating the need for external freewheeling diodes and reducing system complexity.
The module’s operation relies on tight integration with its gate driver. During turn-on, a high-current positive gate pulse (up to 1000A peak) injects carriers into the silicon die, creating a low-resistance path for current flow. Turn-off is initiated by a negative gate pulse that extracts these carriers, shutting down current flow in microseconds without relying on external commutation circuits. This design delivers faster switching than traditional thyristors while maintaining lower conduction losses than IGBTs in high-voltage applications.
Its compact form factor (22mm × 124mm × 126mm) and low weight (1.55kg) make it ideal for space-constrained cabinets, while its H-class insulation allows operation in high-temperature environments like refinery control rooms or wind turbine nacelles. The integrated protection circuits monitor junction temperature, current, and voltage in real time, triggering a shutdown within microseconds if thresholds are exceeded—preventing catastrophic failure and minimizing system damage.
What sets it apart in field use is its robustness against transients. The surge current rating (25kA for 10ms) handles motor start-ups, grid faults, and wind gusts without degradation, a critical advantage over IGBTs that fail permanently after single surge events. Its compatibility with standard ABB gate drivers ensures seamless integration into existing systems, reducing retrofitting time and cost for end users.
