ABB 5SHY3445L0009 | High-Power Switching for ACS6000 / HVDC

Description

Product Introduction

The ABB 5SHY3445L0009 is a high-power Asymmetric IGCT (Integrated Gate-Commutated Thyristor)​ module designed for demanding industrial power conversion. It is a core component in ABB ACS6000​ series medium-voltage drives, HVDC transmission, and large-scale renewable energy inverters.

Unlike Symmetric IGCTs, this 5SHY3445L0009​ is Asymmetric, meaning it blocks high voltage in the forward direction but relies on a free-wheeling diode for reverse voltage (typical in 3-level NPC inverter topologies). It utilizes a Press-Pack​ design for direct double-sided cooling. Turn-off times are typically under 6 µs with very low conduction losses (~1.5V drop), enabling high-efficiency operation at megawatt scales .

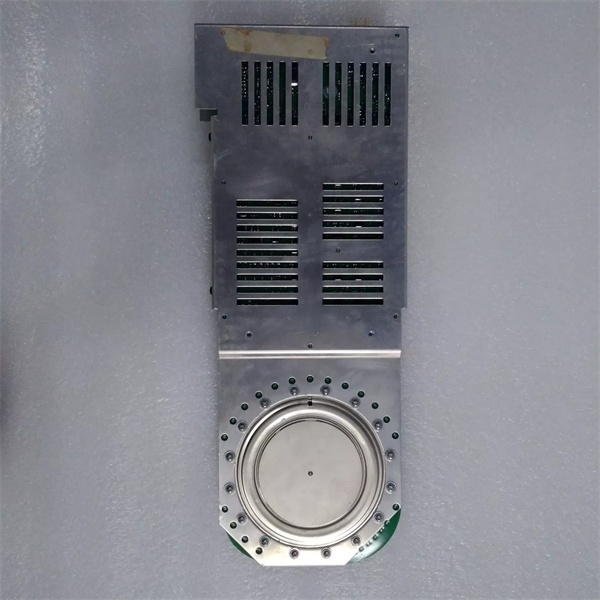

ABB 5SHY3445L0009

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification:​ Verify the laser-etched 5SHY3445L0009on the ceramic disc matches the order code. Inspect the flatness of the Press-Pack​ surfaces; any warp >0.05mm creates thermal hotspots. Check for shipping clamp marks.
2. Static Param Test:​ Use a semiconductor analyzer. Verify Vdrm​ (Forward Blocking) and Vt​ (On-State Voltage). A low Vt reading often indicates a micro-cracked chip—reject immediately.
3. Dynamic Switching Test:​ In a safe test rig, fire the gate. Measure dq/dt​ and tail current. Asymmetric devices must hold blocking voltage onlyin forward; reverse breakdown tests are done on the companion diode, not this IGCT.
4. Thermal Prep:​ Ensure the cooling channel interfaces (usually copper or AlSiC) are clean. Pressure-test the manifold separately; leaks here destroy the drive.
5. Torque Validation:​ This is Press-Pack tech. You must​ apply the specified Axial Clamping Force​ (kN range, e.g., 18-25 kN depending on stack design) using a calibrated hydraulic press/wrench. Under-force = arcing; Over-force = shattered ceramic.

Replacement Pitfall Guide

❗ Asymmetric vs Symmetric:​ The 5SHY3445L0009is Asymmetric. Do NOT​ use it as a direct drop-in for Symmetric​ IGCTs (e.g., 5SHY4045L0001) in 4-quadrant regenerative drives unless the schematic explicitly includes parallel free-wheeling diodes. Reverse voltage on this device causes catastrophic failure.

❗ Clamping Force (Critical):​ These are not bolt-in modules. They rely on mechanical pressure​ from the cabinet’s spring pack or hydraulic press. If the springs are fatigued (wrong height), the new IGCT will overheat at the center. Always check spring specs.

❗ Water Quality:​ Requires Deionized Water​ (Conductivity < 0.5 µS/cm). Using tap/plant water causes electrolysis in the cooling channels, leading to internal shorts within weeks.

❗ Gate Driver Match:​ This IGCT requires a specific gate unit (e.g., GVC750BE101). Mismatching the driver (e.g., using an old GUS) results in slow turn-off and device explosion due to high di/dt.

❗ ESD & Handling:​ The gate pins are sensitive. Discharge to the frame before handling. Never​ touch the ceramic disc with bare fingers (oil/salt causes thermal runaway hotspots).

Keep these in mind and you’ll cut 90% of rework time.

ABB 5SHY3445L0009

Compatibility Matrix & Benchmarks

• 5SHY3445L0009 → 5SHY4045L0006: Caution​ — L0006 is often Asymmetric too, but verify voltage rating (4.5kV vs 4.5kV) and current rating. Usually compatible in ACS6000 INU with parameter checks.
• 5SHY3445L0009 → ABB ACS6000 INU (S-093H/S-113H): Direct​ — Plugs into the phase-leg power stack clamps.
• 5SHY3445L0009 → 5SHY4045L0001 (Symmetric): Incompatible​ — Symmetric blocks reverse voltage; Asymmetric does not. Requires circuit redesign.
• Turn-off Loss:​ Significantly lower than GTO Thyristors (approx. 50% reduction)
• Efficiency:​ > 98% (System Level, typical)
• Switching Speed:​ 5-10x faster than conventional GTOs
