Description
Key Technical Specifications
- Model Number: 5SHX14H4502
- Manufacturer: ABB
- Device Type: Integrated Gate-Commutated Thyristor (IGCT)
- Operating Temperature Range: -25°C to +70°C
- Core Advantages: High-frequency switching capability, low conduction losses
- Application Compatibility: Industrial 变频器，servo drives, welding power supplies, pulse power systems
- Protection Features: Built-in overload resistance, reverse voltage protection
- Mounting: Industrial-standard compatible with 5SHX series mounting systems
- Weight: Industrial-grade compact design (typical for 5SHX series IGCT modules)
- Compliance: Meets industrial power semiconductor performance standards
- Switching Characteristic: Rapid response for start/stop/reverse operations
- Isolation: Industrial-grade insulation for high-voltage environments

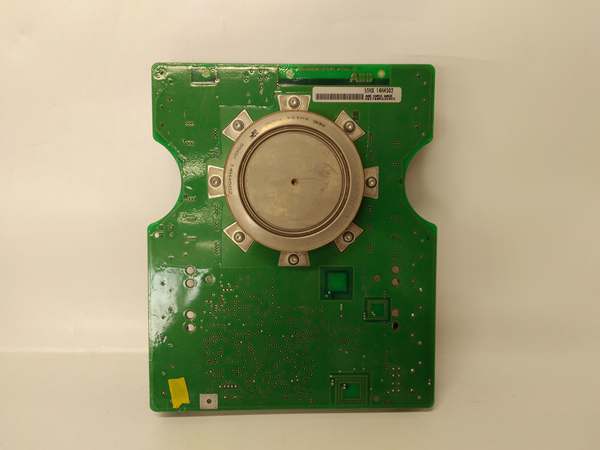

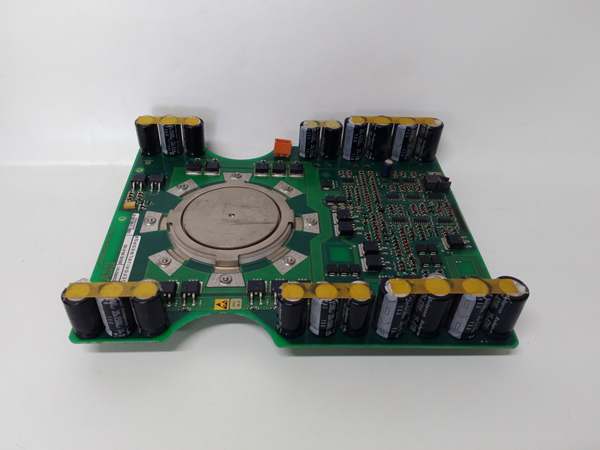

ABB 5SHX14H4502
Field Application & Problem Solved
In high-demand industrial and energy systems, the critical challenge is achieving fast, reliable power switching without excessive energy loss. Traditional power semiconductors either lack the response speed for dynamic applications or waste significant energy as heat, leading to inefficiency and premature failure. This IGCT module solves that by combining high-frequency switching with low power loss, filling the gap for applications that require both agility and durability.
You’ll commonly find it in industrial motor drives and servo systems, where rapid start, stop, and reverse operations are essential for production efficiency. It’s also a key component in renewable energy systems—wind and solar power converters—where it handles variable power flows with precision. In 轨道交通，it regulates power for electric locomotives and subways that require frequent braking and acceleration. Additionally, it’s used in welding equipment and pulse power applications like lasers, where fast current establishment and interruption are critical.
Its core value lies in balancing performance and reliability. For manufacturing plants, its fast switching response improves process control and reduces energy costs via low conduction losses. In 轨道交通，its rugged design withstands constant vibration and temperature fluctuations, minimizing maintenance downtime. For renewable energy operators, it ensures stable power conversion from variable sources to grid-compatible electricity, supporting higher integration of clean energy.
Installation & Maintenance Pitfalls (Expert Tips)
- Ignoring Switching Circuit Compatibility: Rookies often pair the module with mismatched drive circuits, ignoring its high-frequency requirements. This leads to erratic switching and increased wear. Always verify that the drive system’s frequency range matches the module’s capabilities—this prevents premature failure in dynamic applications like servo drives.
- Poor Thermal Management in Compact Spaces: The module generates heat during high-frequency switching, but technicians frequently install it in cramped enclosures without proper airflow. Ensure adequate ventilation or supplementary cooling (forced air) to maintain the -25°C to +70°C operating range. Overheating degrades the IGCT junction, cutting the module’s lifespan by up to 60% in continuous-use applications.
- Neglecting Terminal Connection Integrity: High-vibration environments (like locomotives or industrial machinery) can loosen power terminals over time. Use torque tools to secure connections to ABB’s recommended specifications, and recheck after the first week of operation. Loose terminals cause arcing, which damages contacts and leads to intermittent power loss.
- Skipping Pre-Operation Compatibility Checks: Technicians sometimes assume universal compatibility with 5SHX series systems, but older drives may lack the required control signals. Before installation, confirm that the drive’s gate control interface matches the module’s requirements. Mismatched signals result in failure to switch or incorrect operation, risking damage to both the module and connected equipment.
Technical Deep Dive & Overview
The ABB 5SHX14H4502 is a premium IGCT module engineered for high-performance power conversion applications. As part of ABB’s 5SHX series, it leverages integrated gate-commutated thyristor technology to deliver fast switching speeds and low power losses—key advantages over traditional thyristors and standard IGBTs in dynamic scenarios.
At its core, the module uses a gate-commutated design that allows precise control of large current flows, enabling rapid start, stop, and reverse operations critical for industrial drives and traction systems. The IGCT architecture combines the high current-handling capability of thyristors with the switching agility of modern semiconductors, making it ideal for applications that demand both power and precision.
Its rugged construction is tailored for harsh industrial environments, with an operating temperature range of -25°C to +70°C that withstands extreme conditions in 轨道交通，manufacturing, and renewable energy installations. The module’s built-in protection features—overload resistance and reverse voltage protection—guard against common fault scenarios, reducing the risk of cascading system damage.
Integration is simplified through compatibility with standard 5SHX series mounting systems and industrial drive interfaces. It communicates with control systems via gate signals, translating commands into precise power switching actions. Whether used in a welding power supply, wind turbine converter, or locomotive traction system, the module acts as a reliable bridge between control logic and high-power output, delivering efficiency and durability in demanding applications.
ABB 5SHX14H4502
