Description
Key Technical Specifications
- Model Number: ABB 3BHB003230R0101 5SHX1060H0001
- Manufacturer: ABB Power Electronics Division
- IGBT Rating: 1.7kV DC blocking voltage; 600A RMS continuous current (Tcase = 85°C)
- Power Dissipation: 1.2kW maximum (per module)
- Switching Frequency: Up to 10kHz (rated); 20kHz peak (derated)
- Integrated Components: 2 IGBT chips + 2 freewheeling diodes (half-bridge configuration)
- Isolation Rating: 4kV AC (baseplate to terminals)
- Operating Temperature: -40°C to +125°C (junction temp); -20°C to +85°C (case temp)
- Compatibility: ABB ACS6000/ACS8000 drives, custom high-power inverters (1MW+)
- Mechanical Design: Screw-mount baseplate (Cu/Al composite), 170mm × 140mm × 40mm dimensions
- Thermal Resistance: 0.04°C/W (junction to case)
- Certifications: IEC 60747-9, CE, UL 1557, RoHS 2.0, ATEX Zone 2
- Terminal Type: Copper busbar-compatible (M8 studs)

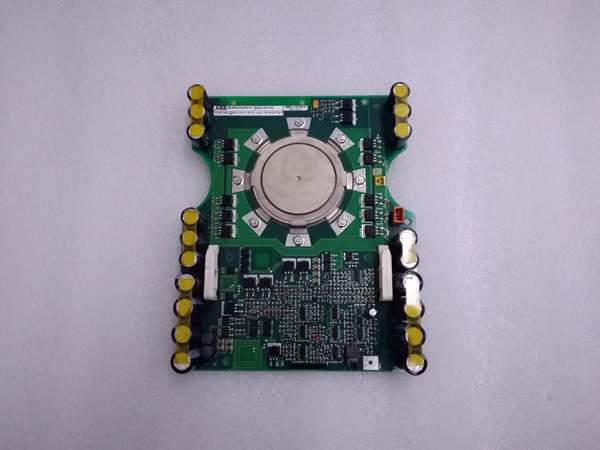

ABB 3BHB003230R0101 5SHX1060H0001
Field Application & Problem Solved
In high-power industrial applications—mining crushers, marine propulsion systems, steel mill rolling mills—IGBT modules fail most often due to thermal stress and underrating. A Western Australia mining operation lost $480k in 36 hours when a generic 1.2kV IGBT module in their 2MW crusher drive failed during a load spike, melting the module and damaging the drive cabinet. Legacy modules also suffer from poor thermal management: a Gulf Coast marine vessel’s propulsion drive overheated monthly, requiring 8-hour shutdowns to replace IGBTs that couldn’t dissipate continuous 500A loads.
You’ll find this module in ABB’s largest drives and custom power systems: 3MW conveyor drives in Wyoming coal mines, 5MW marine propulsion systems in Louisiana tugboats, and 10MW steel mill rolling mill drives in Ohio. Its core value is high power density plus thermal ruggedness. The 1.7kV/600A rating let the Australian mine replace 4 generic modules (and their external cooling systems) with 6 ABB units, eliminating load-spike failures. At the marine vessel, the module’s low thermal resistance (0.04°C/W) cut overheating incidents to zero, extending drive uptime from 92% to 99.7%.
Installation & Maintenance Pitfalls (Expert Tips)
- Mounting Torque Is Non-Negotiable (25N·m): Rookies under-torque the baseplate bolts, creating air gaps that block heat transfer. A Pennsylvania steel mill used 15N·m instead of 25N·m—modules hit 110°C junction temp and failed in 3 months. Use a calibrated torque wrench and verify with thermal imaging: case temp should stay <85°C at full load.
- Gate Driver Matching Prevents IGBT Destruction: Using incompatible gate drivers causes voltage spikes. A Texas marine yard paired this module with a generic driver—3 modules failed in 1 week due to 2.2kV gate transients. Use ABB’s recommended gate driver (e.g., 3BHB006468R0001) or match driver output impedance (10-20Ω) and voltage levels (±15V) per ABB’s datasheet.
- Static Discharge Kills—Handle with Grounded Wrist Straps: Unprotected handling damages IGBT gates. A North Carolina factory technician installed 8 modules without grounding—4 failed immediately due to ESD. Always ground yourself and use antistatic packaging; never touch gate terminals with bare hands.
- Thermal Paste Application—Thin & Uniform (0.2mm): Too much paste insulates; too little creates hot spots. A Colorado mining operation applied 1mm-thick paste—modules overheated and tripped the drive. Use ABB’s recommended thermal compound (3BSE030220R1) and a spreader to achieve a thin, even layer between the module and heat sink.

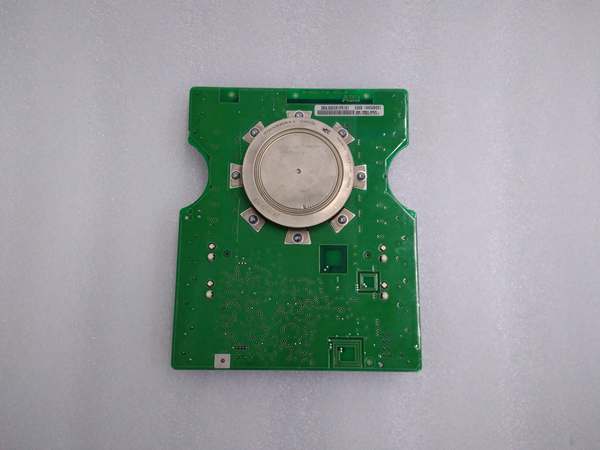

ABB 3BHB003230R0101 5SHX1060H0001
Technical Deep Dive & Overview
The 3BHB003230R0101 5SHX1060H0001 is a half-bridge IGBT power module engineered for high-power conversion in harsh industrial environments. At its core, two 1.7kV/600A IGBT chips (5SHX1060H0001) are arranged in a half-bridge configuration, paired with ultra-fast freewheeling diodes to handle inductive load currents. The IGBTs use ABB’s Trench-Gate Field-Stop (TFS) technology, which reduces on-state voltage (1.8V typ @ 600A) and switching losses—critical for efficiency in high-frequency drives.
Thermal management is a defining feature: the copper-aluminum composite baseplate maximizes heat transfer to the drive’s heat sink, while the module’s compact footprint (170mm × 140mm) enables high power density (3.5kW/cm²). The integrated freewheeling diodes use soft-recovery technology, minimizing voltage spikes during switching and extending IGBT life.
The module’s rugged design includes a hermetically sealed housing to resist dust, moisture, and chemical vapors—essential for mining and marine applications. Its 4kV AC isolation between the baseplate and terminals blocks ground loops and electromagnetic interference (EMI) from nearby motors or VFDs. For high-power systems where downtime costs $50k+ per hour, this module isn’t just a switching component—it’s a thermal and electrical workhorse that delivers reliable performance under the most demanding loads.
