Description
Product Introduction
The ABB 5SDF1045H0002 is a high-power IGBT (Insulated Gate Bipolar Transistor) module designed for the core power stacks of ABB ACS6000 medium-voltage drives, PCS6000 systems, VSC-HVDC (HVDC Light), and STATCOM installations.
Unlike the previously discussed 5SHY series (which are IGCTs), this 5SDF unit utilizes IGBT technology in a robust Press-Pack (disc-type) housing. It is engineered for 4.5kV blocking voltage and approx. 1000A continuous current. The module requires external water cooling (deionized) and is driven by specialized Gate Drive Units (GDUs, e.g., related to 5SDF-series drivers) to handle the strict and requirements of megawatt-level conversion.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Device Type | High-Voltage IGBT (HiPak/StakPak Style) |
| Model Code | 5SDF1045H0002 |
| Rated Voltage (VCES) | 4500 V (4.5 kV) |
| Rated Current (Ic) | ~1000 A (Continuous, case temp dependent) |
| Surge Current (ICSM) | > 2000 A – 30 kA (10ms pulse, verify with OEM datasheet) |
| On-State Volt. (VCEsat) | ≤ 2.5 V – 2.8 V (At rated current) |
| Switching Freq. | Up to 1 kHz (Typical operation) |
| Topology | Single Switch (Press-Pack, requires external FWD/Diode) |
| Cooling | Forced Liquid (Deionized Water/Glycol, ~8-12 L/min) |
| Mounting | Press-Pack (High Axial Clamping Force Required) |
| Isolation | High-voltage galv. isolation (kV rating verify with OEM datasheet) |

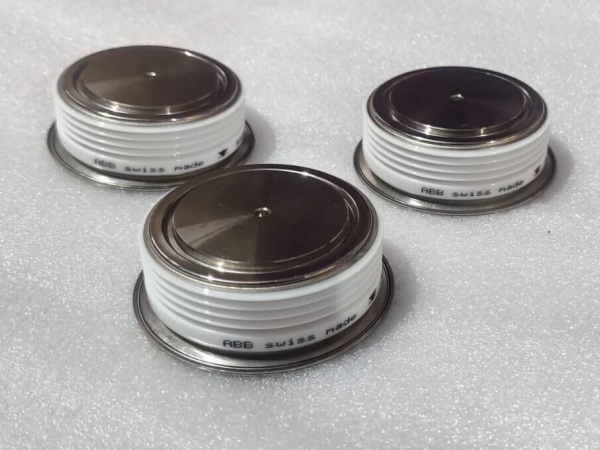

ABB 5SDF1045H0002
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Verify laser marking
5SDF1045H0002on the ceramic disc. Inspect the flatness of the Press-Pack surfaces (Anode/Cathode); any warp >0.05mm creates thermal hotspots. Check for shipping clamp residue. - Static Param Test: Use a semiconductor analyzer. Check Vces (Blocking) and Vce(sat). A Vce(sat) reading significantly lower than 1.5V often indicates a micro-cracked chip—reject to prevent explosion under load.
- Gate Integrity: Check Gate-Emitter impedance. Low resistance here means the gate oxide is punctured; installing it will blow the GDU (Gate Drive Unit) instantly.
- Thermal Prep: Ensure the cooling channel interfaces are clean (no old thermal paste on Press-Pack ends). Pressure-test the manifold separately.
- Torque/Force Validation: This is Press-Pack tech. You must apply the specified Axial Clamping Force (kN range) using a calibrated hydraulic press/wrench. Under-force = internal arcing; Over-force = shattered ceramic.
Replacement Pitfall Guide
❗ IGBT vs IGCT Confusion: The 5SDF1045H0002is an IGBT. Do NOT confuse it with 5SHY(IGCT) series. While both are Press-Pack and look similar, they require different Gate Drive Units (GDUs) and have different switching characteristics (IGBTs are voltage-driven/gated; IGCTs are current-triggered/latched). Mixing them destroys the stack.
❗ Clamping Force (Critical): These are not bolt-in modules. They rely on mechanical pressure from the cabinet’s spring pack or hydraulic press. If the springs are fatigued (wrong height/tension), the new IGBT will overheat at the center. Always verify spring specs/force.
❗ Water Quality: Requires Deionized Water (Conductivity < 0.5 – 5 µS/cm). Connecting plant tap water causes electrolysis in the cooling channels, leading to internal shorts within weeks.
❗ Free-Wheeling Diode (FWD): As an IGBT, this module typically handles switching, but the Reverse Voltage blocking is limited compared to Symmetric IGCTs. Ensure the companion Free-Wheeling Diode (e.g., 5SDF series diodes or specific press-pack diodes) is correctly installed in parallel; missing the diode causes reverse breakdown.
❗ Gate Driver Match: This IGBT requires a specific GDU (e.g., drives associated with 5SDF series). Mismatching the driver (e.g., using an old IGCT driver) results in slow turn-off and device explosion due to high and tail current.
Keep these in mind and you’ll cut 90% of rework time.
ABB 5SDF1045H0002
Compatibility Matrix & Benchmarks
- 5SDF1045H0002 → 5SHY4045L0001 (IGCT): Incompatible — Different semiconductor physics (IGBT vs IGCT), requires totally different Gate Drivers and circuit topology (IGCT usually includes monolithic diode function in Symmetric version).
- 5SDF1045H0002 → ABB ACS6000 INU (S-093H/S-113H): Direct Fit — Plugs into the phase-leg power stack clamps (as the switch element).
- 5SDF1045H0002 → Standard IGBT Module (EconoDUAL etc.): Incompatible — Press-Pack vs. Soldered/baseplate mounting; requires specific mechanical clamping structure.
- Switching Speed: < 10 µs (Turn-off, typical for High-Voltage IGBT)
- Efficiency: > 98% (System Level, typical)
- Isolation Test: 2500 V+ (Terminal to Case/Heatsink)
