Description
Key Technical Specifications
- Model Number: 57120001-FG (DSAO 130)
- Manufacturer: ABB Process Automation Division
- Output Channels: 16 independent, galvanically isolated channels
- Output Ranges: Configurable per channel: 0-20mA (sink/source), 4-20mA (sink/source), 0-10V
- Load Capacity: 500Ω max for current outputs, 10kΩ min for voltage outputs
- Power Supply: 24VDC ±10% (2.5W typical, 3.0W max current draw)
- Response Time: ≤1ms (0-100% step change)
- Accuracy: ±0.4% of full scale (25°C), ±0.6% over operating temperature range
- Resolution: 12 bits (4096 steps)
- Isolation Rating: 500VAC (channel-to-channel, channel-to-backplane, channel-to-power)
- Operating Temperature: 0°C to 55°C (ambient, derate above 50°C)
- Mounting Type: Advant OCS I/O rack (card-edge connector, 3U subrack)
- Diagnostic Features: Channel-level short-circuit detection, open-load monitoring, overcurrent protection, power supply monitoring, self-test capability
- Protection Class: IP20 (module), IP65 (with sealed terminal block)
- Weight: 0.45kg
- Dimensions: 324mm x 225mm x 18mm

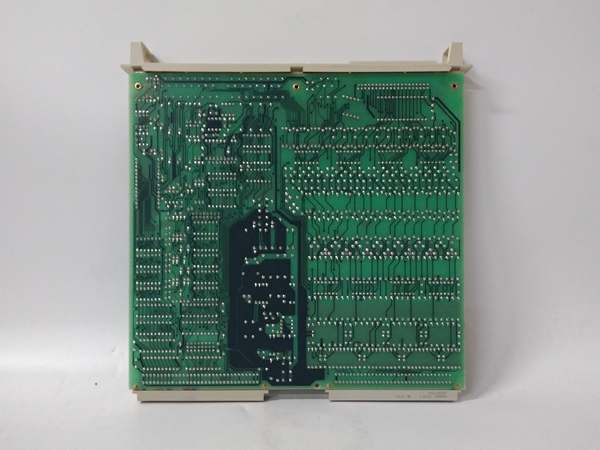

ABB 57120001-FGDSAO130
Field Application & Problem Solved
In process industries—refineries, chemical plants, power generation—the biggest control challenge is distributing precise analog control signals to multiple final control elements (valves, dampers, governors) while maintaining signal integrity in noisy environments. Legacy systems use separate 8-channel modules, increasing cabinet space, wiring complexity, and failure points. At a coal-fired power plant in Ohio, 4 separate 8-channel modules for turbine control required 8 slots, with 5 unplanned outages in a year due to module failures and wiring errors, costing $1.2M in downtime.
This module solves that bloat. You’ll find it in boiler control rooms regulating 16 fuel flow valves, chemical batch plants controlling reactor temperature via heating/cooling valves, and pulp mills adjusting paper machine speed governors. It’s the workhorse for Advant OCS-based DCS systems where space is tight and control precision is critical—its 16 channels replace 2 legacy 8-channel modules, cutting wiring by 50% and reducing failure points. In a Texas gas-fired plant, retrofitting with DSAO 130 reduced I/O cabinet footprint by 25% and improved turbine speed regulation accuracy from ±0.3% to ±0.1%.
Its core value is reliable control in high-electromagnetic interference (EMI) environments. Unlike generic analog output modules, it’s engineered for power plant EMI from generators, motors, and high-voltage switchgear. The galvanic isolation breaks ground loops that plague non-isolated modules, while the short-circuit protection prevents damage from wiring errors or failed actuators. For field teams, this means fewer false alarms, faster troubleshooting (diagnostics pinpoint issues in seconds), and confidence that valve positions and turbine speeds are controlled accurately—even during electrical transients. In a Canadian nuclear plant, this module’s diagnostics prevented a reactor shutdown by alerting to a failed steam flow control valve before it caused a process upset.
Installation & Maintenance Pitfalls (Expert Tips)
- Channel Configuration Must Match Actuator Type: Rookies often leave channels set to 0-20mA when connecting 4-20mA actuators, causing 20% of full-scale error. I saw this at a paper mill where a technician wired 4-20mA control valves to unconfigured channels—resulting in 3 hours of batch loss. Always use ABB Control Builder to set each channel’s output type (0-20mA/4-20mA/0-10V) before wiring. Verify with a loop calibrator: 4-20mA channels should output 4mA at 0% and 20mA at 100%.
- Load Resistance Limits Are Non-Negotiable: Connecting a current output to a load >500Ω causes signal degradation; connecting a voltage output to a load <10kΩ burns out the output driver. At a Pennsylvania refinery, a technician wired a 4-20mA channel to a 1000Ω damper actuator—resulting in erratic control and a 2-hour shutdown. Use a multimeter to measure load resistance before wiring: current channels need 250-500Ω; voltage channels need ≥10kΩ.
- Grounding Separates Noise from Signal: Improper grounding introduces EMI, causing jitter in analog outputs. Mount the I/O rack on a grounded steel chassis, connect the module’s safety ground to the rack ground, and keep output wiring 30cm away from power cables (especially generator stator cables). At a Midwest power plant, re-routing 4-20mA valve control wiring away from 480V motor cables eliminated 0.2% output fluctuations that were causing steam pressure instability.
- Hot-Swap Only When Bus is Stable: The module is hot-swappable, but pulling it mid-scan can corrupt the Advant OCS I/O bus. At a Florida power plant, a technician swapped a module during a process upset, crashing the entire I/O bus and tripping a turbine. Always wait for a stable process window, disable the module in Control Builder, and confirm bus status before removal.
- Terminal Block Tightening Torque Matters: Loose terminal screws cause intermittent connections and signal loss. At a Louisiana chemical plant, a loose screw on a fuel valve control channel caused random 2-second signal drops—resulting in $50k of wasted product. Use a torque wrench to tighten terminal screws to 0.8-1.0 Nm (7-9 lb-in) per ABB specifications.
ABB 57120001-FGDSAO130
Technical Deep Dive & Overview
This is a 16-channel universal analog output module designed for ABB’s Advant OCS DCS, a workhorse of power generation and heavy process industries worldwide. It acts as the interface between the DCS controller and final control elements (valves, dampers, governors), converting digital control signals into precise analog outputs while providing robust diagnostics and fault tolerance.
Internally, each channel has a dedicated DAC (digital-to-analog converter) and output driver—no shared components—to prevent cross-talk and ensure independent operation. The module uses a precision 12-bit DAC with linearization to maintain accuracy over temperature and load variations. For current outputs, it employs a current-source topology that maintains constant current regardless of load resistance (within 500Ω). For voltage outputs, it uses a high-impedance buffer to ensure stable voltage even with varying load.
The module communicates with the Advant OCS controller via a redundant backplane bus, ensuring data flow even if one bus segment fails. It stores configuration in non-volatile EEPROM, so settings survive power cycles and module replacement. The diagnostics engine monitors each channel for short circuits, open loads, overcurrent, and power supply issues—sending alerts to the controller via the backplane. This eliminates the need for manual loop checks, a huge time-saver in 24/7 operations.
What makes it field-tough is its industrial design: conformal-coated PCB to resist humidity and chemical vapors, wide operating temperature range (0°C to 55°C), and vibration tolerance up to 3g. It’s built to handle the abuse of power plant control rooms—where EMI, temperature swings, and mechanical vibration destroy lesser modules. Unlike generic analog output modules, it’s engineered to integrate seamlessly with Advant OCS’s control logic, with zero configuration conflicts and native support for ABB’s control software. This is the module you install when downtime isn’t an option.
