ABB 3BHE037864R0106

Description

Detailed Parameter Table

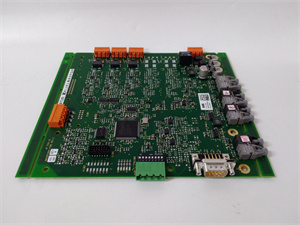

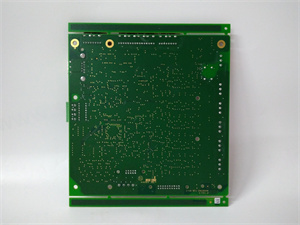

ABB 3BHE037864R0106

Product Introduction

The ABB 3BHE037864R0106 stands as the flagship processor module within ABB’s AC 800M PM865 controller series, engineered for mission-critical automation in continuous process industries. This high-availability controller forms the computational core of ABB’s Extended Automation System 800xA, executing complex regulatory control, safety instrumented functions (SIF), and batch sequencing with deterministic performance. The 3BHE037864R0106 integrates dual-core processing power with hardware-assisted real-time operating system (RTOS) to deliver microsecond-level response times for rapid control loops.

Designed for extreme reliability, this controller supports seamless 1:1 redundancy with automatic bumpless transfer during failover events. Its SIL 3 certification enables deployment in integrated safety systems where process shutdown logic and burner management require rigorous fault tolerance. The ABB 3BHE037864R0106 provides native integration with ABB’s S800 I/O modules and third-party devices via PROFIBUS DP, establishing a unified control architecture for refineries, power plants, and chemical complexes.

Core Advantages and Technical Highlights

Fault-Tolerant Architecture:
Featuring dual independent processing cores with synchronized memory buses, the ABB 3BHE037864R0106 executes parallel diagnostics while maintaining <10ms switchover during processor faults. Watchdog circuits continuously monitor core temperatures and voltage thresholds, initiating safe shutdown if parameters exceed limits.

Cybersecurity Fortification:
Integrated Trusted Platform Module (TPM) 2.0 hardware encrypts firmware and runtime data. Secure boot mechanisms with digital signature verification prevent unauthorized code execution, while role-based access control aligns with IEC 62443 standards.

Deterministic Performance:
Dedicated hardware coprocessors handle interrupt servicing and I/O scanning independently, ensuring consistent 10ms control loop execution even during communication load peaks. The memory management unit (MMU) isolates safety-critical functions from standard processes.

Scalable Connectivity:
Dual 100 Mbps Ethernet ports support ring topologies via RSTP/HSR protocols, while integrated PROFIBUS DP master interface connects up to 125 field devices. The RS-485 ports enable legacy device integration using Modbus RTU.

Typical Application Scenarios

In LNG liquefaction plants, the ABB 3BHE037864R0106 orchestrates cryogenic compressor anti-surge controls while simultaneously executing SIL 3 emergency depressurization logic. Its redundant architecture maintains continuous operation during turbine trip events, preventing cascade shutdowns that could cost $1M/hour in production loss.

Power utilities deploy this controller for boiler-turbine coordinated control, where millisecond-level response regulates steam valves during load ramping. The module’s -40°C cold-start capability ensures black-start readiness in arctic substations. For pharmaceutical batch processes, the 3BHE037864R0106 synchronizes reactor temperature control with CIP (Clean-in-Place) sequencing while maintaining electronic batch records compliant with 21 CFR Part 11.

ABB 3BHE037864R0106

Related Model Recommendations

PM866 Processor: Enhanced version with 1.8 GHz quad-core CPU

CI867 IEC 61850 Communication Interface: Grid protection integration

SD833 Power Supply: 24V DC redundant feed for PM865 rack

TA526 Redundancy Kit: Fiber-optic sync cables for 1:1 redundancy

S800 I/O Modules: Field signal interface (e.g., DI650, AI625)

COM620 Cyber Security Appliance: Firewall for controller networks

CP635 HMI Panel: Local operator interface

Installation, Commissioning and Maintenance Instructions

Installation Preparation:
Mount controller rack vertically with ≥100mm clearance on all sides. Verify earthing resistance <1Ω before power-up. Use ABB-recommended 24V DC power supplies with ripple <5%. For redundant configurations, install TA526 synchronization kit before applying power.

Maintenance Recommendations:
Perform annual RAM test via Control Builder M diagnostics. Monitor processor load through System 800xA diagnostics (sustained >75% requires optimization). Replace cooling fans every 5 years or when airflow sensors indicate >20% drop. Always maintain matched firmware versions in redundant pairs of 3BHE037864R0106 controllers.

Service and Guarantee Commitment

ABB provides a 36-month warranty for the 3BHE037864R0106, including advanced replacement for critical failures. Global support centers offer 24/7 technical assistance with guaranteed 2-hour response for Severity 1 cases. Lifecycle commitment ensures spare availability for 20 years post-manufacturing, supported by ABB’s Automation Sentinel program delivering cybersecurity patches and functional updates.

All controllers undergo 500-hour accelerated aging tests with thermal cycling (-40°C to +85°C) and 95% humidity exposure. SIL recertification services are available every 5 years, including full diagnostic coverage verification and safety validation reports compliant with IEC 61511 requirements.
