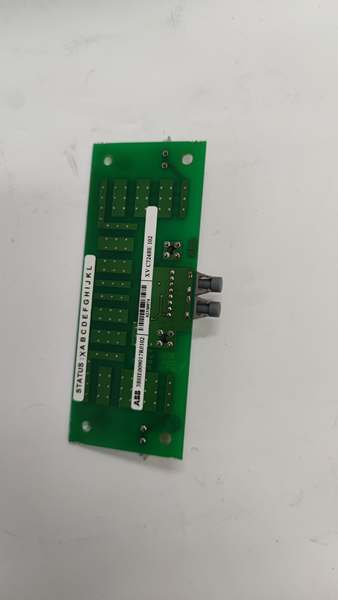

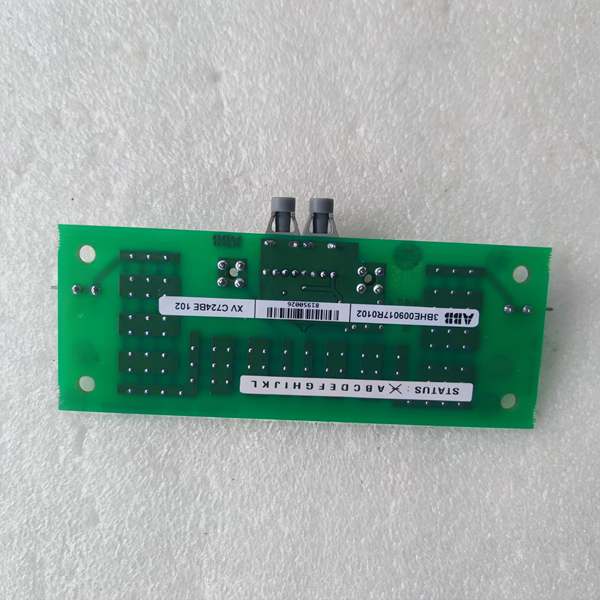

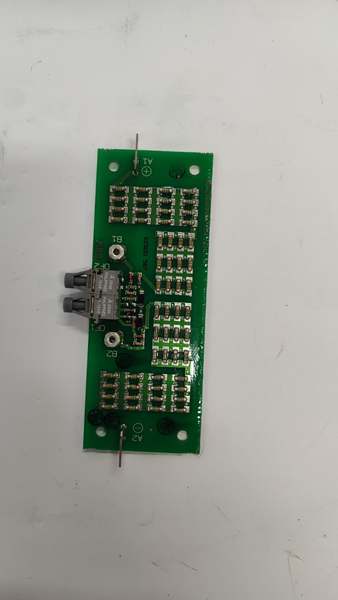

ABB 3BHE009017R0102 (XVC724BE102) | ACS800/ACS880 DCU Drive Control Board – Field Service Notes

• Description

Hard-Numbers: Technical Specifications

• Processor: 32‑bit DSP + FPGA; real‑time DTC algorithm execution
• Protocol Support: Fiber (multi‑drive sync), RS‑485, Modbus RTU; ABB proprietary
• I/O Count: 8×digital in, 8×digital out, 2×analog in, 2×analog out
• Data Resolution: 16‑bit ADC (current/voltage); 0.1% torque control accuracy
• Isolation Rating: 1500 VAC (I/O‑power); 4000 V surge (fiber/copper)
• Operating Temperature: -20 °C to +55 °C (full load); derate above +50 °C
• Power Draw: <2 W; 24 VDC ±10% (12–48 VDC range)
• Safety Rating: IEC 61508 (SIL 2); CE/UL; coated for harsh environments
• Storage Temperature: -40 °C to +85 °C
• Mounting: PCB slot in ACS800/880 drive cabinet; IP20, no DIN rail

The Real-World Problem It Solves

Large AC drives drift on torque/ speed with analog controls. Weak processing causes slow IGBT response, leading to overcurrent trips and motor damage. Unisolated boards leak noise into DCS, triggering false protection events.

Where you’ll typically find it:

• ACS800/880 drive cabinets in thermal power plants (ID fans, boiler feed pumps)
• Metals rolling mills (precision torque control for stands)
• Offshore platforms and refineries (explosion‑area motor control, SIL2 safety)

This board delivers tight DTC, fast IGBT firing, and noise isolation—keeping high‑horsepower motors online and protected.

Hardware Architecture & Under-the-Hood Logic

DSP runs torque/speed loops; FPGA handles IGBT timing, sampling, and fault logic. Fiber transceivers sync multi‑drive systems; isolated I/O blocks ground loops.

1. Motor PT/CT and encoder signals land on isolated analog/digital inputs.
2. 16‑bit ADC samples current/voltage; FPGA time‑stamps data at 10 kHz.
3. DSP executes DTC, calculates flux/torque, and outputs IGBT firing commands.
4. FPGA drives IGBTs via gate drivers; monitors temperature/voltage for protection.
5. Fiber port syncs with other drives; RS‑485 reports status/faults to DCS.
6. Onboard EEPROM stores firmware; front LEDs show power, fault, and activity.

Field Service Pitfalls: What Rookies Get Wrong

Mismatched Firmware Versions

Techs swap boards without matching drive firmware. Causes DTC mismatch, random trips, and FPGA lockups.

• Field Rule: Flash drive firmware to match board’s factory FW version. Never mix revisions.

Poor High‑Voltage Termination

Rookies use undersized wire or loose lugs on DC bus/IGBT gates. Creates hot spots, voltage spikes, and board burnout.

• Quick Fix: Use 14 AWG min, crimp lugs, torque to spec. Inspect for discoloration every 3 months.

Ignoring Cabinet Airflow

Blocked vents push temp >55 °C. Triggers thermal derate, torque ripple, and FAULT LED.

• Field Rule: Keep intake/exhaust clear. Maintain <50 °C ambient for full accuracy and lifespan.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
