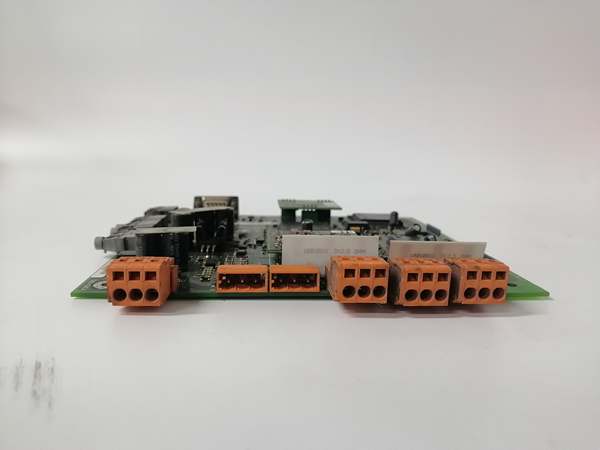

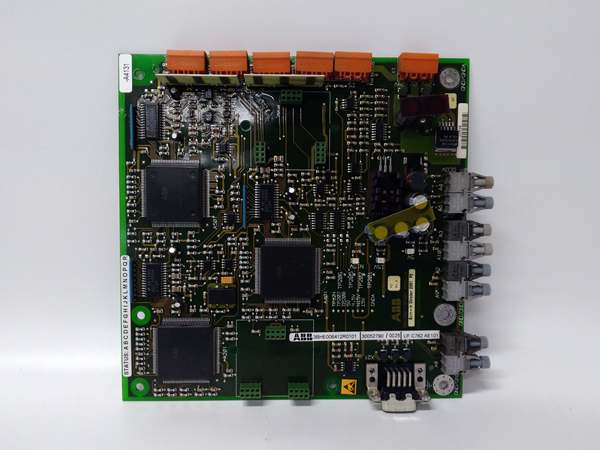

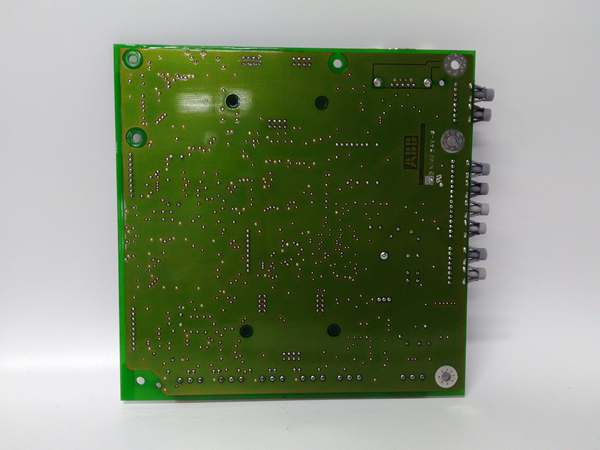

ABB 3BHE006412R0101 | UFC762AE101 CVMI Excitation Control Board – Field Service Notes

• Description

Hard-Numbers: Technical Specifications

• Protocol Support: Modbus RTU, IEC 61850, ABB proprietary; dual RS485 + 100BASE-TX Ethernet
• Port Count: 8×24 VDC digital in, 4×4–20 mA analog in, 6× relay out (5 A/250 VAC)
• Excitation Range: 0–300 VDC, 0–2000 A (with external power stage)
• Regulation Accuracy: ±0.5% current, ±1% voltage; response ≤10 ms
• Isolation Rating: 250 VAC continuous (I/O–power, comm–power)
• Operating Temperature: -20 °C to +60 °C; derate above +55 °C
• Power Draw: 15 W typical, 18 W max; 24 VDC ±10% supply
• Safety Rating: IEC 61800-5-1; CE/UL certified
• Storage Temperature: -40 °C to +85 °C
• Mounting: EN 50022 DIN rail, IP20, hot-swap capable

The Real-World Problem It Solves

Generators in thermal/hydro plants suffer voltage drift and slow response from analog excitation controls. Non-isolated boards leak noise into DCS, causing false trips and poor power quality.

Where you’ll typically find it:

• UNITROL 5000 panels for 10–1000 MW synchronous generator excitation
• Symphony Plus/Advant OCS DCS cabinets for voltage/reactive power regulation
• MV drive and power plant ESD loops requiring fast, isolated voltage sensing

This board delivers tight voltage control, fast response, and noise isolation to keep generators online and grid-compliant.

Hardware Architecture & Under-the-Hood Logic

Onboard 32-bit ARM processor runs excitation algorithms and comms stack. All I/O uses opto-isolation; voltage inputs have precision dividers.

1. Generator PT/CT signals and 4–20 mA setpoints land on front terminals.
2. Precision voltage dividers and opto-isolators separate high-voltage field from logic.
3. Processor samples voltage/current, runs PID, and outputs 0–300 VDC drive to SCR bridge.
4. Data published over dual RS485/Ethernet to DCS; fault codes logged locally.
5. Relay outputs trip excitation on overcurrent/overvoltage; front LEDs show power/comms/status.

3BHE006412R0101

Field Service Pitfalls: What Rookies Get Wrong

Incorrect PT Wiring Ratio

Techs wire 120 VAC PTs to 300 VDC inputs without scaling. Causes overvoltage faults and board burnout.

• Field Rule: Match PT ratio to board jumper settings. Max continuous input <300 VDC.

Grounding Multiple Points on Analog Loops

Rookies ground 4–20 mA shields at both ends. Creates ground loops, signal noise, and unstable excitation.

• Quick Fix: Shield ground only at cabinet; field end insulated. Use twisted-pair, 18 AWG min.

Overlooking Cabinet Ventilation

Blocked fans push temp >60 °C. Triggers thermal shutdown, comms loss, and FAULT light.

• Field Rule: Keep intake/exhaust clear. Maintain <55 °C ambient for full accuracy.
