Description
Component Snapshot At-a-Glance

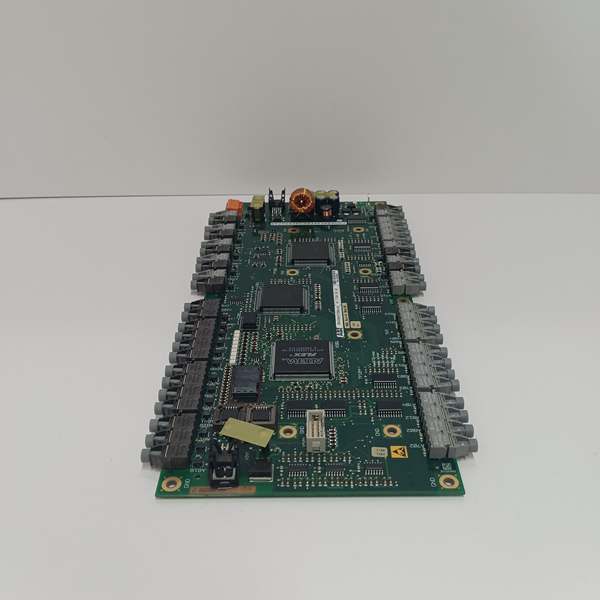

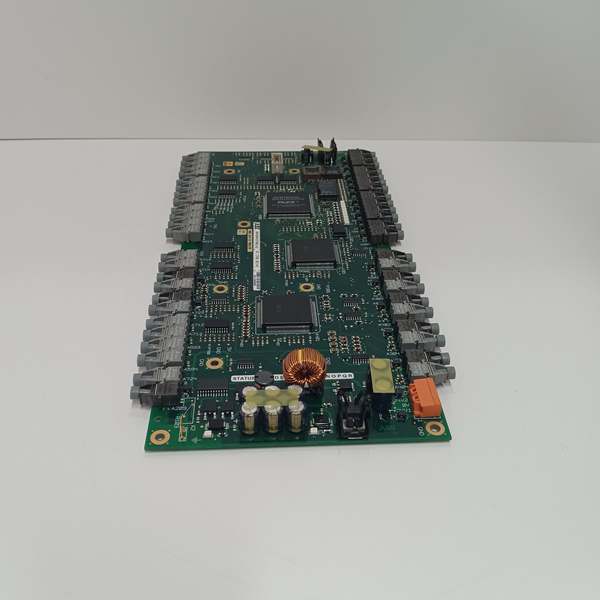

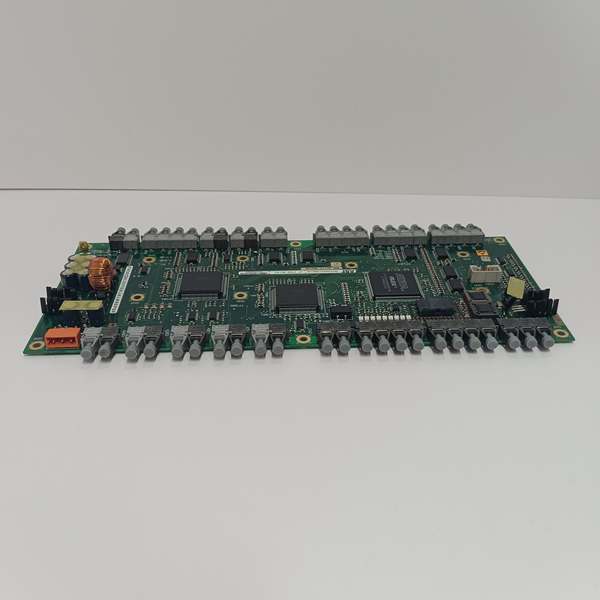

- Model: 3BHE004573R0142 (UFC760 BE142)
- Alt. P/N: 3BHE004573R0042
- Product Series: ABB UFC760, compatible with AC 800M/800xA, ACS 6000 MV Drives
- Hardware Type: Isolated digital input and pulse counter board
- Key Feature: 500 VAC channel isolation plus SIL3 safety rating for critical circuits
- Primary Field Use: Collect discrete status and pulse signals for generator excitation systems and medium voltage drive controls.
3BHE004573R0142
Hard-Numbers: Technical Specifications
- Protocol Support: Dual Profibus DP, Modbus RTU
- Port Count: 8 digital input channels, 4 test output channels
- Baud Rate: Up to 12 Mbps for Profibus DP
- Isolation Rating: 500 VAC channel-to-channel and channel-to-backplane
- Operating Temperature: -20 °C to +60 °C
- Power Draw: 5 W typical, powered from 24 VDC ±20% control supply
- Input Type: Dry contact, 24 VDC logic level
- Safety Rating: SIL3 per IEC 61508, PL e / Cat.4
- Storage Temperature: -40 °C to +85 °C
- Mounting Style: Standard EN 50022 DIN rail
The Real-World Problem It Solves
Mixed high-voltage field signals leak noise into low-voltage controller circuits. Standard I/O boards cannot meet safety ratings for generator and medium voltage drive safety interlocks.
Where you’ll typically find it:
- Generator excitation systems for breaker status and field pulse monitoring
- Medium voltage ACS 6000 drive panels for motor interlocks and tachometer pulses
- Plant SIS and ESD circuits requiring SIL3 certified I/O hardware
This board maintains signal integrity across noisy environments and meets safety standards for protection loops.
Hardware Architecture & Under-the-Hood Logic
This board includes an onboard microprocessor for signal processing and bus communication. Every input channel uses opto-couplers to maintain full electrical isolation.
- Field discrete or pulse signals enter screw terminal connections on the front edge.
- Opto-isolators separate field wiring from internal circuit logic to block common-mode noise.
- Onboard processor filters pulse data and samples digital input states continuously.
- Processed data transmits over dual Profibus DP links to the main controller.
- Test outputs activate during offline calibration; front LEDs show channel and module status.
3BHE004573R0142
Field Service Pitfalls: What Rookies Get Wrong
Cross-Wiring High Voltage and 24 VDC Circuits
Technicians run 120/240 VAC wiring alongside 24 VDC inputs on this board. This action damages opto-isolators and creates safety hazards.
- Field Rule: Route high voltage cables in separate trunking. Never terminate AC power to this module’s input terminals.
Improper Shield Grounding for Pulse Wiring
Many technicians ground cable shields at both ends on pulse circuits. This creates ground loops and produces erratic pulse count readings.
- Quick Fix: Ground shield only at the cabinet side. Leave field end shield fully insulated and floating.
Ignoring Temperature Limits in Enclosed Cabinets
Cabinets with blocked ventilation push internal temperatures above 60 °C. The module drops communication and triggers steady red FAULT lights.
- Field Rule: Keep cabinet intake and exhaust fans clear. Maintain ambient temperature below 60 °C during continuous operation.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
