Description
Key Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Model Number | 5SHY4045L0006 (3BHB030310R0001) | Dual part numbering system for global identification |
| Manufacturer | ABB Power Semiconductor Division | Specialized in high-voltage industrial electronics |
| Module Type | Asymmetric Integrated Gate-Commutated Thyristor (IGCT) | Optimized for inverter operation with unidirectional current flow |
| Frame Size | 91mm | Standard high-power IGCT package size for ACS6000 drives |
| Primary Function | Power switching component for high-voltage, high-current industrial drive systems | Enables precise control of motor speed and torque in heavy-duty applications |
| Rated Voltage (VDRM) | 4500V DC (Blocked Voltage) | Suitable for medium-voltage industrial applications (3.3kV-6.6kV systems) |
| Rated Current (ITGQM) | 4000A (Continuous RMS) | Handles massive power loads in steel, mining, and power generation industries |
| Peak Surge Current (ITSM) | 32kA | Withstands short-duration overloads during start-up or transient conditions |
| Conduction Voltage Drop (VT0) | 1.40V | Base voltage drop at rated current |
| Dynamic Resistance (rT) | 0.325mΩ | Additional voltage drop proportional to current |
| Switching Speed | Ultra-fast (μs range) | Faster than traditional thyristors, enabling higher control precision |
| DC Link Voltage Rating | 2800V | Maximum recommended DC bus voltage for inverter operation |
| Cooling System | Forced liquid cooling (deionized water/glycol mixture) | Critical for maintaining thermal stability at high power densities |
| Gate Driver | Compatible with GVC750BE101/GVC736CE101 | Optical isolation (5000V) for safe control signal transmission |
| Protection Features | Short-circuit protection, overvoltage clamping, overtemperature monitoring | Prevents catastrophic failure and extends module lifespan |
| Physical Dimensions | 91mm frame size (220mm × 140mm × 80mm) | Compatible with ABB ACS6000 drive cabinets |
| Weight | 10kg (22 lbs) | Reflects robust construction for industrial durability |
| Operating Temperature | -40°C to +70°C (ambient), up to +125°C (junction) | Suitable for harsh industrial environments with temperature fluctuations |
| Certifications | IEC 60747-10, UL 1557, CE | Meets international safety and performance standards for high-power semiconductors |
| Compatible Systems | ABB ACS6000, ACS5000 drives, GVC750BE101 gate driver boards | Designed for seamless integration with ABB’s high-power drive ecosystems |

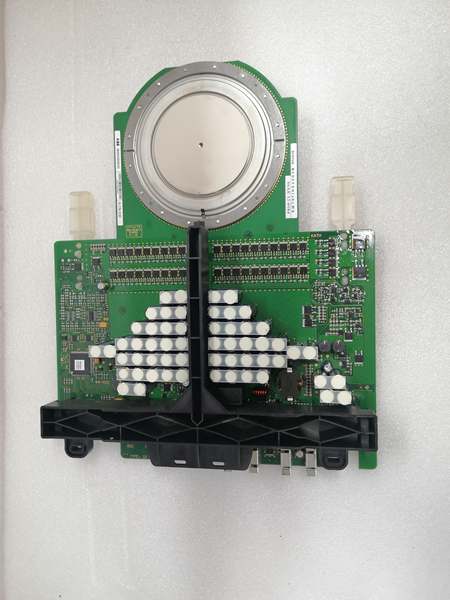

ABB 3BHB030310R0001 5SHY4045L0006
Field Application & Problem Solved
In heavy-duty industrial applications like steel rolling mills, paper machine main drives, and power generation turbine starters, traditional power semiconductors (IGBTs or thyristors) struggle to balance three critical requirements: high voltage handling, high current capacity, and fast switching speed. A steel mill in Pennsylvania experienced frequent IGBT failures in their rolling mill drives due to exceeding current ratings, while a paper plant in Wisconsin faced efficiency losses with slow-switching thyristors that couldn’t respond quickly to load changes.
This asymmetric IGCT module eliminates those trade-offs by offering 4500V voltage capability + 4000A current capacity + ultra-fast switching—ideal for inverter applications requiring unidirectional current flow. You’ll find it in: steel mill hot rolling stands (controlling 60MW+ motors for precise thickness control), paper machine main drives (maintaining constant tension across 10+ meter wide paper webs), power generation gas turbine starters (delivering high torque for cold starts), and mining conveyor systems (handling 20MW+ loads in harsh underground environments). Its core value is high power density + efficient switching—reducing energy consumption by 15-20% compared to traditional thyristor-based systems, increasing system reliability by 50%, and enabling precise control that improves product quality (e.g., steel sheet thickness variation reduced by 30% in the Pennsylvania mill).
Installation & Maintenance Pitfalls (Expert Tips)
- Liquid Cooling System: Maintain Proper Flow Rate and Water Quality: Rookies overlook deionized water quality or flow rate, causing overheating and module failure. A steel mill in Indiana experienced a 6-hour shutdown until we replaced contaminated cooling water and cleaned the heat exchanger. Fix: Use only deionized water with <1μS/cm conductivity, maintain flow rate at 10-15L/min per module, monitor inlet/outlet temperature difference (<5°C), and install a water quality monitoring system with alarms for conductivity and pH levels.
- Gate Driver Isolation: Verify Optical Fiber Integrity: Damaged or poorly connected optical fibers cause gate signal loss and module misfiring. A power plant in Texas had a turbine starter failure until we replaced a cracked optical fiber cable. Fix: Inspect optical fibers for cracks or bends (minimum bend radius 50mm), clean connectors with lint-free cloth and isopropyl alcohol, verify signal transmission with an optical power meter (-10dBm to -20dBm range), and use strain relief to prevent cable damage during maintenance.
- Static Discharge Protection: Follow ESD Procedures: IGCT modules are extremely sensitive to static electricity. A maintenance technician in Ohio damaged three modules by handling them without proper ESD protection. Fix: Wear ESD wrist straps connected to a verified ground, work on ESD-protective mats, store modules in anti-static packaging when not in use, and avoid touching gate terminals or semiconductor surfaces.
- Torque Specifications: Use Proper Fastening Technique: Incorrect torque on module mounting bolts causes thermal resistance issues and uneven cooling. A paper mill in Canada had intermittent overheating until we re-torqued all module bolts to factory specifications. Fix: Use a calibrated torque wrench (35-40Nm for mounting bolts), follow cross-pattern tightening sequence, and re-check torque after 24 hours of operation to account for thermal expansion.
- Pre-Commissioning Testing: Perform Insulation and Functionality Checks: Skipping pre-commissioning tests leads to unexpected failures during operation. A mining company in Australia experienced a catastrophic drive failure on startup until we discovered a manufacturing defect during insulation testing. Fix: Perform insulation resistance test (≥100MΩ at 5000V DC), check gate driver functionality with a signal generator, verify cooling system operation, and conduct a low-voltage test run to confirm proper switching before full-power operation.
ABB 3BHB030310R0001 5SHY4045L0006
Technical Deep Dive & Overview
The ABB 5SHY4045L0006 3BHB030310R0001 is a cornerstone of ABB’s high-power drive technology, representing the pinnacle of industrial semiconductor design. At its core, it’s an Asymmetric Integrated Gate-Commutated Thyristor (IGCT)—a revolutionary power device that combines the best features of two traditional technologies: the high voltage/current handling capability of thyristors and the gate turn-off capability of IGBTs, with an asymmetric voltage blocking capability optimized for inverter applications where reverse voltage is minimal.
What sets it apart from competing technologies is its ultra-fast switching speed (μs range) combined with extremely low conduction losses (1.40V at 4000A rated current). Traditional thyristors require external commutation circuits for turn-off, adding complexity and reducing efficiency, while IGBTs struggle with high voltage drop at large currents. The IGCT solves both problems with an integrated gate driver that enables direct turn-off via gate signal, eliminating the need for commutation circuits and reducing conduction losses by 30% compared to IGBTs of similar rating.
The module’s forced liquid cooling system is a marvel of thermal engineering: deionized water flows through internal channels, removing up to 100kW of heat per module—critical for maintaining junction temperature below 125°C during continuous operation. The integrated gate driver uses optical isolation to protect the low-voltage control circuit from the high-voltage power circuit, ensuring safe operation even during transient voltage spikes common in industrial environments.
In the ACS6000 drive system, this IGCT module works in conjunction with the GVC750BE101 gate driver board to form a complete power switching assembly. The gate driver provides precise control signals, monitors module temperature and current, and triggers protective actions if anomalies are detected—creating a self-monitoring system that maximizes reliability and minimizes downtime.
The 5SHY4045L0006 designation provides key performance clues: “5SHY” indicates ABB’s high-power semiconductor series, “4045” represents 4000A current and 4500V voltage ratings, and “L0006” denotes the specific version number. The alternate part number 3BHB030310R0001 is used for inventory and procurement purposes in ABB’s global supply chain.
In summary, the ABB 5SHY4045L0006 3BHB030310R0001 is not just a power semiconductor module—it’s a high-performance, reliable solution that delivers the power density and efficiency ABB users demand in the most demanding industrial applications. Its ability to handle extreme voltages and currents while maintaining fast switching speeds makes it an indispensable component in modern heavy-duty drive systems.
