Description
Key Technical Specifications
- Model Number: 3BHB013088R0001 GVC750BE101
- Manufacturer: ABB Industrial Automation
- Isolation Rating: 5kV AC galvanic isolation (control side to power side)
- Gate Current Output: 10A peak, 2A continuous (IGBT gate charging/discharging)
- Input Control Signal: 24VDC TTL-level (from ACS 6000 control board)
- Protection Functions: IGBT overcurrent detection, under-voltage lockout, short-circuit protection
- Fault Feedback: Digital signal to VFD control system (fault status output)
- Operating Temperature: -10°C to +55°C (14°F to 131°F; derated above 45°C)
- Storage Temperature: -40°C to +85°C (-40°F to 185°F)
- Power Supply: 15VDC (control side), 20VDC (gate drive side)
- Mounting: Rack-mounted (fits ACS 6000 power cell chassis; 2 modules per power cell)
- Certifications: UL 508C, CE, IEC 61800-5-1 compliant

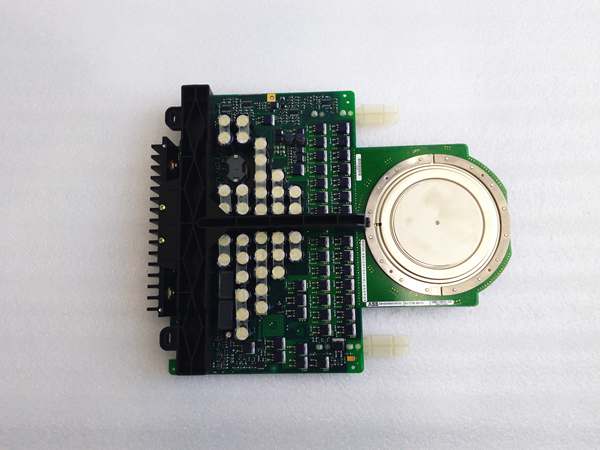

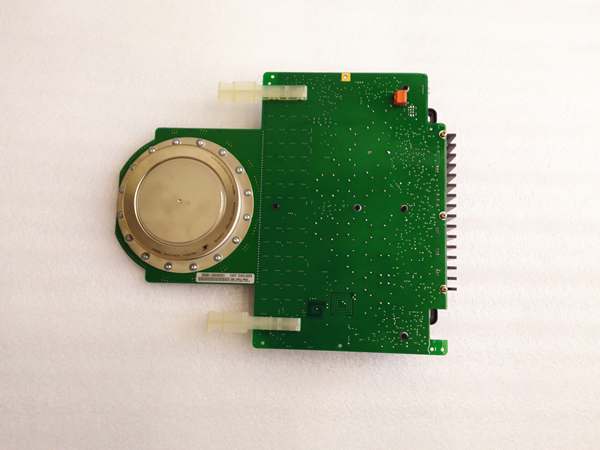

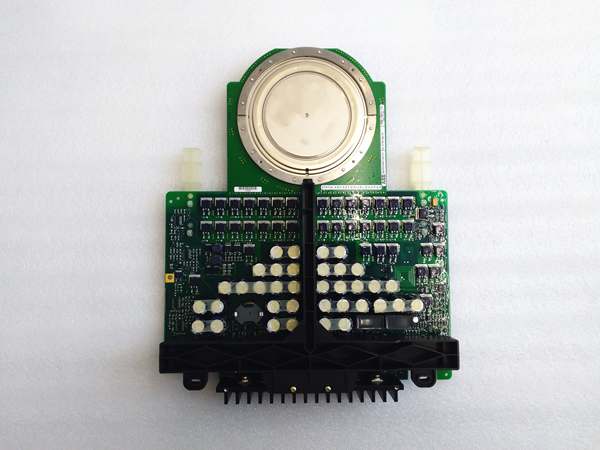

ABB 3BHB013088R0001 GVC750BE101
Field Application & Problem Solved
In steel mills, mine hoists, and large pump applications running ACS 6000 medium-voltage VFDs, the biggest risk is IGBT failure—these power semiconductors cost $10k+ each, and a single failure can take a VFD offline for days. Legacy gate drivers lack precise current control and fast fault detection, leading to IGBT overheating or destructive voltage spikes during switching. The GVC750BE101 solves this with 5kV galvanic isolation and 10A peak gate current: it charges/discharges IGBT gates quickly and evenly, minimizing switching losses, and detects overcurrent faults in less than 1µs—fast enough to shut down the IGBT before damage occurs.
You’ll find this module in every ACS 6000 power cell—two modules per cell, one for the upper IGBT and one for the lower IGBT in the half-bridge configuration. It’s the critical link between the VFD’s control system and the power semiconductors: it translates low-voltage control signals into high-power gate drives, while isolating the control side from the 3kV–10kV power side. Its core value is precision switching paired with fast fault protection—this module doesn’t just drive IGBTs; it protects them from catastrophic failure. I’ve seen this module save a steel mill $50k in replacement IGBTs—during a grid surge, it detected an overcurrent fault and shut down the IGBTs in 0.8µs, preventing a power cell explosion.
Another hidden value is its fault feedback signal. When a fault occurs, the module sends a digital signal to the VFD’s control system, triggering a safe shutdown and logging the fault code. This eliminates hours of troubleshooting—instead of guessing why the VFD tripped, technicians can pull the fault code and pinpoint the issue instantly.
Installation & Maintenance Pitfalls (Expert Tips)
Optical Fiber Cable Routing Is Critical for Noise Immunity: Rookies run gate driver optical fibers alongside power cables, introducing EMI that corrupts gate signals. This causes IGBTs to switch erratically, leading to overheating and failure. Optical fibers must be routed in dedicated cable trays, at least 30cm away from power cables or motor leads. Use armored fiber cables in high-vibration areas (e.g., near mill motors) to prevent cable breakage. This is the #1 cause of premature GVC750BE101 failures in the field.
IGBT Gate Resistor Matching Is Non-Negotiable: The module requires specific gate resistors (supplied by ABB) to limit peak current and control switching speed. Rookies use generic resistors, which change the gate charge/discharge profile—this leads to IGBT switching losses and thermal runaway. Always use the exact resistor part number specified in the ACS 6000 manual; never substitute with off-the-shelf components. A $10 resistor mismatch can destroy a $10k IGBT.
Static Discharge Will Kill This Module: The GVC750BE101’s optical isolation and gate drive circuits are extremely sensitive to ESD. Rookies handle the module without ESD protection (ground straps, anti-static mats), frying the internal circuits instantly. Always wear an ESD wrist strap connected to the ACS 6000 chassis when handling the module. Never touch the module’s connector pins—even a small static discharge can damage the gate drive ICs beyond repair.
Firmware Version Must Match Power Cell Hardware: A firmware mismatch between the GVC750BE101 and the ACS 6000 power cell causes “gate drive fault” trips. Rookies install a replacement module with newer firmware and assume it’s compatible—this is a costly mistake. The module’s firmware is calibrated to the power cell’s IGBT model and voltage rating; mismatched firmware will cause incorrect gate current levels. Always check the firmware revision of the failed module (via the VFD’s HMI) and match it with the replacement. Do not update the module’s firmware in the field—this requires factory calibration.
ABB 3BHB013088R0001 GVC750BE101
Technical Deep Dive & Overview
The ABB 3BHB013088R0001 GVC750BE101 is a high-performance gate driver module designed to control and protect IGBTs in ACS 6000 medium-voltage VFDs. At its core, it uses an optocoupler to provide 5kV galvanic isolation between the low-voltage control side (24VDC TTL signals) and the high-voltage power side (gate drives for 3kV–10kV IGBTs). This isolation prevents high-voltage transients from damaging the VFD’s control system, a critical safety feature in medium-voltage applications.
The module’s gate drive circuit delivers 10A peak current to charge the IGBT’s gate capacitance quickly—this minimizes switching time and reduces switching losses, which are the main cause of IGBT overheating. It also includes under-voltage lockout: if the gate drive power supply (20VDC) drops below a threshold, the module shuts down the gate signal to prevent the IGBT from operating in a linear (high-loss) mode. The overcurrent detection circuit monitors the IGBT’s collector-emitter current; if it exceeds a safe level, the module turns off the gate signal in less than 1µs—fast enough to avoid destructive thermal runaway.
Unlike legacy gate drivers, the GVC750BE101 provides a digital fault feedback signal to the VFD’s control system. This signal includes fault codes for overcurrent, under-voltage, and short-circuit events, enabling the VFD to trigger a safe shutdown and log the fault for later analysis. The module is designed for redundant operation in ACS 6000 systems—if one module fails, the VFD can switch to a standby power cell, minimizing downtime.
In the field, this module’s strength is its reliability and precision. It’s the unsung hero of ACS 6000 VFDs—without it, the power semiconductors can’t operate safely. Install it correctly, use the right components, and protect it from ESD, and it will run for 15+ years without intervention.
