Description
Component Snapshot At-a-Glance
- Model: 3BHB007445P0001
- Alt. P/N: No direct alternate part number
- Product Series: ABB ACS6000 MV Drives, UNITROL Excitation Systems, 800xA DCS
- Hardware Type: Galvanically isolated multi-channel analog input module
- Key Feature: 2500 VAC isolation, 4–20mA native input for power system signal sampling
- Primary Field Use: Measure current, voltage and process parameters from power stages and field transmitters.

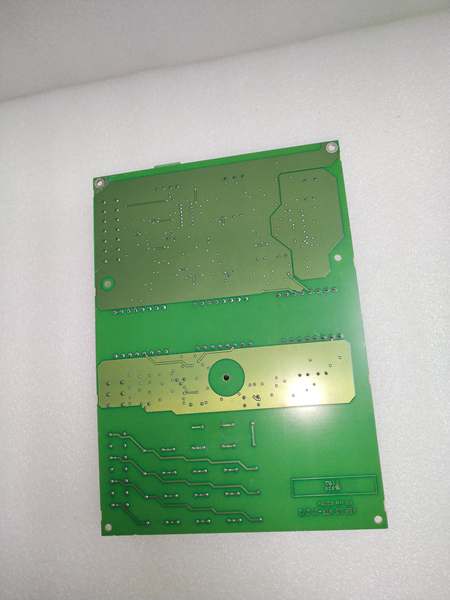

3BHB007445P0001
Hard-Numbers: Technical Specifications
- Protocol Support: ABB proprietary backplane bus
- Port Count: 8 analog input channels
- Signal Range: 4–20 mA standard, 0–20 mA configurable
- Baud Rate: Backplane bus fixed at 2 Mbps
- Isolation Rating: 2500 VAC channel-to-backplane, channel-to-chassis
- Operating Temperature: -20 °C to +60 °C
- Power Draw: 6 W typical, 24 VDC ±20% backplane supply
- Input Impedance: 250 Ω per channel
- Resolution: 16-bit analog-to-digital conversion
- Accuracy: ±0.2% full scale at nominal temperature
- Storage Temperature: -40 °C to +85 °C
The Real-World Problem It Solves
High voltage and high current areas generate heavy electrical noise. Standard analog cards pick up interference, leading to fluctuating readings and unstable drive regulation.
Where you’ll typically find it:
- ACS6000 medium voltage drive cabinets for DC bus and phase current monitoring
- Generator excitation panels for field voltage and excitation current sampling
- Refinery large motor drive rooms for process transmitter signal acquisition
This module blocks common-mode noise and delivers steady analog readings to keep drive and excitation loops stable.

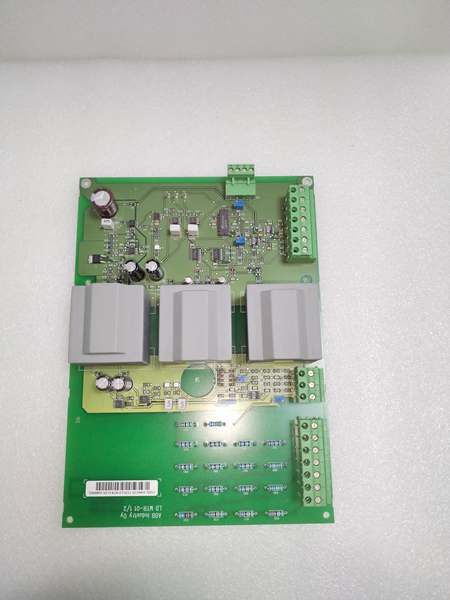

Hardware Architecture & Under-the-Hood Logic
This is a slave I/O module with no onboard processor. It relies entirely on the main controller for data processing and command execution.
- Field 4–20mA signals connect to front screw terminals and flow through precision input resistors.
- Analog signal levels convert to voltage before entering isolation barriers.
- Opto-isolators separate field circuits from internal logic to suppress noise.
- 16-bit ADC converts analog values to digital data for backplane transmission.
- Digital data transfers over backplane to main controller; channel LEDs indicate active signal presence.

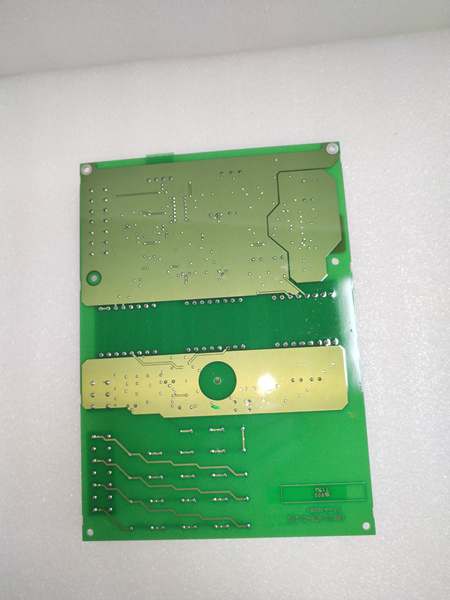

3BHB007445P0001
Field Service Pitfalls: What Rookies Get Wrong
Parallel Wiring With High-Power Cables
Technicians run analog signal cables alongside 480V or MV power lines. Induced noise creates erratic current readings and loop instability.
- Field Rule: Separate analog cables from power cables by minimum 30 cm. Use dedicated cable trays for low-level signals.
Incorrect Two-Wire Transmitter Wiring
Rookies wire two-wire transmitters without proper loop power. Channels show zero or low current readings continuously.
- Quick Fix: Confirm loop power is sourced correctly. Do not add external 24V power across module input terminals.
Multiple-Point Shield Grounding
Grounding cable shield at both field end and cabinet end creates ground loops. Readings drift during motor start and stop cycles.
- Field Rule: Ground shield only at the module cabinet. Leave field side shield insulated and floating.
