Description
Component Snapshot At-a-Glance

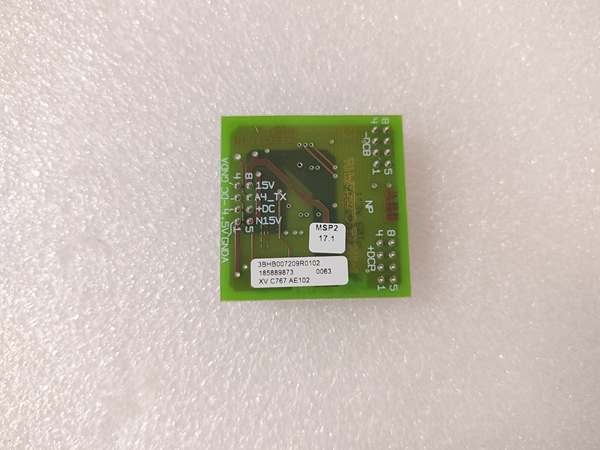

- Model: 3BHB007209R0102 (XVC767AE102)
- Alt. P/N: 3BHB007209R0002 (revision predecessor)
- Product Series: ABB XVC767, Medium Voltage (MV) Drives / IGCT Power Stacks
- Hardware Type: Voltage/Current Scaling & Monitoring PCB (Signal Conditioner)
- Key Feature: Isolated high-voltage signal scaling for IGCT-based power converters
- Primary Field Use: Step down and isolate MV drive current/voltage signals for DCS/controller readback.

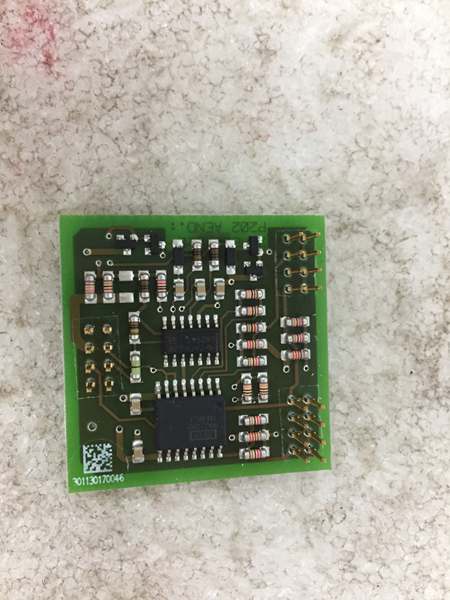

3BHB007209R0102
Hard-Numbers: Technical Specifications
- Protocol Support: Analog scaling + direct interface to ABB IGCT gate units
- Input Range: 0–200A (current); 0–1200V (voltage, via external PT)
- Output Signal: Isolated 0–10VDC / 4–20mA (controller-compatible)
- Isolation Rating: 2500V AC (channel-to-ground, MV safety critical)
- Operating Temperature: -20°C to +60°C (industrial/conformal coated)
- Power Draw: 24VDC ±20%, 5W max (local control power)
- Accuracy: ±0.5% FS (critical for drive regulation)
- Response Time: <10ms (fast fault detection)
- Dimensions: 120×80×25mm (compact DIN-rail or chassis mount)
- Certifications: CE, RoHS (industrial EMC compliance)
The Real-World Problem It Solves
MV drive IGCT stacks carry lethal high voltages/currents. Direct connection to low-voltage controllers causes burnout or arc flash. This board isolates and scales raw power signals to safe, readable levels.
Where you’ll typically find it:
- Paper mill MV motor drives (presses, dryers)
- Refinery large compressor/centrifuge drives
- Power plant auxiliary boiler feed pump drives
It eliminates MV-to-LV ground loops and ensures controller-safe signal levels.
Hardware Architecture & Under-the-Hood Logic
Passive/active hybrid signal conditioner—no onboard CPU. Dedicated to high-voltage isolation and precision scaling.
- Raw MV current/voltage taps land on high-side screw terminals.
- Precision shunts/PTs reduce signals to low-level analog.
- Opto-couplers provide 2500V isolation between MV and LV sides.
- Op-amp circuits scale isolated signals to 0–10VDC/4–20mA.
- LV-side terminals output conditioned signals to drive controller/DCS.
- Onboard MOVs suppress voltage spikes; no user-configurable jumpers.

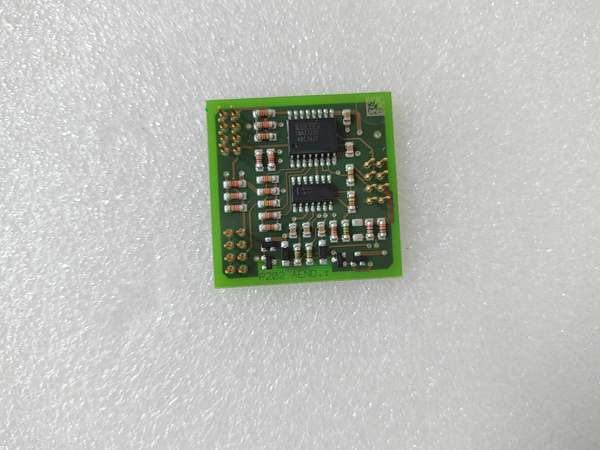

3BHB007209R0102
Field Service Pitfalls: What Rookies Get Wrong
Mixing Up High-Side vs. Low-Side Terminals
Rookies connect 24VDC control power to MV input terminals—destroys board and creates arc flash hazard.
- Field Rule: Labeled HV (red) = power tap; LV (black) = control power/output. Lockout/tagout before opening.
Ignoring Conformal Coating Damage
Scraping coating during handling exposes copper traces to corrosive mill air—leads to intermittent scaling errors.
- Quick Fix: Inspect coating pre-install; seal nicks with UV-curable conformal coating.
Overlooking Grounding Isolation
Rookies bond board ground to chassis ground—breaks isolation, causes ground loops and noisy reads.
- Field Rule: Float LV-side ground; connect chassis to safety earth only. No interconnection between HV and LV grounds.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability。
