Description
Product Core Brief

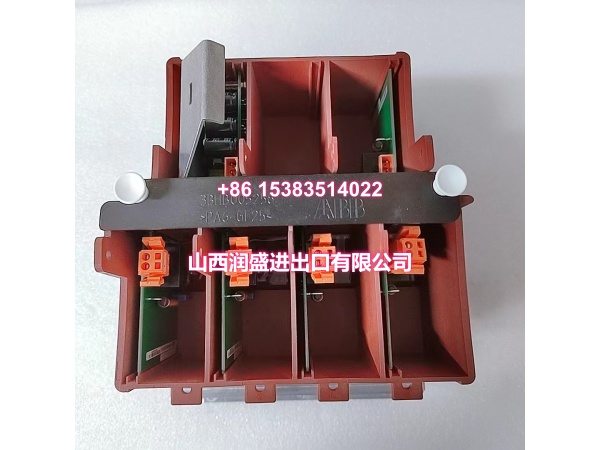

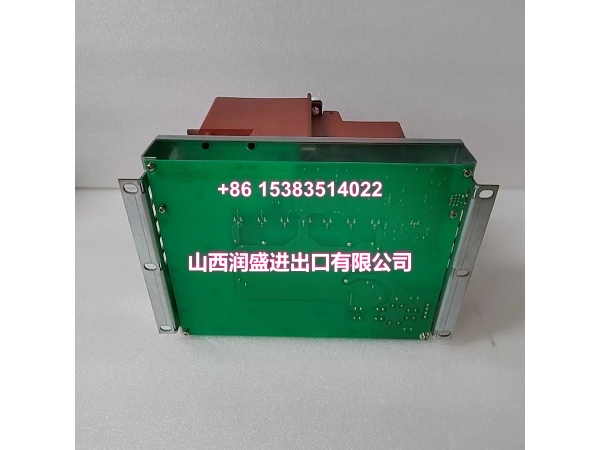

- Model: 3BHB005171R0101 (CVC750AE101)
- Brand: ABB
- Series: CVC750 Series
- Core Function: Industrial process control and automation module for DCS systems, handling real-time data acquisition and process variable management.
- Product Type: DCS Control Module / Process Controller
- Key Specs: Compatible with ABB DCS architectures | Industrial communication protocols | Real-time process control
- Condition: New Surplus
Key Technical Specifications
- Model Number: 3BHB005171R0101
- Board Designation:
- Product Type: DCS Control Module
- Brand: ABB
- Origin: Switzerland/Sweden
- Function: Process control, data acquisition, and automation management
- Application: Industrial DCS systems, process automation, plant control
- Communication: Supports industrial protocols (Ethernet, RS485, Modbus TCP/IP)
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Mounting: DIN rail or panel mount
- Ingress Protection: IP20
- Certification: CE certified
Product Introduction (No Fluff)
The ABB 3BHB005171R0101 (CVC750AE101) is a DCS control module engineered for reliable process control and real-time data acquisition in industrial automation environments. It serves as a core component in ABB DCS architectures, managing process variables and coordinating control actions across the plant.
What makes this module practical in the field is its compatibility with ABB’s DCS ecosystem and support for standard industrial communication protocols. It handles the critical task of acquiring sensor data, processing control logic, and outputting commands to field devices—all while maintaining stable communication with the rest of the control network. For maintenance teams replacing a failed controller in a DCS rack, this is the OEM part that restores process control without compatibility headaches.
QA & Testing SOP (Dynamic & Transparent)
Every unit goes through a structured verification process before shipping:
- Visual & Anti-Counterfeit Inspection: We examine PCB trace integrity, solder joint quality, component markings, and serial numbers against ABB’s known production records. Counterfeit boards often have subtle silkscreen errors or incorrect component placement.
- Connector Pin Inspection: Backplane connector pins are examined for straightness and corrosion. Bent pins are the most common cause of DOA failures with rack-mounted modules—we catch this before it reaches you.
- Power-On Self-Test: The module is powered up in a controlled test rack to verify POST completion and firmware initialization. We log boot time and check for any internal fault codes.
- Communication Verification: The board is checked for proper communication over supported protocols (Ethernet, RS485, Modbus TCP/IP) to confirm it registers correctly with the controller and exchanges data without errors.
- Functional Logic Test: We simulate process inputs and verify the module executes control logic correctly, producing the expected output responses. This confirms the processing circuitry is functioning within spec.
- Anti-Static Packaging: After passing all tests, the unit is sealed in ESD-safe packaging with desiccant to prevent moisture and static damage during transit.
Installation Pitfalls & Guide (Engineer to Engineer)
Replacing a DCS control module has a few landmines if you’re not careful:
❗ Firmware Version Match: Before installing, verify the replacement module’s firmware version matches your existing system. A firmware mismatch can cause communication failures or unexpected behavior with the rest of the DCS network.
❗ Backplane Pin Damage: When removing the old board, pull straight out. Angled extraction bends the backplane pins on the rack side, and those are nearly impossible to repair without replacing the entire rack segment. If pins are already bent, do not force the new board in.
❗ ESD Sensitivity: The control circuitry is vulnerable to electrostatic discharge. Always wear an ESD wrist strap and handle the board by its edges or front panel—never touch the PCB traces or connectors directly.
❗ Network Configuration: If your DCS uses specific network addressing or protocol settings, verify the replacement module is configured for the same settings. A mismatch here will cause communication timeouts that look like a hardware fault.
4-Step Replacement Guide:
- Pre-Install: Power down the rack, apply LOTO, and photograph existing wiring and DIP switch settings for reference. Confirm the replacement board’s firmware and configuration match your system.
- Removal: Label all field wiring, disconnect cables, release board latches, and pull straight out evenly.
- Install: Align the new board with the backplane guides, push firmly until fully seated, reconnect field wiring per your reference photo, and verify grounding.
- Power-On Test: Restore power, check for fault LEDs, verify communication registration with the controller, and run a functional test with known process inputs.
Technical FAQ
Is the 3BHB005171R0101 a direct replacement for my existing CVC750AE101 module? Yes. The 3BHB005171R0101 is the OEM order code for the CVC750AE101 control module. It’s a direct drop-in replacement in ABB DCS systems. Just verify your firmware version and network configuration match your existing system before installing.
What’s the warranty on surplus stock? We provide a 12-month warranty. Since this is new surplus—never commissioned in the field—you’re getting a module that hasn’t accumulated runtime hours. The warranty covers manufacturing defects and DOA failures.
Can this module integrate with non-ABB DCS systems? The CVC750AE101 is designed for ABB DCS architectures. It communicates via standard industrial protocols (Ethernet, RS485, Modbus TCP/IP), so integration with non-ABB systems is possible if the protocol and addressing are compatible. Verify your controller’s protocol support before connecting.
What industries commonly use this module? You’ll find the CVC750AE101 in manufacturing, energy, utilities, and process industries—anywhere DCS-based process control is critical to operations. It’s commonly used in chemical plants, power generation, water treatment, and oil & gas facilities.
How fast can you ship? Standard processing is 1-2 working days. We ship globally via DHL, UPS, FedEx, or TNT. Expedited options are available if you’re facing unplanned downtime and need the part urgently.
