Description
Product Core Brief
- Model: 3BHB004661R0101 (KUC711AE / KUC711AE101)
- Brand: ABB
- Series: Excitation System / Medium Voltage Drive Power Unit Series
- Core Function: Provides isolated gate drive power and high-speed fiber-optic trigger control for IGCT/IGBT power devices in excitation systems and medium voltage drives.
- Product Type: Gate Unit Power Supply / Exciter Control Module
- Key Specs: 24V DC System Input | Fiber-Optic Trigger Interface (≤50ns delay) | 5kV AC High-Voltage Isolation
- Condition: New Original / New Surplus
Key Technical Specifications
- Module Type: GUSP — Gate Unit Power Supply (KUC711AE101)
- System Input Power: 24V DC
- Output Current Range: 4–10A (version-dependent)
- Fiber-Optic Trigger Delay: ≤50ns
- High-Voltage Isolation: 5kV AC / 1min
- Built-in Processor: 32-bit RISC processor for gate unit logic control and fault detection
- Protection Features: Built-in overcurrent, overvoltage, and overtemperature protection with fault alarm
- Excitation Regulation Accuracy: ±0.1% FS
- Response Time: <1ms
- Mounting: Panel mount / power cabinet mount (standard module form factor)
- Operating Temperature: −20°C to +60°C
- Storage Temperature: −40°C to +85°C
- Humidity: 5%–95% RH (non-condensing)
- Protection Rating: IP20
- Weight: ≈4.6 kg
- Dimensions: ~330 × 210 × 230 mm
- Certifications: CE and applicable industrial safety standards
- Country of Origin: Switzerland / Sweden
Product Introduction

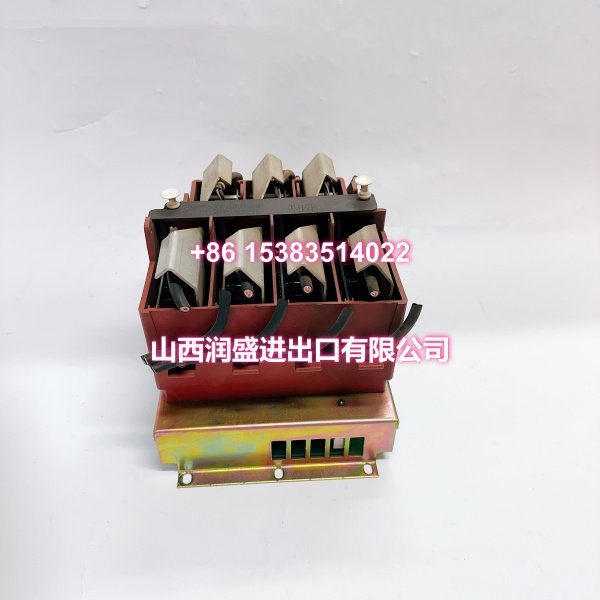

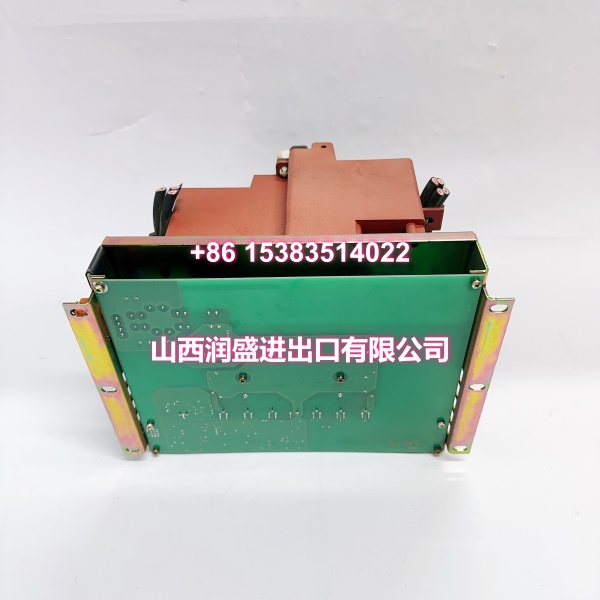

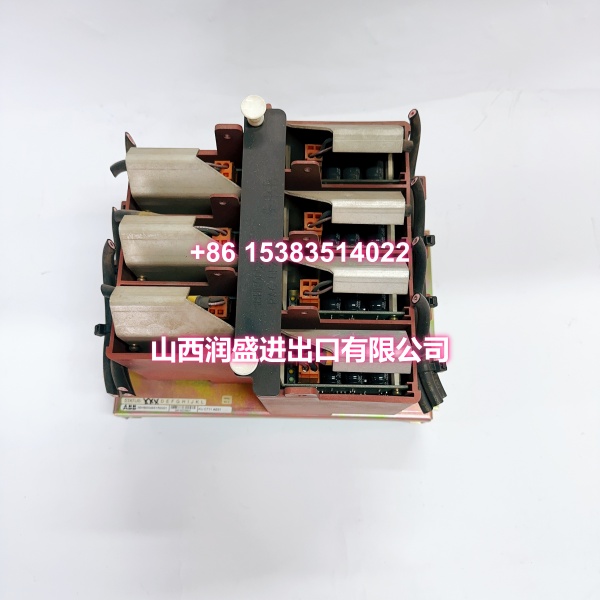

The ABB 3BHB004661R0101 (KUC711AE / KUC711AE101) is a Gate Unit Power Supply (GUSP) module engineered for ABB excitation systems and medium voltage drive platforms. It serves as the critical interface between the low-voltage control circuit and the high-voltage power stage—providing isolated gate drive power to IGCT/IGBT power devices while handling high-speed fiber-optic trigger signaling.
What makes this module indispensable in power electronics applications is its dual role: it both powers the gate driver boards and executes gate unit logic control via its built-in 32-bit RISC processor. The 5kV AC galvanic isolation between the control and power circuits protects sensitive control electronics from high-voltage transients, while the ≤50ns fiber-optic trigger delay ensures precise, deterministic switching timing—critical for maintaining waveform quality in medium voltage converters.
This module is widely deployed in ABB ACS6000 and ACS1000 medium voltage drives, synchronous generator excitation control systems, and SVC static reactive power compensation devices across power generation, steel metallurgy, mining, and petrochemical industries. As a discontinued legacy spare part, genuine units are increasingly scarce in the market, making verified stock a high-priority item for MRO procurement programs.
QA & Testing SOP
Every unit undergoes the following verification before shipment:
- Visual Inspection: Check for physical damage to the module housing, corrosion on power terminals and fiber-optic connectors, or signs of thermal stress on the PCB and heatsink interface. Verify all labeling is legible and matches OEM specifications.
- Anti-Counterfeit Verification: Validate serial numbers, model designation (KUC711AE101), part number (3BHB004661R0101), and country-of-origin markings against OEM records. Counterfeit gate drive modules pose catastrophic failure risks in high-voltage applications.
- Power-On Test: Apply 24V DC system input and verify stable boot-up with correct LED status indication. Confirm no abnormal heat generation or component noise.
- 24V Output Verification: Measure the module’s 24V DC output under load to confirm it supplies rated current within specification for powering associated gate driver boards.
- Fiber-Optic Trigger Test: Inject fiber-optic trigger signals and verify the module produces correct gate trigger pulses at the expected timing (≤50ns delay) and amplitude using an oscilloscope.
- Isolation Verification: Perform a hi-pot test to confirm 5kV AC galvanic isolation integrity between the low-voltage control side and the high-voltage power side.
- Protection Function Test: Simulate overcurrent, overvoltage, and overtemperature conditions to confirm the module’s built-in protection circuits trip correctly and generate fault alarms.
- ESD-Safe Packaging: Seal in anti-static bags with foam padding for transit protection. Gate drive modules are highly sensitive to ESD damage.
Installation Pitfalls & Guide
❗ Critical Warnings:
- Fiber-Optic Cable Handling: The fiber-optic trigger interface is extremely sensitive to contamination and physical damage. Never touch the fiber-optic connector end faces with bare hands. Use proper fiber cleaning tools and inspect connectors before mating. A contaminated fiber link is the most common cause of intermittent gate trigger faults.
- High-Voltage Isolation Integrity: This module operates as the safety barrier between low-voltage control and medium/high-voltage power circuits. Never bypass or modify the isolation design. Verify proper creepage and clearance distances per your installation standard before energizing.
- 24V Supply Quality: The module’s 24V DC input must be clean and stable. Voltage sags or ripple on the 24V supply can cause gate driver undervoltage faults and erratic triggering. Use a regulated, filtered 24V supply with adequate current capacity.
- Thermal Management: At ~4.6 kg with internal power electronics, this module generates heat during operation. Verify adequate airflow in the power cabinet and confirm the operating ambient temperature stays within the −20°C to +60°C range.
- Version Suffix Matching: The part number suffix matters—3BHB004661R0101 is not interchangeable with other R01xx variants. Always verify the exact part number against your system documentation before ordering.
- High-Voltage Safety: This module is installed in medium voltage power cabinets. Always follow lockout/tagout procedures and verify zero energy state on all terminals before handling.
Replacement Steps:
- Pre-Install: De-energize the entire power cabinet and verify zero voltage on all terminals. Confirm the replacement module’s part number (3BHB004661R0101) and firmware version match your system requirements.
- Removal: Disconnect all control wiring, fiber-optic cables, and power connections. Remove the module from its mounting, taking care not to damage the fiber-optic connectors or terminal blocks.
- Install: Mount the new module securely per OEM torque specifications. Reconnect all wiring, double-checking terminal tightness and fiber-optic cable routing (maintain minimum bend radius). Inspect all fiber connectors for cleanliness before final mating.
- Power-On Test: Restore 24V DC control power first and verify correct LED status. Perform a low-voltage trigger test before applying full power. Monitor for abnormal heat, unusual noise, or fault indications during initial operation.
Technical FAQ
Q: What systems is this module compatible with? A: The 3BHB004661R0101 (KUC711AE) is used in ABB ACS6000 and ACS1000 medium voltage drives, synchronous generator excitation control systems, and SVC static reactive power compensation devices. Verify your specific system model and configuration before ordering. Cross-reference with your OEM hardware manual.
Q: What does “GUSP” mean? A: GUSP stands for “Gate Unit Power Supply.” This module provides isolated power to the gate driver boards of IGCT/IGBT power devices and handles the fiber-optic trigger signal interface between the control system and the power stage.
Q: What’s the difference between KUC711AE and KUC711AE101? A: KUC711AE101 is the full model designation; KUC711AE is the abbreviated form. Both refer to the same module with part number 3BHB004661R0101. The “AE101” suffix is ABB’s internal物料编码 that identifies the specific hardware revision and firmware compatibility.
Q: What’s the difference between new original and new surplus? A: New original is factory-sealed from OEM distribution channels with full documentation. New surplus is unused OEM stock from decommissioned projects or excess inventory—functionally identical but may lack original retail packaging. For gate drive modules, always verify the part number suffix and manufacturing date regardless of condition, as this is a discontinued legacy part.
Q: Can I substitute this with a different R01xx version? A: No. The R0101 suffix is specific to this hardware/firmware revision. Using an incorrect variant can cause gate trigger timing errors, isolation failures, or catastrophic damage to the power stage. Always match the exact part number specified in your system documentation.
Q: What warranty do you offer? A: Standard 12-month warranty covering manufacturing defects and DOA units. Does not cover damage from improper installation, overvoltage, ESD, or use outside the module’s specified operating conditions.
