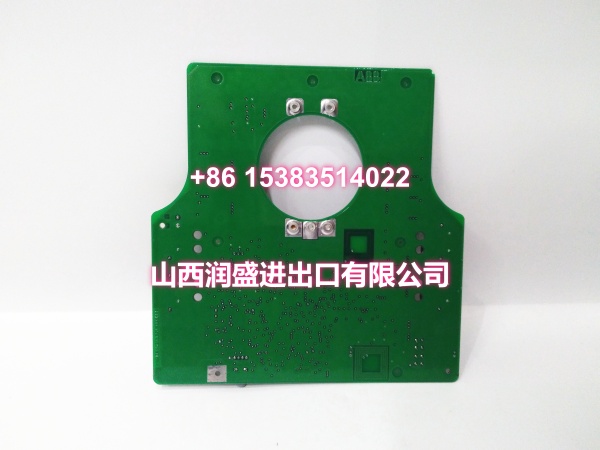

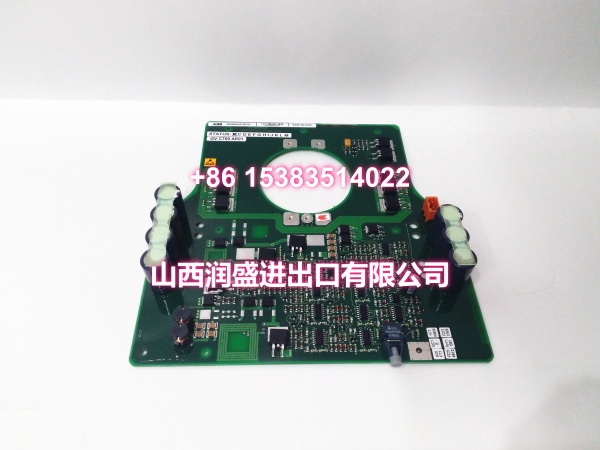

ABB 3BHB004027R0101 | SAFT133 IGCT Power Module | New Surplus Stock

Description

Product Core Brief

• Model: 3BHB004027R0101 (SAFT133)
• Brand: ABB
• Series: IGCT Power Semiconductor Series
• Core Function: High-power switching and current control module combining GTO turn-off capability with IGBT gate-drive simplicity for medium-voltage industrial drive applications.
• Product Type: IGCT (Integrated Gate-Commutated Thyristor) Power Module
• Key Specs: High blocking voltage | Low conduction & switching losses | Integrated gate driver & protection
• Condition: New Surplus

Key Technical Specifications

• Model Number: 3BHB004027R0101
• Board Designation:
• Product Type: IGCT Power Module
• Brand: ABB
• Origin: Switzerland/Sweden
• Device Technology: IGCT (Integrated Gate-Commutated Thyristor)
• Blocking Voltage: Up to 4.5–6.5 kV (IGCT class)
• Switching Current: Up to 3.8 kA
• Conduction Loss: Low (thyristor-level on-state voltage)
• Switching Loss: Low (snubberless turn-off capability)
• Integrated Features: IGCT chip, anti-parallel diode, gate driver circuit, thermal management
• Protection: Over-temperature, over-current, over-voltage protection
• Operating Temperature: -40°C to +125°C (junction)
• Storage Temperature: -40°C to +85°C
• Application: Medium-voltage drives (ACS800/ACS1000), power conversion, industrial automation
• Certification: CE

Product Introduction (No Fluff)

The ABB 3BHB004027R0101 (SAFT133) is an IGCT power module engineered for high-power switching in medium-voltage industrial drive systems. It merges the stable turn-off capability of transistors with the low conduction loss of thyristors, making it a core component in ABB’s ACS800 and ACS1000 drive platforms as well as custom power conversion systems.

What separates this module from a standard IGBT stack is the snubberless operation—no external snubber circuits needed for turn-off, which means fewer components, lower losses, and a more compact converter design. For maintenance teams replacing a failed power module in a medium-voltage drive cabinet, this is the OEM part that keeps the topology intact without redesigning the gate drive or thermal management.

QA & Testing SOP (Dynamic & Transparent)

IGCT modules are precision power semiconductors. Here’s how we verify every unit:

1. Visual & Anti-Counterfeit Inspection: We examine the press-pack housing for physical damage, verify component markings and serial numbers against ABB’s production records, and check for signs of rework or counterfeit replacement. Genuine ABB IGCT modules have specific laser-etched identifiers that fakes often get wrong.
2. Gate Driver Functional Test: The integrated gate driver circuit is powered up and tested for correct trigger pulse response. We verify the gate triggering voltage range and confirm the driver outputs the correct turn-on/turn-off pulse profiles using an oscilloscope.
3. Forward Voltage Drop Test: Using a curve tracer, we measure the on-state voltage (V_T) at rated current to confirm the IGCT chip’s conduction characteristics are within ABB’s specified range. Elevated V_T indicates chip degradation.
4. Blocking Voltage Verification: We apply a controlled reverse bias to verify the module’s blocking capability meets its rated voltage class. This catches any latent defects in the semiconductor junction.
5. Thermal Interface Inspection: The thermal contact surfaces are inspected for flatness and integrity. A damaged thermal interface will cause hot spots and premature failure once installed in a drive stack.
6. Anti-Static Packaging: After passing all tests, the module is sealed in ESD-safe packaging with desiccant and shock-absorbing material to prevent damage during transit.

Installation Pitfalls & Guide (Engineer to Engineer)

IGCT modules are not like swapping a standard IGBT. Get this wrong and you’ll destroy the module before it even sees a load cycle.

❗ Thermal Compound Application: The press-pack module requires a precise, even layer of thermal compound between the module and the heatsink. Too much creates an insulating layer; too little causes hot spots. Follow ABB’s specified thickness (typically 50–100 μm). Never reuse old thermal compound from the removed module.

❗ Mounting Torque: IGCT press-pack modules require specific bolt torque values to ensure proper thermal and electrical contact. Under-torquing causes thermal runaway; over-torquing cracks the ceramic substrate. Use a calibrated torque wrench and follow the sequence specified in the ABB installation manual.

❗ Gate Drive Wiring: The gate driver connections are extremely sensitive to inductance. Keep gate leads as short as possible and twisted. If you’re replacing a module in an existing stack, verify the gate wiring hasn’t been modified or damaged during removal of the old unit.

❗ ESD and Mechanical Shock: IGCT modules are press-pack devices with fragile internal bond wires. Dropping the module or applying mechanical shock can break internal connections that won’t show up until the module is under load. Handle with care and never drop-test.

4-Step Replacement Guide:

1. Pre-Install: De-energize the drive system, apply LOTO, discharge DC bus capacitors, and verify zero voltage. Clean the heatsink surface thoroughly and apply fresh thermal compound per ABB specifications.
2. Removal: Disconnect gate driver wiring, loosen mounting bolts in the specified sequence, and carefully lift the failed module straight out. Note the orientation.
3. Install: Place the new module in the correct orientation, apply mounting bolts finger-tight, then torque to specification in the correct sequence. Reconnect gate driver wiring and verify all connections.
4. Power-On Test: Restore control power first (without main power), verify gate driver signals with an oscilloscope, then apply main power at reduced voltage and monitor for abnormal heating or fault codes before ramping to full load.

Technical FAQ

Is the 3BHB004027R0101 a direct replacement for my existing SAFT133 module? Yes. The 3BHB004027R0101 is the OEM order code for the SAFT133 IGCT module. It’s a direct drop-in replacement in ABB drive systems. Just verify your drive firmware supports the module revision you’re installing—older firmware may need an update for newer module revisions.

What’s the warranty on surplus stock? We provide a 12-month warranty. Since this is new surplus—never commissioned in the field—you’re getting a module with zero thermal cycling history. The warranty covers manufacturing defects and DOA failures.

Can I substitute this with an IGBT module instead? Not without redesigning the converter. IGCT and IGBT modules have fundamentally different gate drive requirements, switching characteristics, and thermal profiles. The gate driver board in your drive is designed specifically for IGCT trigger pulses. Swapping to IGBT would require replacing the gate driver, recalculating snubber circuits, and likely modifying the control firmware.

What drive systems commonly use this module? You’ll find the SAFT133 in ABB ACS800 and ACS1000 medium-voltage drive systems, as well as in custom power conversion equipment used in steel mills, mining operations, power generation, marine propulsion, and large industrial motor drives.

How fast can you ship? Standard processing is 1-2 working days. We ship globally via DHL, UPS, FedEx, or TNT. Given the value and sensitivity of IGCT modules, we use specialized packaging with shock and ESD protection. Expedited options are available for critical downtime situations.
