Description
Key Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Digital I/O Configuration | 8 fixed 24VDC digital inputs, 16 configurable digital I/O channels |
| Power Supply | 20.4 – 28.8VDC; rated voltage 24VDC |
| Output Performance | Transistor output, maximum output current 0.5A per channel |
| Communication Interface | CS31 slave interface, RS485 serial port; additional I/O – bus serial port |
| Counter Performance | 2 hardware counters, maximum input frequency 50kHz |
| Signal Delay Time | 0.1 – 32ms (adjustable) |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -40°C – 70°C |
| Protection Rating | IP20 |
| Dimensions (W×H×D) | 67.5mm×76mm×62mm |
| Net Weight | Approximately 0.11 – 0.12kg |
| Mounting Method | Suitable for 35×15mm DIN rail installation in line with IEC 60715 standards |

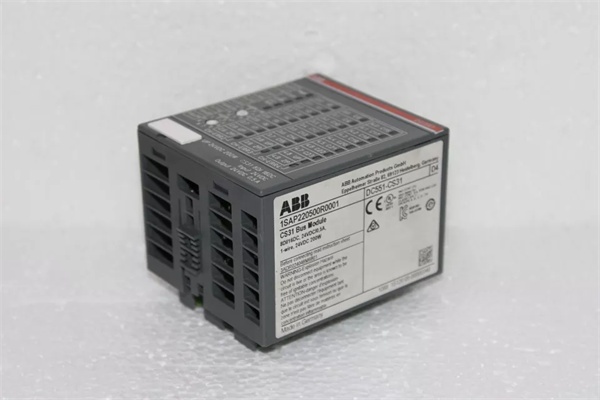

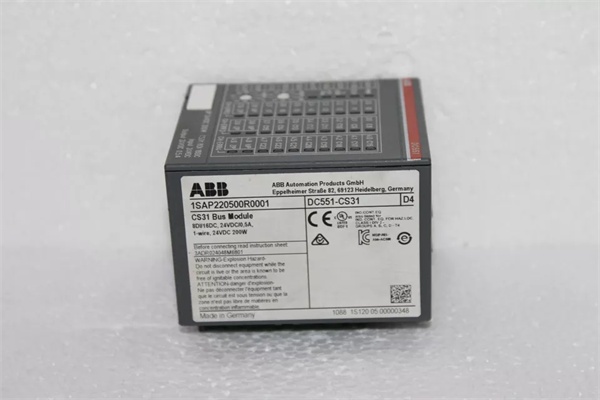

ABB DC551-CS31 1SAP220500R0001
Field Application & Problem Solved
In industrial scenarios like automobile assembly lines and electronic component processing workshops, there are often problems such as limited I/O interfaces of the control system, difficulty in matching different types of digital signal devices, and unstable signal transmission in complex environments. For example, a small electronic parts factory once encountered the problem that the original control module had insufficient input ports when adding a product inspection station. The scattered signal acquisition devices led to delayed data transmission, resulting in product inspection omissions.
The DC551 – CS31 1SAP220500R0001 module solves these pain points well. Its 16 configurable digital I/O channels can be flexibly adjusted according to the number of on – site sensors and actuators, eliminating the trouble of insufficient interface quantity. The integrated CS31 slave communication interface and RS485 interface ensure stable connection with the AC500 control system, and the optimized anti – interference design reduces signal errors in workshops with many electrical equipment. In the material conveying system of a food processing factory, this module collects the position signals of conveyor belt sensors and outputs control signals to solenoid valves. After application, the failure rate of the conveying system due to signal problems is reduced by more than 70%. In addition, it can be expanded with up to 7 I/O modules, which is convenient for enterprises to upgrade the production line without replacing the main module, saving transformation costs.
Installation & Maintenance Pitfalls (Expert Tips)
- Pay Attention to Voltage Compatibility During Power – on: The module’s power supply range is 20.4 – 28.8VDC. Many users mistakenly connect it to 110VAC power supply during installation, which directly burns out the internal circuit. Before power – on, use a multimeter to confirm that the power supply voltage is within the 24VDC rated range. It is recommended to install a fuse on the power supply line to prevent damage caused by voltage surges.
- Correctly Configure Configurable I/O Channels: The 16 configurable channels need to be set through the AC500 Control Builder PS501 – Prog software. Novice operators often ignore the configuration steps, resulting in the channels being unable to work as expected. For example, when connecting a proximity switch, the corresponding channel should be set to the input mode; when connecting a small relay, it should be set to the output mode, and the configuration should be saved and synchronized to the module.
- Standardize DIN Rail Installation: The module needs to be installed on a 35×15mm DIN rail. Some installers force the module into a non – standard rail, which causes deformation of the module shell and poor contact with the backplane. When installing horizontally, keep the ventilation space around the module; if vertical installation is required, derate the module’s working parameters, such as reducing the continuous working time of high – current output channels.
- Avoid Counter Signal Interference: The maximum input frequency of the module’s fast counter is 50kHz. When wiring the counter signal line, keep it away from high – power motor lines and inverter lines. The distance should be more than 20cm. It is better to use shielded cables, and ground the shield layer at a single point to prevent electromagnetic interference from causing the counter to count inaccurately. For example, in a packaging machine’s counting system, the counting error caused by interference can be solved by optimizing the wiring.

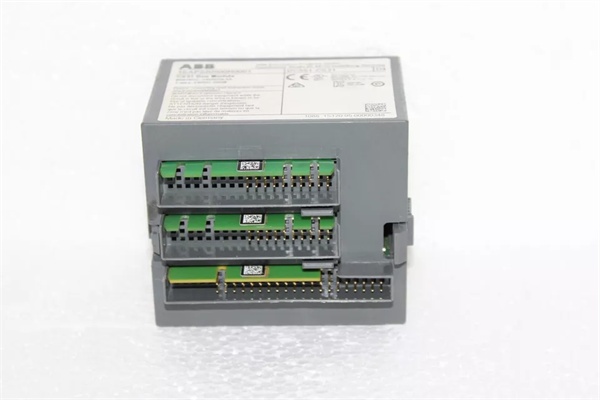

ABB DC551-CS31 1SAP220500R0001
Technical Deep Dive & Overview
The ABB DC551 – CS31 1SAP220500R0001 is a highly integrated bus module that combines signal acquisition, output control and communication functions. Its core lies in the CS31 slave communication architecture and flexible I/O configuration. The CS31 bus interface ensures fast data interaction with the upper – level control system, and the RS485 interface expands its compatibility with other industrial devices, which is suitable for the interconnection needs of small and medium – sized industrial control networks.
In terms of hardware design, the module is equipped with 2 hardware counters with a maximum input frequency of 50kHz, which can directly collect high – speed pulse signals from encoders and other devices without additional counter modules, simplifying the system structure. The transistor output design has the advantages of fast switching speed and long service life, which can stably drive small – power actuators such as relays and solenoid valves. The 0.1 – 32ms adjustable delay time can be targeted to set parameters according to the response speed of different on – site equipment, avoiding misoperation caused by signal jitter.
In software matching, it needs to be used with the AC500 Control Builder PS501 – Prog programming software. Engineers can configure channel functions, adjust delay parameters and monitor module status through the software. The module’s IP20 protection level is suitable for installation in indoor control cabinets, and its compact size (about 67.5mm×76mm×62mm) saves installation space. It has obtained multiple international certifications such as CE and CSA, which can meet the use standards of industrial fields in different regions and is a cost – effective and reliable choice for small and medium – sized industrial automation systems.
