Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 1KGT011900R0001 |
| Manufacturer | ABB |
| Product Category | Power Supply Unit |
| Operating Voltage | 48-220V DC |
| Output Voltage | 5V DC, 24V DC |
| Rated Current | 16A |
| Breaking Capacity | 6kA |
| Number of Poles | 3P |
| Mounting Method | DIN rail installation |
| Power | 85W |
| Dimensions | 14.5cm x 5.5cm x 20.4cm |
| Weight | 0.666 kg |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Certifications | CE, UL, IECEx |
| Protection Class | IP20 |
1KGT011900R0001
Product Introduction

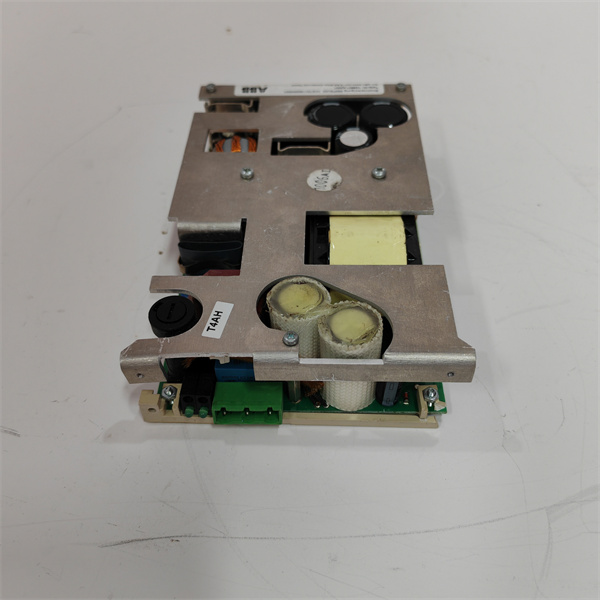

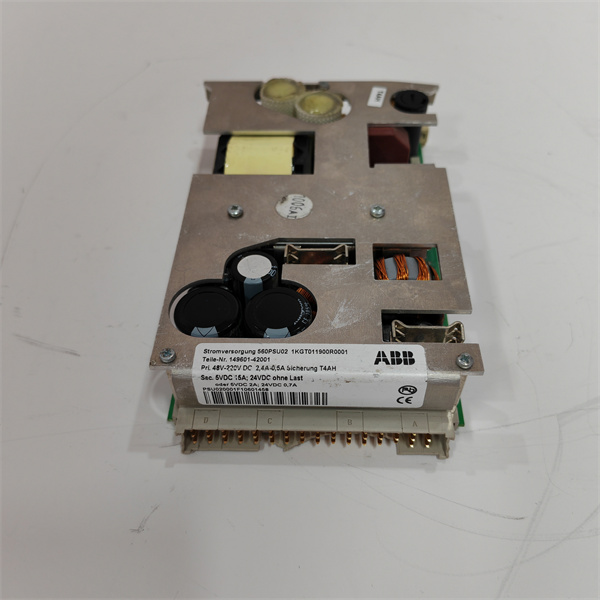

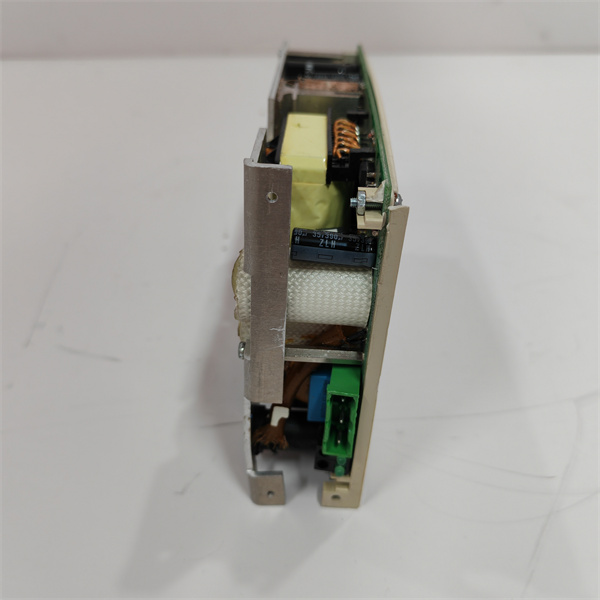

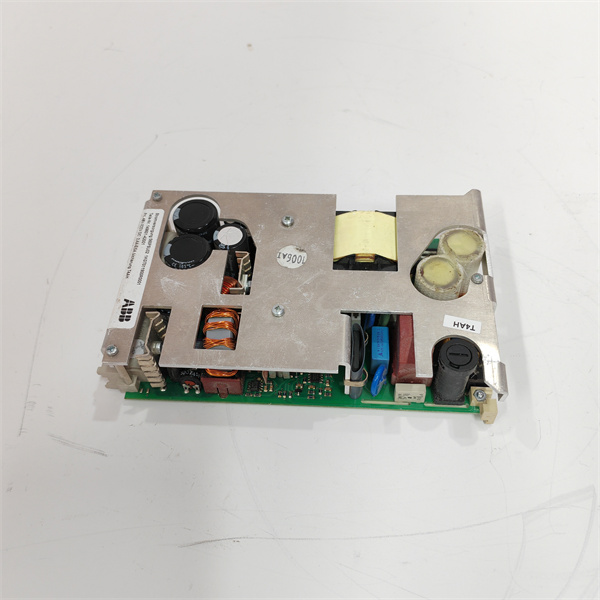

The ABB 1KGT011900R0001 is a high-performance power supply unit designed for the RTU560 series sub-rack. It provides stable power support for the RTU (Remote Terminal Unit) sub-rack, ensuring the normal operation of the system。
Core Advantages and Technical Highlights
High Reliability
The ABB 1KGT011900R0001 uses high-quality electronic components and undergoes rigorous testing to ensure long-term trouble-free operation。
High Efficiency
It employs advanced power conversion technology to improve energy conversion efficiency。
Redundant Configuration
The unit supports redundant power supply configurations to enhance system availability。
Modular Design
The design allows for easy installation and maintenance。
Multiple Protection Functions
The unit includes overcurrent, overvoltage, and short-circuit protection to ensure equipment safety。
1KGT011900R0001
Typical Application Scenarios
The ABB 1KGT011900R0001 is widely used in:
-
Industrial Automation: For power support in control equipment。
-
Power Systems: For supplying power to measuring instruments and control equipment。
-
Transportation and Construction: For applications in rail transit, building automation, and other fields。
Related Model Recommendations
-
ABB 07AI91: An analog input module suitable for applications requiring precise analog signal processing。
-
ABB PM581: A PLC module suitable for small systems。
-
ABB PM866K01: A PLC module suitable for large-scale automation。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the unit in place. Connect the power supply unit to the control system according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the unit for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation。
