Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 07DC92 |
| Manufacturer | ABB |
| Product Category | Digital Input/Output Module |
| Input Voltage | 24V DC |
| Output Voltage | 24V DC |
| Input Channels | 32 configurable digital inputs/outputs |
| Output Channels | 32 configurable digital inputs/outputs |
| Output Current | 0.5A per output |
| Operating Temperature Range | 0°C to 55°C |
| Humidity Tolerance | 5% to 95% (non-condensing) |
| Dimensions | 85 mm x 140 mm x 120 mm |
| Weight | 0.47 kg |
| Certifications | UL, CE, ISO 9001 |
| Communication Protocol | CS31 system bus (EIA RS-485) |

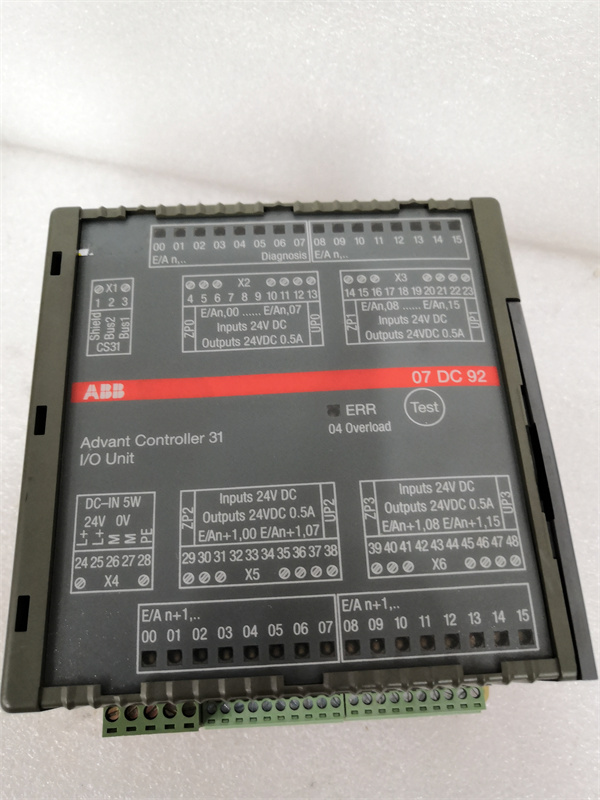

ABB 07DC92
Product Introduction
The ABB 07DC92 is a high-performance digital input/output module designed for industrial automation and control systems. It is part of the ABB Advant Controller 31 (AC31) series and is widely used in power generation, oil and gas, and manufacturing industries。
Core Advantages and Technical Highlights
High Precision and Reliability
The ABB 07DC92 features high precision and reliability, with 32 configurable digital inputs/outputs. Each input/output can be individually configured as an input, output, or re-readable output (combined input/output)。
Robust and Flexible Design
The module is designed to withstand harsh industrial environments, with an operating temperature range of 0°C to 55°C and an isolation voltage of 1500 Vrms. It supports flexible configuration, allowing users to set different input/output types for each channel。
Advanced Diagnostics
The module includes self-diagnostic capabilities, allowing real-time monitoring of its operating status. It can send alarm signals and transmit fault information to the control system for quick troubleshooting。
ABB 07DC92
Typical Application Scenarios
The ABB 07DC92 is widely used in:
-
Power Generation: For monitoring and controlling critical processes in power plants。
-
Oil and Gas: For precise control of gas turbines and other critical equipment。
-
Manufacturing: For controlling actuators, relays, and other industrial devices in manufacturing and chemical processing。
Related Model Recommendations
-
ABB 07AI91: An analog input module suitable for applications requiring precise analog signal processing。
-
ABB PM581: A PLC module suitable for small systems。
-
ABB PM866K01: A PLC module suitable for large-scale automation。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation。
