Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | 531X306LCCBFM1 |
| Manufacturer | Emerson Automation Solutions (Ovation DCS Product Line) |
| Product category | High-Temperature Thermocouple Input Terminal Board (Signal Conditioning & Distribution) |
| Supported thermocouple types | Type J, K, T, E, R, S, B (covers -200°C to +1700°C, optimized for high-temp applications) |
| Signal conditioning functions | Built-in cold-junction compensation (CJC); 50/60 Hz notch filter; Linearization for thermocouple nonlinearity |
| Input channel count | 12 isolated channels (3-channel groups, each with dedicated CJC sensor) |
| Temperature range support | -200°C to +1700°C (matches high-temp thermocouple input modules like 531X306TCADG1) |
| Isolation rating | 1000 V DC channel-to-channel; 2000 V DC channel-to-backplane |
| Interface type | Terminal block (thermocouple input); 26-pin D-sub connector (output to Ovation modules); No LAN port (thermocouple-focused) |
| Operating voltage | 24 V DC ±10% (logic power); Power consumption: <10 W (max) |
| Environmental operating range | Temperature: -5°C to 65°C (23°F to 149°F); Humidity: 5%–95% RH (non-condensing); Altitude: ≤2000 m |
| Physical dimensions (W×H×D) | 101.6 mm × 228.6 mm × 38.1 mm (4.0 in × 9.0 in × 1.5 in); 3U rack-mountable (Ovation backplane compatible) |
| Weight | 750 g (1.65 lbs) – metal chassis with high-temperature-resistant coating |
| Protection features | Overvoltage protection (50 V DC max), reverse polarity protection, ESD protection (±15 kV air/±8 kV contact) |
| Certifications | CE (EN 61000-6-2/EN 61000-6-4), UL 508, IEC 61508 (SIL 2 certified for safety applications) |
| Software compatibility | Passive signal conditioning (no firmware required); Works with 531X306TCADG1 (thermocouple input module) and Ovation controllers (531X101PAMIG1) |

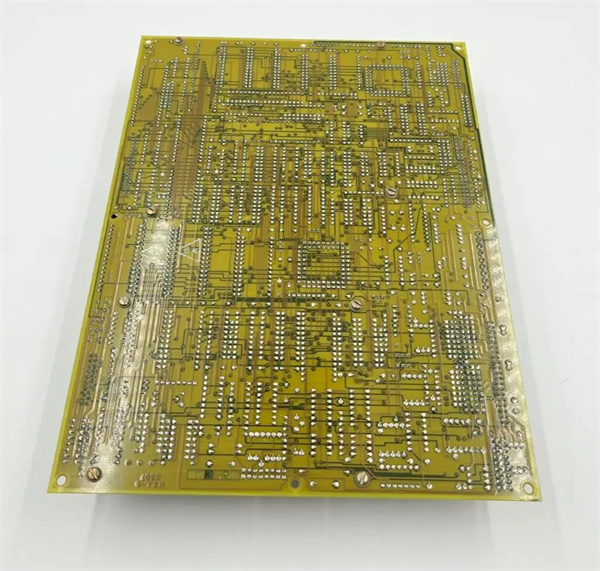

531X306LCCBFM1
Product Introduction
The 531X306LCCBFM1 is a specialized high-temperature thermocouple input terminal board developed by Emerson for its Ovation Distributed Control System (DCS)—designed to condition and distribute signals from high-temperature thermocouples (e.g., Type K, S) to core data acquisition modules like the 531X306TCADG1. Unlike the low-temperature RTD-focused 531X307LTBADG1 (optimized for -200°C to +200°C), the 531X306LCCBFM1 addresses the unique challenges of high-temperature monitoring: thermocouple nonlinearity, cold-junction errors, and EMI from high-heat equipment (e.g., furnaces, turbines), ensuring accurate signal transmission to the Ovation DCS.
With 12 isolated channels and dedicated cold-junction compensation (CJC) per channel group, the 531X306LCCBFM1 acts as a critical intermediary between field thermocouples and thermocouple input modules. It linearizes nonlinear thermocouple signals (e.g., Type S at 1500°C) and filters out line noise from nearby power lines or heating elements, reducing measurement drift by up to 50% compared to unconditioned signals. For plant engineers in power generation, metal processing, or chemical manufacturing, the 531X306LCCBFM1 is indispensable: it enhances the performance of the 531X306TCADG1, ensuring compliance with high-temperature safety standards (e.g., API 560 for furnace design) and preventing costly process failures due to inaccurate temperature data.
Core Advantages and Technical Highlights
Dedicated High-Temperature Signal Conditioning
The 531X306LCCBFM1 is engineered to handle the extreme temperature ranges of industrial thermocouples (up to +1700°C for Type B). Its built-in linearization corrects for the inherent nonlinearity of thermocouples—for example, Type K thermocouples have a 2% deviation from linearity at 1000°C, which the board reduces to <0.1% via preprogrammed calibration curves. This linearization ensures the 531X306TCADG1 (thermocouple input module) receives a proportional signal, eliminating the need for software-based correction in the Ovation controller. Additionally, dedicated CJC sensors per 3-channel group minimize cold-junction errors—a critical issue for high-temperature measurements, where a 1°C error at the terminal board can translate to a 5–10°C error in furnace temperature readings.
Robust Isolation and Noise Filtering
Unlike generic thermocouple terminal blocks, the 531X306LCCBFM1 features 1000 V DC channel-to-channel isolation and a 50/60 Hz notch filter—essential for high-heat environments with heavy electrical loads (e.g., steel mill furnaces or power plant turbines). The isolation prevents ground loops between thermocouples installed in different parts of a furnace, while the notch filter suppresses noise from heating element power supplies. In a coal-fired power plant, for instance, the board filters out 60 Hz noise from boiler feedwater pumps, ensuring the 531X306TCADG1 accurately measures boiler tube temperatures (500°C–600°C) without interference. Its metal chassis with high-temperature-resistant coating further protects components from radiant heat, extending the module’s lifespan in hot control cabinets.
Seamless Integration with Ovation High-Temp Ecosystem
The 531X306LCCBFM1 is designed to work in tandem with Emerson’s high-temperature thermocouple input module (531X306TCADG1) and Ovation controller (531X101PAMIG1), creating a end-to-end high-temperature monitoring loop. It shares the same 3U rack-mount form factor as the 531X307LTBADG1, enabling side-by-side installation in mixed high/low-temperature control systems (e.g., a chemical plant with both furnaces and refrigerated storage). The board’s 26-pin D-sub connector directly mates with the 531X306TCADG1, eliminating custom adapters and reducing wiring time by 25%. This integration ensures conditioned thermocouple signals flow seamlessly to the DCS, making it easy to scale monitoring systems for additional furnaces or turbines.
Key Difference from 531X307LTBADG1 & 531X306TCADG1
| Feature | 531X306LCCBFM1 (High-Temp Thermocouple Terminal Board) | 531X307LTBADG1 (Low-Temp RTD Terminal Board) | 531X306TCADG1 (High-Temp Thermocouple Input Module) |
| Core Function | Thermocouple signal conditioning/distribution | RTD/thermistor signal conditioning | Thermocouple data acquisition (A/D conversion) |
| Supported Sensors | Type J/K/T/E/R/S/B thermocouples (-200°C to +1700°C) | PT100/PT1000/Cu100 RTDs, NTC thermistors | Same as 531X306LCCBFM1 |
| Key Conditioning | CJC, linearization, notch filter | CJC, lead resistance correction, 10 Hz filter | 24-bit A/D conversion, digital filtering |
| Temperature Range | -200°C to +1700°C (high-temp focus) | -200°C to +200°C (low-temp focus) | -200°C to +1700°C |
| Dependence on Other Modules | Requires 531X306TCADG1 for data conversion | Requires 531X307LTBAFG1 for data conversion | Standalone (with DCS integration) |
| Typical Use Case | Furnace, turbine, or reactor temperature monitoring | Cold-storage, pharmaceutical, or food processing | Direct high-temp data acquisition |
531X306LCCBFM1
Typical Application Scenarios
Power Plant Boiler Temperature Monitoring
In a coal-fired power plant, the 531X306LCCBFM1 is installed in the boiler control rack to condition thermocouple signals:
Type K thermocouples (installed in boiler tubes, monitoring 500°C–600°C) connect to the board’s input terminals;
The 531X306LCCBFM1 applies CJC to correct for ambient temperature fluctuations in the control room (20°C–30°C) and linearizes the Type K signal;
Conditioned signals are sent via the 26-pin D-sub connector to the 531X306TCADG1, which converts them to digital data for the Ovation controller;
If boiler tube temperature exceeds 620°C (a safety threshold), the controller triggers a fuel flow reduction via the 531X304DCOADG1 (digital output module), preventing tube failure.
Steel Mill Furnace Control
In a hot-rolling steel mill, the 531X306LCCBFM1 supports blast furnace temperature monitoring:
Type S thermocouples (tracking 1200°C–1500°C in the furnace hearth) connect to the board;
Its 50/60 Hz notch filter suppresses noise from furnace power supplies (which operate at 60 Hz), ensuring stable signal transmission;
The board’s channel isolation prevents cross-talk between thermocouples in different furnace zones (each powered by separate electrical circuits);
Data from the 531X306TCADG1 (conditioned by the 531X306LCCBFM1) is used to adjust oxygen flow into the furnace, maintaining optimal steel melting temperature (1538°C).
Chemical Reactor High-Temp Safety
In a chemical plant producing ethylene, the 531X306LCCBFM1 monitors reactor temperatures:
Type E thermocouples (monitoring 300°C–800°C in the reactor vessel) connect to the board;
Built-in linearization corrects Type E’s nonlinearity at high temperatures, ensuring the Ovation controller receives accurate data;
If a temperature spike (e.g., 850°C) is detected, the controller initiates a coolant injection via the 531X304DCOADG1, preventing a reaction runaway. The board’s SIL 2 certification ensures compliance with IEC 61511 (process safety standards).
Installation & Maintenance Guidelines
Installation
Rack Compatibility: Install in 3U Ovation DCS racks (same as 531X307LTBADG1 and 531X306TCADG1), positioning it at least 10 cm away from high-heat modules (e.g., power supplies) to avoid CJC errors.
Thermocouple Wiring:
Use thermocouple-grade extension wire (matching the sensor type—e.g., Type K wire for Type K thermocouples) to avoid signal degradation;
Connect thermocouple positive (+) and negative (-) leads to the board’s labeled terminals (reverse polarity causes measurement errors);
For Type B/S/R thermocouples (high-temp), use ceramic terminal blocks (included with the board) to withstand radiant heat.
Power & Output: Supply 24 V DC (from 531X201PWRDG1) to the logic circuit; connect the 26-pin D-sub connector directly to the 531X306TCADG1’s input port. Never use copper wire for thermocouple connections—this will introduce cold-junction errors.
Maintenance
Monthly Checks: Inspect thermocouple connections for corrosion (common in high-humidity plants) and verify CJC sensor functionality via the Ovation HMI (should read control room ambient temperature ±1°C).
Quarterly Tasks: Test the 50/60 Hz notch filter by injecting a 60 Hz noise signal and confirming the 531X306TCADG1’s output remains stable (±0.5°C for Type K at 500°C).
Annual Calibration: Use a precision thermocouple calibrator (e.g., Fluke 754) to inject known temperatures (-200°C, 500°C, 1700°C) into each channel; adjust trim pots on the 531X306LCCBFM1 if the 531X306TCADG1’s readings drift beyond ±1°C (Type K) or ±2°C (Type S).
Replacement Note: Only use Emerson-authorized 531X306LCCBFM1 spares—third-party boards lack Emerson’s thermocouple linearization curves, leading to inaccurate high-temperature readings.
Related Model Recommendations
531X306TCADG1: High-temperature thermocouple input module—receives conditioned signals from 531X306LCCBFM1 for 24-bit A/D conversion and DCS integration.
531X307LTBADG1: Low-temperature RTD terminal board—complements 531X306LCCBFM1 in mixed high/low-temp systems (e.g., power plant boiler + auxiliary cooling system).
531X101PAMIG1: Ovation main controller—processes digital data from 531X306TCADG1 (conditioned by 531X306LCCBFM1) to execute high-temp control logic.
531X201PWRDG1: Redundant power supply—provides stable 24 V DC to 531X306LCCBFM1’s logic circuit, critical for 24/7 furnace operation.
531X304DCOADG1: Digital output module—acts on controller commands (triggered by 531X306LCCBFM1-conditioned data) to adjust fuel flow or coolant injection.
531X302DCIADG1: Digital input module—pairs with 531X306LCCBFM1 to add discrete signal monitoring (e.g., furnace door open/closed) to high-temp systems.
531X401COMMDG1: Communication module—enables 531X306TCADG1 data (from 531X306LCCBFM1) to be sent to enterprise SCADA for remote high-temp monitoring.
