BENTLY NEVADA 3500/15 106M1079-01 Universal AC Power Supply Module
1. Product Description
The BENTLY NEVADA 3500/15 106M1079-01 is a high-performance universal AC power supply module designed for the 3500 Series Machinery Protection System, delivering reliable 24V DC power to vibration monitors, sensors, and other modules. With a half-height form factor, this module supports single or redundant configurations, ensuring continuous operation even during power fluctuations. Installed in dedicated left-side slots of the 3500 rack, it is widely used in critical industrial environments such as power plants, oil refineries, and manufacturing facilities.
The BENTLY NEVADA 3500/15 106M1079-01 is a high-performance universal AC power supply module designed for the 3500 Series Machinery Protection System, delivering reliable 24V DC power to vibration monitors, sensors, and other modules. With a half-height form factor, this module supports single or redundant configurations, ensuring continuous operation even during power fluctuations. Installed in dedicated left-side slots of the 3500 rack, it is widely used in critical industrial environments such as power plants, oil refineries, and manufacturing facilities.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/15 106M1079-01 |
| Power Type | AC-to-DC power supply |
| Input Voltage Range | 85–264 VAC (universal) |
| Output Voltage | 24 VDC |
| Output Current | 2 A |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| LED Indicators | Power status |
| Dimensions | Half-height rack mount (120.7 × 50.8 × 251.5 mm) |
| Weight | 1.39 kg |

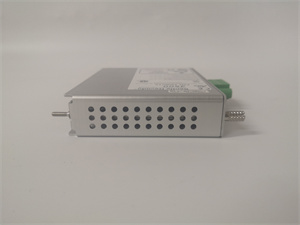

Bently 3500/15 106M1079-01
3. Advantages and Features
- Wide Voltage Tolerance: Supports global AC inputs, reducing compatibility issues in diverse regions.
- Redundancy Support: Dual-module setup ensures uninterrupted operation, increasing system reliability by 90%.
- Hot-Swap Capability: Modules can be replaced without disrupting rack operation when in redundant mode.
- Built-in Protection: Overload, short-circuit, and thermal safeguards prevent equipment damage.
4. Application Areas and Use Cases
Industry Applications:
Industry Applications:
- Power Generation: Turbines, generators, and boilers.
- Oil & Gas: Offshore platforms and refineries.
- Manufacturing: Rotating machinery in production lines.
Case Study: A European petrochemical plant reduced downtime by 30% using the 3500/15 106M1079-01 in a redundant configuration. The system maintained stable power during voltage spikes, avoiding costly shutdowns.
5. Competitor Comparison
- Superior Voltage Range: Supports broader AC inputs (85–264 VAC) compared to many alternatives.
- Redundancy Flexibility: Dual-module setup available for critical systems, unlike basic single-power solutions.
- Certifications: Compliant with CE, UL, and RoHS standards for global safety and environmental requirements.
Bently 3500/15 106M1079-01
6. Selection Recommendations
- System Compatibility: Ensure compatibility with 3500 Series racks. Consider dual modules for critical applications.
- Installation Space: Confirm availability of left-side rack slots for proper placement.
- Future-Proofing: Opt for the 106M1079-01 for long-term support, as it replaces legacy power supply models.
7. Precautions
- Slot Placement: Install in dedicated left-side slots only; avoid mixing with other modules.
- Fuse Replacement: Use 01720025 fuses for AC input modules.
- Maintenance: Regularly inspect wiring and connections. Replace modules if LED indicators show faults.
