1. Product Description
The ABB 1TGE120011R1001 is a high-performance industrial automation component designed to enhance the reliability and efficiency of control systems in diverse industrial environments. As a key offering from ABB, a leader in automation technology, the 1TGE120011R1001 is engineered to deliver precise control, seamless integration, and robust operation, making it an ideal choice for critical applications where downtime is not an option.
This model serves as a vital interface between different system components, enabling smooth data exchange and control signal transmission. Whether used in manufacturing lines, power plants, or process industries, the ABB 1TGE120011R1001 ensures stable performance by optimizing signal processing and minimizing interference. Its user-friendly design and advanced features make it suitable for both new installations and retrofitting existing systems, providing long-term value to industrial operators.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Voltage Range | 24V DC ±10% |
| Current Rating | 0.5A (nominal), 1A (peak) |
| Communication Interfaces | Ethernet (10/100 Mbps), RS-485 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -45°C to +85°C |
| Dimensions | 100 mm (W) x 150 mm (H) x 50 mm (D) |
| Weight | 0.8 kg |
| Compatibility | ABB AC/DC drives, PLC systems, and I/O modules |
| Certification | CE, UL, RoHS compliant |

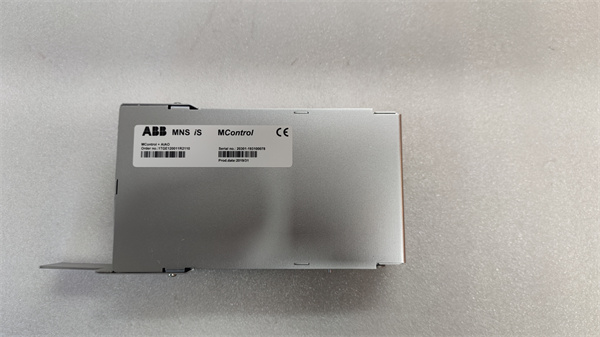

1TGE120011R1001
3. Advantages and Features
The ABB 1TGE120011R1001 stands out for its exceptional reliability, designed to withstand harsh industrial conditions with a mean time between failures (MTBF) exceeding 100,000 hours. Its advanced error-checking mechanisms ensure data integrity, reducing the risk of operational disruptions. The component also features hot-swappable capabilities, allowing for maintenance or replacement without powering down the entire system, which significantly enhances system uptime.
Energy efficiency is another key advantage, with low power consumption that contributes to reduced operational costs. The model’s modular design enables easy integration into existing ABB control ecosystems, minimizing installation time and complexity. Additionally, its robust electromagnetic compatibility (EMC) performance ensures minimal interference with other components, maintaining system stability in high-noise environments.
4. Application Areas and Case Study
The ABB 1TGE120011R1001 is widely used in industries such as manufacturing, oil and gas, power generation, and water treatment. It is particularly suitable for applications requiring precise control signal management, including motor drives, process control systems, and machine automation.
Case Study: A large-scale food and beverage production facility implemented the 1TGE120011R1001 to upgrade its conveyor belt control system. The component’s seamless integration with existing ABB drives and PLCs reduced setup time by 30%. Its reliable signal transmission eliminated intermittent control errors, improving production efficiency by 15% and reducing maintenance costs by 20% over a year.
5. Competitive Comparison
When compared to similar industrial automation components, the ABB 1TGE120011R1001 distinguishes itself through its superior temperature tolerance, spanning a wider operational range than many alternatives. Its dual communication interfaces offer greater flexibility in system design, while the hot-swappable feature minimizes downtime—an advantage that sets it apart in mission-critical applications. The model also prioritizes energy efficiency without compromising performance, making it a cost-effective choice for long-term use.
1TGE120011R1001
6. Selection Recommendations
When selecting the ABB 1TGE120011R1001, consider the following:
- Compatibility: Ensure it aligns with your existing ABB control systems, drives, or PLCs to avoid integration issues.
- Environmental Conditions: Verify that the operating temperature and humidity range match your facility’s environment, especially for harsh industrial settings.
- Performance Requirements: Assess the needed communication speed and signal processing capabilities to meet your application’s control precision needs.
- Budget: Balance the component’s advanced features with your budget, noting its long-term reliability and energy savings as part of the total cost of ownership.
7. Precautions
- Installation: Always power down the system before installing or replacing the 1TGE120011R1001 to prevent electrical shocks or damage.
- Cable Management: Use shielded cables to maintain EMC performance and avoid signal interference from nearby high-voltage equipment.
- Maintenance: Regularly inspect connections for signs of wear and clean the component gently with a dry, static-free cloth to ensure optimal heat dissipation.
- Software Compatibility: Update firmware only using ABB-approved tools to avoid compatibility issues or system malfunctions.
