Description
Product Overview

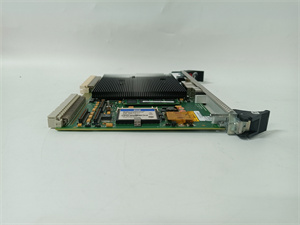

The GE VME-7807RC is a high – performance single – board computer (SBC) designed for VMEbus applications by General Electric. As part of GE’s advanced industrial computing solutions, the VME-7807RC is engineered to meet the demanding requirements of industrial automation, control systems, and data – intensive operations.
Equipped with an Intel Pentium M processor, the GE VME-7807RC offers substantial computing power. It can handle complex algorithms and multitasking scenarios with ease, making it an ideal choice for I/O – intensive applications. The board supports up to 1.5 GB of DDR SDRAM, ensuring smooth data processing and storage. With a PCI – X slot and a 66 – MHz PMC expansion slot, it provides flexibility for adding additional functionality, such as specialized communication or data acquisition modules. Its dual gigabit Ethernet ports enable high – speed network connectivity, facilitating seamless data transfer between different components in an industrial network. The VME-7807RC also supports a wide range of operating systems, including Windows XP, Windows 2000, VxWorks, Solaris, QNX, LynxOS, and Linux, allowing for versatile system integration.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | VME – 7807RC |
| Manufacturer | General Electric |
| Product Type | Single – board computer |
| Processor | Intel Pentium M |
| Memory | Up to 1.5 GB DDR SDRAM |
| Expansion Slots | One PCI – X slot, one 66 – MHz PMC expansion slot |
| Ethernet Ports | Dual gigabit Ethernet ports |
| Operating Systems | Windows XP, Windows 2000, VxWorks, Solaris, QNX, LynxOS, Linux |
| Cooling Method | Passively cooled |
| Form Factor | VMEbus |
| Dimensions | 350×350×28 cm |
| Weight | 1.5 kg |
Main Features and Advantages
High – performance computing: The GE VME – 7807RC‘s Intel Pentium M processor empowers it to handle intricate industrial tasks. Whether it’s processing large amounts of sensor data in real – time or running complex control algorithms, the processor’s capabilities ensure fast and accurate results. For instance, in a high – speed manufacturing line where quick decision – making based on sensor inputs is crucial, the VME – 7807RC can easily keep up with the pace.
Rich expansion capabilities: The availability of a PCI – X slot and a PMC expansion slot is a significant advantage. Users can customize the board according to their specific needs. If an industrial application requires additional communication interfaces, such as a special – purpose serial communication module for connecting to legacy devices, it can be added via the expansion slots. This adaptability makes the VME – 7807RC suitable for a wide variety of industrial setups.
Reliable and stable operation: Its passive – cooling design eliminates the need for fans, reducing the risk of component failure due to fan – related issues like dust accumulation or mechanical wear. This makes the GE VME – 7807RC highly reliable, especially in harsh industrial environments where dust, vibration, and temperature fluctuations are common.
High – speed networking: The dual gigabit Ethernet ports enable rapid data transfer. In industrial networks where timely communication between different devices is essential, the VME – 7807RC can quickly send and receive data. For example, in a smart factory where multiple robots, sensors, and control systems need to communicate with each other in real – time, the high – speed networking capabilities of the VME – 7807RC ensure seamless data flow.
Rich expansion capabilities: The availability of a PCI – X slot and a PMC expansion slot is a significant advantage. Users can customize the board according to their specific needs. If an industrial application requires additional communication interfaces, such as a special – purpose serial communication module for connecting to legacy devices, it can be added via the expansion slots. This adaptability makes the VME – 7807RC suitable for a wide variety of industrial setups.
Reliable and stable operation: Its passive – cooling design eliminates the need for fans, reducing the risk of component failure due to fan – related issues like dust accumulation or mechanical wear. This makes the GE VME – 7807RC highly reliable, especially in harsh industrial environments where dust, vibration, and temperature fluctuations are common.
High – speed networking: The dual gigabit Ethernet ports enable rapid data transfer. In industrial networks where timely communication between different devices is essential, the VME – 7807RC can quickly send and receive data. For example, in a smart factory where multiple robots, sensors, and control systems need to communicate with each other in real – time, the high – speed networking capabilities of the VME – 7807RC ensure seamless data flow.
Application Field
The GE VME – 7807RC finds extensive applications across multiple industries. In the power generation sector, it can be used in power plant control systems. It processes data from various sensors monitoring turbine performance, generator output, and grid parameters. Based on this data, it can send control signals to optimize power generation, ensuring efficient and stable power supply.
In the manufacturing industry, the VME – 7807RC is used in automated production lines. It controls robotic arms, conveyor belts, and other manufacturing equipment. By collecting data from sensors on these devices, it can adjust their operations in real – time to improve production efficiency and product quality. For example, in an automotive assembly line, it can ensure that robotic arms precisely pick and place car parts, reducing errors and increasing throughput.
In the oil and gas industry, the GE VME – 7807RC is deployed in oil refineries and gas processing plants. It monitors and controls processes such as oil extraction, refining, and gas compression. By analyzing data from sensors measuring pressure, temperature, and flow rates, it helps in maintaining safe and efficient operations, minimizing downtime, and maximizing productivity.
Related Products
- VMIVME – 7807RC – 41400: This is likely a variant of the GE VME – 7807RC with specific configurations. It may have differences in certain features, such as memory capacity or additional pre – installed software, tailored for particular application requirements.
- IS200TBAOH1C: An associated product from GE, it might work in tandem with the VME – 7807RC in an industrial system. It could be involved in signal conditioning or pre – processing tasks, enhancing the overall functionality of the system where the VME – 7807RC is the main computing unit.
- IS200TBAIH2C: Similar to the above, it may play a role in data handling or communication within the system. It could be designed to interface with specific types of sensors or actuators, complementing the VME – 7807RC‘s capabilities in data acquisition and control.
- IS200STURH4A: As an integrated board of the GE MDS EL705 series, it may have a connection with the VME – 7807RC in terms of communication protocols or data sharing. It could be used to expand the network connectivity or data storage capacity of the system where the VME – 7807RC is installed.
- IS200STTCH2A: Another integrated board of the GE MDS EL705 series, it may offer additional features like more communication interfaces or enhanced data processing algorithms. It can be used to further customize the functionality of the system centered around the GE VME – 7807RC.
Installation and Maintenance
Pre – installation preparation: Before installing the GE VME – 7807RC, ensure the installation environment meets the requirements. Check for a stable power supply within the specified voltage range. The installation area should be clean, free from dust and excessive humidity. Verify the mechanical compatibility of the VME – 7807RC with the VMEbus rack where it will be mounted. Read the installation manual carefully to understand the proper connection sequence of cables and the correct way to insert the board into the rack.
Maintenance recommendations: Regularly inspect the GE VME – 7807RC for any signs of physical damage, such as cracks on the board or loose connections. Clean the board gently using an anti – static brush to remove dust, as dust accumulation can affect its performance. Monitor the system’s temperature to ensure it stays within the operating range. If any issues arise, such as abnormal system behavior or network connection problems, refer to the troubleshooting section of the user manual. Periodically check for firmware updates from GE to keep the VME – 7807RC operating at its best performance.
Maintenance recommendations: Regularly inspect the GE VME – 7807RC for any signs of physical damage, such as cracks on the board or loose connections. Clean the board gently using an anti – static brush to remove dust, as dust accumulation can affect its performance. Monitor the system’s temperature to ensure it stays within the operating range. If any issues arise, such as abnormal system behavior or network connection problems, refer to the troubleshooting section of the user manual. Periodically check for firmware updates from GE to keep the VME – 7807RC operating at its best performance.
Product Guarantee
GE stands firmly behind the quality of the GE VME – 7807RC. The product undergoes rigorous quality control procedures during manufacturing to ensure its reliability and high – performance operation. GE typically offers a standard warranty, often for a period of one year, against defects in materials and workmanship. In the event that a problem occurs within the warranty period, GE’s dedicated after – sales service team will promptly provide repair or replacement services. They also offer comprehensive technical support, including online resources, user manuals, and access to technical experts. This ensures that customers can rely on the VME – 7807RC for their industrial computing needs with confidence, knowing that they have the full support of the manufacturer throughout the product’s lifespan.
