1. Product Description
TRICONEX 4500 is a high-reliability digital input module designed to provide secure and accurate signal acquisition in critical industrial automation systems. As a core component of TRICONEX’s triple modular redundant (TMR) platform, the 4500 module is engineered to meet the rigorous demands of safety-critical environments, ensuring continuous operation even in the presence of faults. This module is ideal for applications requiring precise monitoring of discrete signals, such as switch states, sensor inputs, or alarm conditions, while maintaining compliance with international safety standards like IEC 61508 and ISA 84.00.07. The TRICONEX 4500 enables seamless integration into TMR architectures, delivering unmatched availability and diagnostic capabilities for industrial processes.
2. Product Parameters
| Parameter | Description |
|---|---|
| Module Type | Digital Input Module (Sinking/Source Compatible) |
| Number of Channels | 16 channels |
| Voltage Range | 24 VDC ±10% |
| Input Impedance | 4.7 kΩ |
| Noise Immunity | >20 V peak-to-peak (common mode), >10 V (differential mode) |
| Redundancy Support | Fully compatible with TMR architecture |
| Safety Integrity Level | SIL 3 (certified per IEC 61508) |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 178 mm (H) x 48 mm (W) x 231 mm (D) |
| Diagnostics | Channel-level fault detection (open circuit, short circuit, overvoltage) |

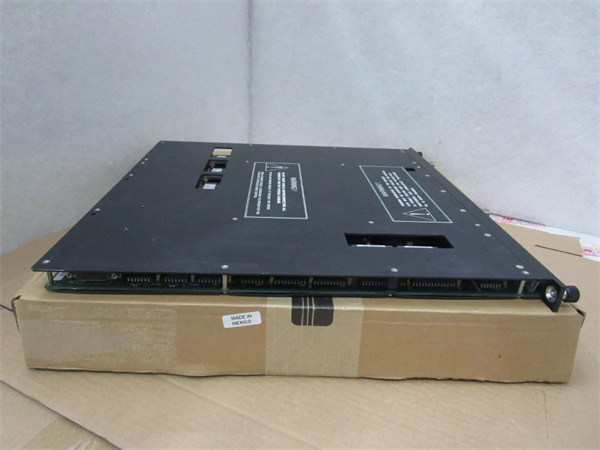

TRICONEX 4500
3. Advantages and Features
The TRICONEX 4500 stands out for its triple modular redundancy (TMR) design, which provides fault tolerance by voting on signals across three independent channels, ensuring data integrity even if one channel fails. Its comprehensive diagnostics continuously monitor each input for anomalies, reducing mean time to detect (MTTD) and enabling proactive maintenance. The module’s high noise immunity and wide temperature range make it suitable for harsh industrial environments, while its hot-swappable design allows for replacement without system shutdown, minimizing downtime.
A key feature is its SIL 3 certification, making it suitable for safety instrumented systems (SIS) in high-risk industries. The 4500 also offers fast signal processing (typically <5 ms response time), ensuring real-time data acquisition for critical control loops.
4. Application Areas and Use Cases
The TRICONEX 4500 is widely used in industries such as oil and gas, chemical processing, power generation, and water treatment, where reliable monitoring of discrete inputs is essential. It is commonly employed to interface with limit switches, pushbuttons, motor status signals, and emergency shutdown (ESD) devices.
Case Study: In a natural gas processing plant, the 4500 module was deployed in a TMR-based SIS to monitor pressure switch statuses in a compressor unit. The module’s fault-detection capabilities identified a faulty input channel during routine operation, allowing maintenance teams to replace the module without interrupting production, thus avoiding an estimated $50,000 in downtime costs.
5. Competitive Comparison
Compared to similar digital input modules, the TRICONEX 4500 differentiates itself through its built-in TMR architecture, which eliminates the need for external redundancy modules and reduces system complexity. Its advanced diagnostics and SIL 3 certification provide a higher level of safety assurance than non-certified alternatives. The module’s tight integration with TRICONEX controllers also streamlines configuration and reduces engineering effort compared to multi-vendor solutions.
TRICONEX 4500
6. Selection Recommendations
When selecting the TRICONEX 4500, consider the following:
- System Redundancy Needs: Ensure the TMR architecture aligns with your system’s availability requirements.
- Environmental Conditions: Verify compatibility with temperature, humidity, and EMI/RFI levels in your facility.
- Channel Density: Assess whether 16 channels meet your I/O needs, balancing cost with scalability.
- Safety Compliance: Confirm that the SIL 3 certification matches your industry’s safety instrumented system requirements.
7. Precautions
- Wiring Practices: Use shielded cables and follow TRICONEX’s grounding guidelines to minimize interference.
- Firmware Updates: Regularly update the module’s firmware to leverage the latest security patches and performance improvements.
- Hot-Swap Procedures: Always use approved tools and follow lockout/tagout (LOTO) protocols when replacing the module in live systems.
- Diagnostic Review: Monitor channel status reports to identify potential issues, such as degraded signal quality or component wear, before they escalate.
