Description
Product Overview

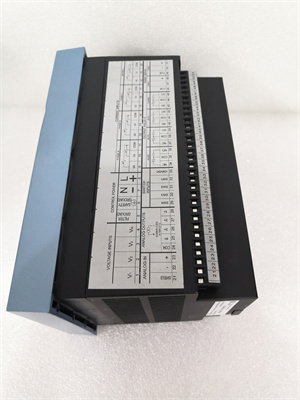

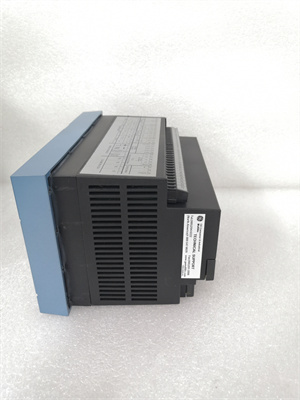

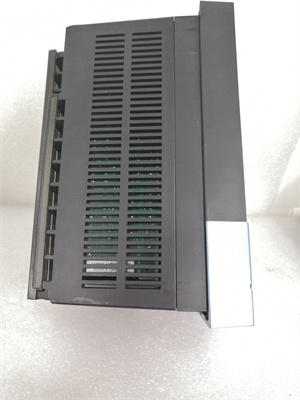

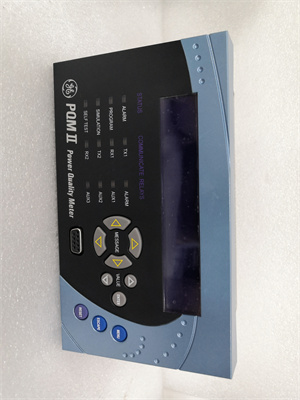

The GE PQMII-T20-C-A is an advanced power quality meter, representing GE’s commitment to delivering top – notch solutions for electrical system monitoring. This device is designed to play a crucial role in precisely assessing power quality within a wide range of electrical setups. It provides continuous monitoring of three – phase systems, making it an essential component for industries where stable power supply is non – negotiable.
With the GE PQMII-T20-C-A, users can expect comprehensive data collection. It has the capability to measure multiple key electrical parameters such as current, voltage, active power, reactive power, energy consumption, power cost, power factor, and frequency. This detailed measurement allows for a holistic understanding of the power system’s performance. Moreover, it offers features like waveform analysis, which is invaluable for diagnosing waveform distortion issues in power systems, and the ability to monitor and record voltage sags and swells, storing up to 500 such events. This data is vital for maintaining grid stability and ensuring high – quality power supply.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | PQMII-T20-C-A |
| Manufacturer | GE |
| Product Type | Power Quality Meter |
| Voltage Rating | 20 – 60 VDC / 20 – 48 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 20 VA |
| Analog Input | One 4 – 20 mA |
| Relay Outputs | 4 |
| Switch Inputs | 4 |
| Analog Outputs | 4 |
| Communication | Modbus |
| Operating Range | 0.1 Hz to 500 Hz |
| Measurement Accuracy | ±0.5% (100% full scale) |
| Power Factor Resolution | 0.01 |
| Sampling Rate | 5 kHz |
| Operating Temperature | – 20 °C to + 55 °C |
| Relative Humidity | 5% to 95% non – condensing |
PQMII-T20-C-A
Main Features and Advantages
Precise Parameter Measurement
The GE PQMII-T20-C-A offers high – accuracy measurement of various electrical parameters. Its ability to measure current, voltage, and power – related metrics with precision ensures that users get an exact picture of the power system’s health. For instance, the ±0.5% measurement accuracy at full scale for most parameters allows for early detection of any deviations from normal operation, enabling preventive maintenance.
Waveform and Event Analysis
With waveform analysis capabilities, it can identify and diagnose waveform distortion problems in power systems. Additionally, its capacity to monitor and record up to 500 voltage sag and swell events is a major advantage. This data helps in analyzing grid stability over time and predicting potential power – quality – related issues.
Versatile I/O and Communication
Featuring four relay outputs, four switch inputs, and four analog outputs, the PQMII-T20-C-A provides great flexibility in control and data transmission. The inclusion of a 4 – 20 mA analog input allows for seamless integration with existing sensor networks. The Modbus communication protocol simplifies connectivity, making it easy to integrate into modern industrial control systems for remote monitoring and management.
Wide Operating Conditions
It has a wide operating range from 0.1 Hz to 500 Hz and can operate in temperatures ranging from – 20 °C to + 55 °C with a relative humidity of 5% to 95% non – condensing. This makes it suitable for use in diverse industrial environments, whether it’s a cold storage facility or a hot manufacturing plant.
Application Field
In industrial manufacturing, the GE PQMII-T20-C-A is used to monitor power quality in production lines. For example, in a semiconductor manufacturing plant, stable power is crucial for the operation of highly sensitive equipment. The power quality meter can detect any voltage sags or swells that could potentially damage the manufacturing equipment or affect the quality of the semiconductors being produced. By continuously monitoring power parameters, it helps in maintaining production efficiency and product quality.
In power generation facilities, the PQMII-T20-C-A plays a key role in ensuring grid stability. It monitors the power output of generators, checking for any abnormalities in voltage, frequency, or power factor. This information is used to adjust the operation of the generators and other power – related equipment, ensuring a smooth and stable power supply to the grid.
Commercial buildings, such as large shopping malls or data centers, also benefit from the GE PQMII-T20-C-A. Data centers require a highly stable power supply to keep servers and other IT equipment running. The power quality meter can detect and alert facility managers of any power – quality issues, preventing data loss and equipment failures. In shopping malls, it helps in optimizing energy consumption and ensuring the proper functioning of lighting, HVAC systems, and escalators.
PQMII-T20-C-A
Related Products
- GE PQM – T20 – A: This is likely a more basic version in the PQM series. It may have similar functionality to the PQMII-T20-C-A but perhaps with fewer features or a lower level of measurement accuracy. It could be suitable for applications where the power quality monitoring requirements are not as demanding.
- GE MIFIIPI55E10H100: It may be a different type of monitoring or control module. While the PQMII-T20-C-A focuses on power quality, the MIFIIPI55E10H100 might be involved in other aspects of electrical system management, such as signal processing or interface functions, and could potentially be used in combination with the PQMII-T20-C-A in a complex industrial setup.
- GE MVME162 – 213: This is a module from GE’s MVME series, which is typically used in computing or data – processing applications within industrial control systems. It can work alongside the PQMII-T20-C-A by handling data processing tasks related to the power quality data collected by the meter, such as analyzing trends over time.
- GE PCI – 8517: A PCI – based card, it could be used for communication or data acquisition purposes. It can interface with the PQMII-T20-C-A to transfer the power quality data to other parts of the industrial control system, like a central monitoring station.
- GE SR469 – CASE – 469 – P1 – HI – A20 – E: This product might be related to protection or control functions in an electrical system. It can complement the PQMII-T20-C-A by taking action based on the power quality data. For example, if the power quality meter detects a voltage sag, this product could initiate a corrective action to protect connected equipment.
Installation and Maintenance
Pre – installation preparation: Before installing the GE PQMII-T20-C-A, ensure that the power supply in the installation area falls within the specified voltage rating of 20 – 60 VDC or 20 – 48 VAC. Check the environmental conditions, making sure the temperature is between – 20 °C and + 55 °C and the relative humidity is within 5% – 95% non – condensing. Clean the installation location to prevent dust and debris from interfering with the device’s operation. Also, verify the compatibility of the communication interfaces with the existing system and ensure that the Modbus communication settings are correctly configured.
Maintenance recommendations: Regularly check the GE PQMII-T20-C-A for any signs of physical damage. Monitor the power consumption to ensure it remains around the specified 20 VA. Periodically calibrate the meter to maintain its measurement accuracy. Check the communication link to ensure seamless data transfer. If any issues are detected, refer to the product manual for troubleshooting steps. If problems persist, contact GE’s technical support for professional assistance.
Product Guarantee
GE offers a comprehensive product guarantee for the PQMII-T20-C-A. The company stands behind the quality of the power quality meter, assuring customers of its reliability and performance. In case of any manufacturing defects, GE will provide repair or replacement services within the warranty period. Their team of technical experts is available to offer support for installation, configuration, and any operational questions. This commitment reflects GE’s confidence in the GE PQMII-T20-C-A and gives customers peace of mind when using it to monitor and manage power quality in their electrical systems.
