Product Overview

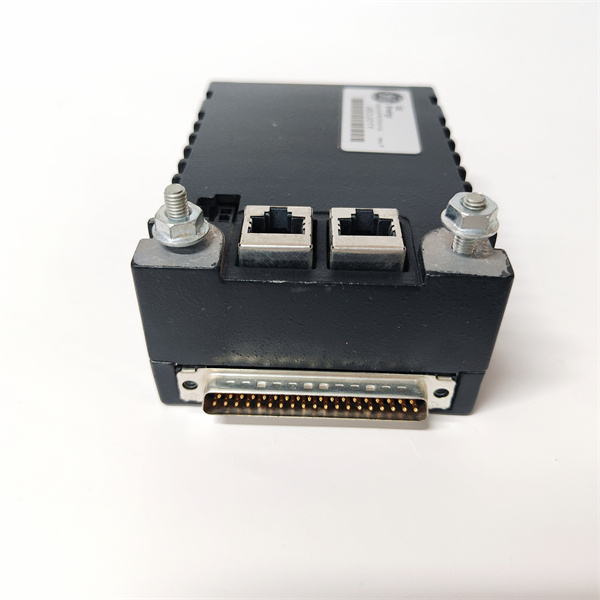

The GE IS220PDIOH1B 336A5026ADP6 is a discrete input/output (I/O) module that belongs to the esteemed Mark VIe series. Engineered for use in General Electric Speedtronic gas turbine control systems, it plays a pivotal role in handling digital signals for diverse control and monitoring functions. This module is designed to meet the rigorous demands of industrial environments, ensuring reliable operation even under challenging conditions.
Technical Specifications
|
Parameter Name
|
Parameter Value
|
|
Product Model
|
IS220PDIOH1B 336A5026ADP6
|
|
Manufacturer
|
GE
|
|
Product Type
|
Discrete I/O Module
|
|
Product Series
|
Mark VIe
|
|
Nominal Voltage
|
28.0 VDC (Minimum 27.4 VDC)
|
|
Contact Voltage Output
|
32.0 VDC
|
|
Ethernet Ports
|
2 high – speed ports
|
|
Dimensions
|
11.43 cm (W) x 8.89 cm (H) x 5.72 cm (D)
|
|
Weight
|
< 0.91 kg (2 lbs)
|
|
Ambient Temperature Range
|
-30 to + 65 °C (- 22 to + 149 °F)
|
|
Hazardous Location Approval
|
Class I, Division 2, groups A/B/C/D; Class I, Zone 2, group IIC; ATEX Zone 2, group IIC
|
Main Features and Advantages
Robust Connectivity
Equipped with 2 high – speed Ethernet ports, the IS220PDIOH1B 336A5026ADP6 enables seamless communication within the control network. This allows for rapid data transfer and integration with other components in the system, enhancing overall system responsiveness.
Redundancy Options
It supports simplex, dual, and triple – redundant system configurations. Redundancy is crucial in industrial settings as it significantly enhances system reliability. In case of a failure in one component, the redundant systems can take over, ensuring continuous operation and minimizing downtime.
Discrete I/O Functionality
The module efficiently handles digital on/off signals, which are essential for turbine and industrial control functions. Whether it’s controlling the opening and closing of valves or monitoring the status of various sensors, its discrete I/O capabilities provide precise control and monitoring.
Hazardous Location Approval
Approved for use in hazardous locations such as Class I, Division 2 and ATEX Zone 2, this module can be safely deployed in environments where there is a risk of explosion or fire due to the presence of flammable gases, vapors, or dust. This makes it suitable for industries like oil and gas, chemical, and mining.
Local Processor and Data Acquisition
With an integrated local processor, it can handle and manage data effectively. Additionally, the dedicated data acquisition board facilitates seamless system integration, allowing for the collection and processing of relevant data in real – time.
IS220PDIAH1A
Application Field
Gas Turbine Control Systems
In gas turbine power generation plants, the IS220PDIOH1B 336A5026ADP6 is used to control and monitor various aspects of the gas turbine operation. It can manage the start – up and shut – down sequences, control the fuel supply, and monitor the status of critical components, ensuring optimal performance and reliability.
Industrial Automation
In industrial manufacturing processes, this module can be used to control and monitor production lines. It can interface with sensors and actuators to automate tasks such as material handling, machine operation, and quality control. For example, in an automotive manufacturing plant, it can control the movement of robotic arms and monitor the status of conveyor belts.
Hazardous Environment Applications
Due to its hazardous location approval, it is extensively used in industries where there are potential explosion risks. In oil refineries, it can be used to control and monitor equipment in areas where flammable gases may be present. Similarly, in chemical plants, it can be deployed in areas with volatile chemicals to ensure safe and reliable operation.
Related Products
IS220PDIOH1
The base model of the PDIO pack, the IS220PDIOH1 shares some fundamental discrete I/O functions with the IS220PDIOH1B 336A5026ADP6. However, the latter has additional features such as the “B – rated” functional product revision which may offer enhanced performance or specific capabilities tailored for certain applications.
ISx0yTDBSH2A/ISx0yTDBTH2A and ISx0yTDBSH8A/ISx0yTDBTH8A Terminal Boards
These terminal boards are often used in conjunction with the IS220PDIOH1B 336A5026ADP6. They extend the module’s functionality, for example, by providing additional connection points or specific signal conditioning for different types of field devices. The ISx0yTDBSH2A/ISx0yTDBTH2A and ISx0yTDBSH8A/ISx0yTDBTH8A are designed to work in hazardous applications and have entity parameters suitable for such environments.
Other Mark VIe Series Modules
Modules like the IS220PPDAH1B (a power distribution feedback module) and IS220UCCC01A (a communication – related module) are part of the same Mark VIe series. They can work in tandem with the IS220PDIOH1B 336A5026ADP6 to form a comprehensive control system. For instance, the power distribution module ensures stable power supply to the IS220PDIOH1B 336A5026ADP6, while the communication module enables data transfer between different components in the system.
Installation and Maintenance
Pre – installation preparation
Before installing the IS220PDIOH1B 336A5026ADP6, carefully read the installation manual provided by GE. Ensure that the installation environment meets the specified temperature, humidity, and vibration requirements. Check the compatibility of the module with other components in the system, especially the terminal boards it will be connected to. Mount the module securely in the appropriate slot in the control cabinet, following the correct orientation. Connect the Ethernet cables and power supply cables according to the wiring diagrams provided in the manual, making sure all connections are tight and free from any damage.
Maintenance recommendations
Regularly inspect the module for any signs of physical damage, such as cracks or loose connections. Monitor the status of the Ethernet ports and the power LED indicators on the front panel. If any faults are detected, refer to the troubleshooting guide in the manual. Clean the module periodically to remove dust and debris, as these can affect its performance. If the module needs to be replaced, follow the proper procedures to ensure a seamless transition without disrupting the operation of the overall system. Additionally, keep track of the module’s operating hours and consider performing preventive maintenance based on GE’s recommendations.
Product Guarantee
GE offers a comprehensive product guarantee for the IS220PDIOH1B 336A5026ADP6. The product comes with a standard warranty period, during which any defects in materials or workmanship will be rectified by GE free of charge. Their global technical support team is available 24/7 to provide assistance with installation, operation, and troubleshooting. Whether it’s answering questions about the module’s functionality or helping to resolve complex issues, GE’s experts are committed to ensuring the optimal performance of the IS220PDIOH1B 336A5026ADP6. This strong product guarantee reflects GE’s confidence in the quality and reliability of the module, giving customers peace of mind when integrating it into their industrial systems.
