Description
Product Overview
The GE IC697CPX772 is a high – performance CPU module hailing from GE Fanuc’s 90 – 70 series, tailored for industrial automation and control applications. As a pivotal component in programmable logic controller (PLC) systems, it wields the power of a 96 – MHz 80486 DX4 microprocessor. This enables the IC697CPX772 to execute logic operations at an impressive speed of 0.4 microseconds per boolean function, ensuring rapid and efficient control over industrial processes.
With 512 KB of slow battery – backed RAM, it provides a reliable space for data storage during operation. Additionally, the 256 KB of flash memory offers non – volatile storage, safeguarding crucial data even in the event of power disruptions. The module’s design allows it to support up to 2 K inputs and outputs in any combination, along with up to 8 K analog I/O, making it highly versatile for diverse industrial setups. Its multiple communication interfaces, including one RS232 RJ11 serial port and two 9 – pin D – shell RS485 interfaces, facilitate seamless connectivity with a wide range of peripheral devices, enhancing its integration capabilities within industrial networks.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC697CPX772 |
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Type | CPU Module |
| Processor | 80486 DX4 Microprocessor |
| Clock Speed | 96 MHz |
| RAM | 512 KB |
| NV – RAM | 256 KB |
| Discrete I/O | 2 K Max (Any Combination) |
| Analog I/O | 8 K Max |
| Boolean Execution | 0.4 Microseconds per Boolean Function |
| Communication Ports | One RS232, Two RS485 |
| Voltage Input | 5 V DC |
| Current Draw | 3.1 A |
| Operating Temperature | 0 – 60 °C |
| Storage Temperature | – 40 – 85 °C |
| Mounting Type | Rack – Mounted |

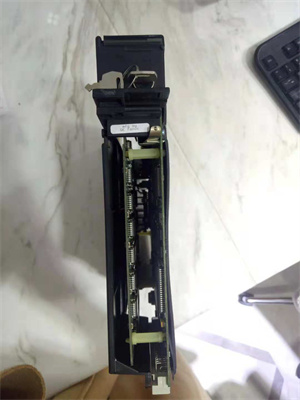

IC697CPX772
Main Features and Advantages
High – speed Processing: Powered by a 96 – MHz 80486 DX4 microprocessor, the GE IC697CPX772 can swiftly handle complex control algorithms and large – scale data processing. This high – speed performance is crucial for real – time control applications, ensuring that industrial processes respond promptly to changing conditions.
Rich I/O Capabilities: With support for up to 2 K discrete I/O in any combination and 8 K analog I/O, it can interface with a vast array of sensors and actuators. This extensive I/O capacity makes it suitable for a wide range of industrial applications, from simple machine control to complex process automation.
Reliable Memory Configuration: The 512 KB of battery – backed RAM ensures data integrity during normal operation, while the 256 KB of non – volatile flash memory safeguards critical data such as programs and configurations during power outages. This reliable memory setup minimizes the risk of data loss and system disruptions.
Flexible Communication: The presence of one RS232 and two RS485 communication ports allows for seamless connection with various devices, including other PLCs, human – machine interfaces (HMIs), and industrial networks. It supports multiple serial protocols, enabling easy integration into existing industrial control systems.
User – friendly Design: The module features a seven – status LED display that provides clear visual indication of its operational status, such as power, run, and fault conditions. The three – position operation mode switch simplifies local mode changes, and the software – based configuration (no dip switches or jumpers required) makes it easy to set up and customize for specific applications.
Rich I/O Capabilities: With support for up to 2 K discrete I/O in any combination and 8 K analog I/O, it can interface with a vast array of sensors and actuators. This extensive I/O capacity makes it suitable for a wide range of industrial applications, from simple machine control to complex process automation.
Reliable Memory Configuration: The 512 KB of battery – backed RAM ensures data integrity during normal operation, while the 256 KB of non – volatile flash memory safeguards critical data such as programs and configurations during power outages. This reliable memory setup minimizes the risk of data loss and system disruptions.
Flexible Communication: The presence of one RS232 and two RS485 communication ports allows for seamless connection with various devices, including other PLCs, human – machine interfaces (HMIs), and industrial networks. It supports multiple serial protocols, enabling easy integration into existing industrial control systems.
User – friendly Design: The module features a seven – status LED display that provides clear visual indication of its operational status, such as power, run, and fault conditions. The three – position operation mode switch simplifies local mode changes, and the software – based configuration (no dip switches or jumpers required) makes it easy to set up and customize for specific applications.
Application Field
In manufacturing automation, the GE IC697CPX772 is widely used to control production lines. It can manage the movement of conveyor belts, coordinate the actions of robotic arms, and control the operation of various machines. For example, in an automotive assembly plant, it ensures the precise and efficient assembly of parts by synchronizing the operations of different components on the production line.
In process control industries like chemical and petroleum, the module plays a crucial role. It monitors and controls parameters such as temperature, pressure, and flow rate in real – time. By analyzing data from sensors, it can adjust valves, pumps, and other equipment to maintain optimal process conditions, ensuring product quality and plant safety.
Material handling systems also benefit from the IC697CPX772. It controls the movement of materials in warehouses and distribution centers, managing the operation of automated guided vehicles (AGVs), cranes, and conveyor systems. This helps in streamlining material flow, reducing errors, and improving overall efficiency in logistics operations.
Material handling systems also benefit from the IC697CPX772. It controls the movement of materials in warehouses and distribution centers, managing the operation of automated guided vehicles (AGVs), cranes, and conveyor systems. This helps in streamlining material flow, reducing errors, and improving overall efficiency in logistics operations.

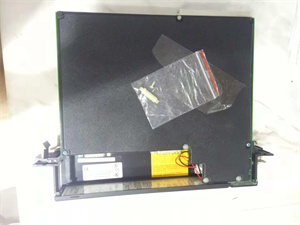

IC697CPX772
Related Products
- IC697ACC701: This is a lithium battery for the GE IC697CPX772. It has a shelf life of 5 years at 20 degrees Celsius and can retain memory for 6 months, ensuring data integrity during power – off periods.
- IC660/IC661 I/O Modules: These I/O modules are supported by the IC697CPX772. They expand the input and output capabilities of the system, allowing for connection to a wider range of sensors and actuators.
- IC697 Family of I/O Modules: Comprising various discrete and analog I/O modules, they can be integrated with the GE IC697CPX772 to meet specific I/O requirements in different industrial applications.
- LAN Interface Modules: These modules can be connected to the IC697CPX772 to enable network communication. They facilitate remote monitoring and control, allowing operators to manage the system from a distance.
- Programmable Coprocessors: They work in tandem with the GE IC697CPX772 to offload some processing tasks. This can enhance the overall performance of the system, especially in applications with complex computational requirements.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IC697CPX772, ensure that the power to the PLC system is turned off to prevent electrical accidents. Check the module for any visible damage, such as bent pins or cracks in the casing. Verify that the rack where it will be installed is clean and free of debris. Also, confirm that the power supply meets the module’s requirements of 5 V DC and can supply the necessary 3.1 A of current.
Maintenance recommendations: Regularly monitor the status LEDs on the IC697CPX772 to quickly identify any operational issues. Clean the module periodically to remove dust, especially in environments with high particulate matter, as dust accumulation can affect its performance. Check the battery (IC697ACC701) status regularly and replace it when approaching the end of its shelf life to ensure data retention. Periodically backup the program and data stored in the module to safeguard against data loss in case of module failure.
Product Guarantee
GE stands firmly behind the quality of the GE IC697CPX772 CPU module. It typically comes with a standard one – year warranty against defects in materials and workmanship. In the unlikely event that the module malfunctions due to manufacturing flaws during this period, GE will provide prompt repair or replacement services at no cost to the customer. Their dedicated technical support team is available around the clock to offer assistance, whether it’s helping with installation guidance, answering configuration – related questions, or providing troubleshooting advice. This commitment reflects GE’s confidence in the reliability and performance of the IC697CPX772, giving customers peace of mind when integrating it into their industrial automation systems.
