The GE IC698CHS117C is a high – performance I/O rack belonging to the PACSystems RX7i series. Engineered for industrial automation, it serves as a crucial component in complex control systems. This rack is designed to support various GE Fanuc RX7i CPUs, RX7i I/O modules, Series 90 – 70 I/Os, and all standard VME modules, enabling seamless integration within different system architectures. With 18 I/O slots, the IC698CHS117C offers great flexibility for configuring different input and output combinations, meeting diverse industrial application requirements. It operates within a voltage range of 5 to 12 volts DC and is equipped with a 350 – watt power supply, ensuring stable operation even in demanding industrial environments.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC698CHS117C |
| Manufacturer | GE Fanuc |
| Product Type | I/O Rack |
| Series | RX7i PAC system |
| Operating Voltage | 5 – 12 volts DC |
| Power Supply | 350 watts |
| Current Rating | 60 amps at 5.0 volts DC / 12 amps at 12 volts DC / 4 amps at – 12 volts DC |
| I/O Capacity | 18 I/O slots |
| Mounting | Rear wall – mounting |
| Approximate Dimensions | 11.2 x 19.0 x 7.5 inches (H x W x D) |
| Backplane System | VME64 |
| Bandwidth Strength | Up to 4 times more than standard VME backplane systems |

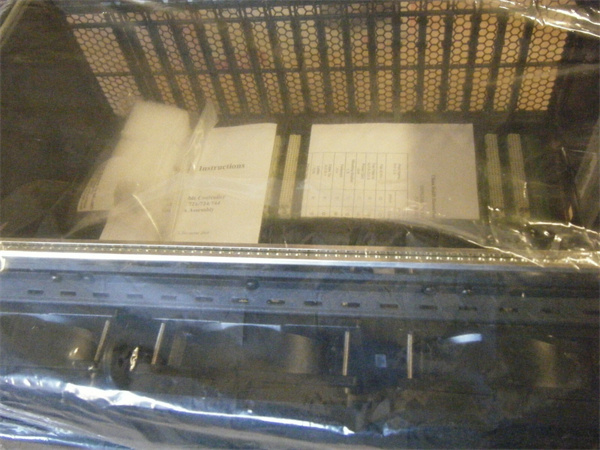

IC698CHS117C
Main Features and Advantages
The IC698CHS117C stands out with several notable features. Firstly, it has a high – speed VME64 backplane system, providing up to 4 times more bandwidth than standard VME backplanes, which leads to faster I/O throughput and enables the system to handle high – speed data transfers efficiently. Secondly, it supports a wide range of modules, including various CPUs and I/O modules, offering great versatility and expandability for different industrial automation applications. Additionally, the rack has a slot – sensing feature for rack – type I/O modules, and it is configured with programming/configuration software, eliminating the need for dip switches and jumper configurations, which simplifies the setup and maintenance process. Moreover, it can support high – wattage power supplies, meeting the power demands of high – current configurations.
Application Field
The GE IC698CHS117C is widely used in various industrial automation fields. In manufacturing plants, it can be used to control production lines, enabling the seamless operation of different production processes and improving production efficiency. In the field of process control, it can be applied to monitor and control complex chemical or physical processes, ensuring the stability and safety of the process. In the automation of machinery equipment, the IC698CHS117C can be used to achieve the precise control of motors, sensors, and actuators, improving the performance and reliability of the equipment. It is also suitable for use in power plants, water treatment plants, and other industrial scenarios that require high – reliability control systems.

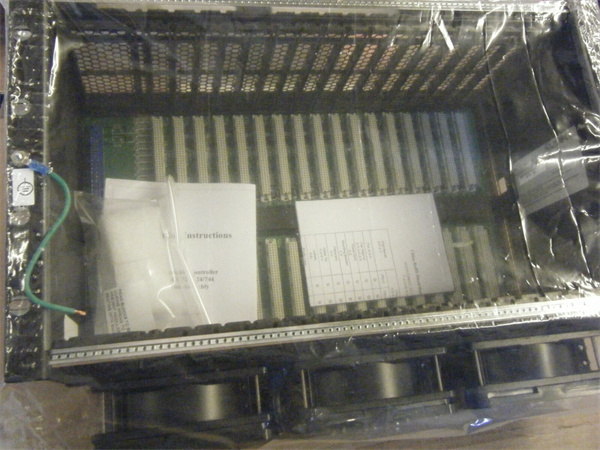

IC698CHS117C
Related Products
- IC698CPE010/020: These are double – width CPU modules with embedded Ethernet cards that use slots 1 and 2 of the IC698CHS117C rack. They provide enhanced processing power and Ethernet communication capabilities for the control system.
- IC698CRE020: Another double – width CPU module that works with the IC698CHS117C rack. It has specific features suitable for certain industrial control applications, such as advanced motion control or high – speed data processing.
- IC697ACC721/724/744: These are rack fan assemblies required for some high – power – consumption modules like CPE020/CRE020 and PSA350 in the IC698CHS117C system. They help to maintain proper cooling and ensure the stable operation of the rack in high – temperature environments.
- IC698ACC735/720: Gasketed filler faceplates for the IC698CHS117C rack. The single – width and double – width faceplates are used to cover unused slots, providing protection and a neat appearance for the rack.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IC698CHS117C, make sure to check the installation environment. Ensure that the mounting surface is flat and firm, and that the power supply meets the requirements of 5 – 12 volts DC. Also, prepare the necessary tools and programming/configuration software. Familiarize yourself with the wiring diagrams and installation instructions to ensure a smooth installation process.
Maintenance recommendations: Regularly check the operating status of the IC698CHS117C. Clean the dust on the surface of the rack regularly to ensure good heat dissipation. Check the connection status of each module and cable to ensure they are firmly connected. If any faults occur, refer to the troubleshooting guide in the product manual or contact GE technical support for assistance.
Maintenance recommendations: Regularly check the operating status of the IC698CHS117C. Clean the dust on the surface of the rack regularly to ensure good heat dissipation. Check the connection status of each module and cable to ensure they are firmly connected. If any faults occur, refer to the troubleshooting guide in the product manual or contact GE technical support for assistance.
Product Guarantee
GE provides a comprehensive product guarantee for the IC698CHS117C. The company ensures high – quality products through strict quality control measures. In terms of after – sales service, GE offers timely technical support and maintenance services. If the product has quality problems within the warranty period, GE will provide free repair or replacement services. The company is committed to ensuring the normal operation of the product in the user’s system, providing users with reliable technical support and quality assurance, and helping users solve various problems that may arise during the use of the product.
