Description
Product Overview
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC687RCM711 |
| Manufacturer | GE Fanuc |
| Product Type | Redundancy Communications Module |
| Connector Type | DB9 |
| Communication Protocol | RS – 232, RS – 485 |
| Data Transfer Rate | Up to 230 kbps |
| Power Supply Voltage | DC 24V |
| Operating Temperature | – 10 °C to + 55 °C |
| Storage Temperature | – 20 °C to + 70 °C |
| Dimensions (W x H x D) | 59 mm x 115 mm x 40 mm |
| Weight | 0.2 kg |
| Required Current | 1.2 amps |
| LED Indicators | 5 |

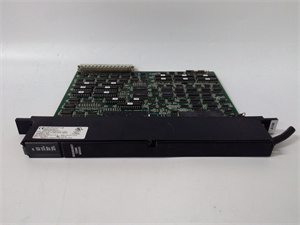

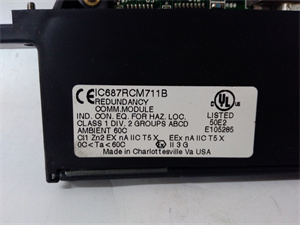

IC687RCM711
Main Features and Advantages
Reliable and stable: The GE Fanuc IC687RCM711 uses advanced redundancy technology to safeguard against communication failures, ensuring continuous operation even under adverse conditions. It has a wide operating temperature range, from – 10 °C to + 55 °C, enabling it to function reliably in various industrial environments.
High – speed data transfer: Supporting communication protocols such as RS – 232 and RS – 485, the module allows for efficient data transfer, with a data transfer rate of up to 230 kbps. This makes it suitable for applications requiring high – speed, low – latency communications.
Compact and lightweight: With dimensions of 59 mm x 115 mm x 40 mm and a weight of 0.2 kg, the IC687RCM711 has a compact size and lightweight design. It can be easily installed in any space – limited environment without sacrificing performance.
Easy to install and integrate: The module is designed for seamless integration into complex control environments, simplifying the setup process and reducing downtime and maintenance costs. It is also compatible with a wide range of control systems, offering seamless interoperability.

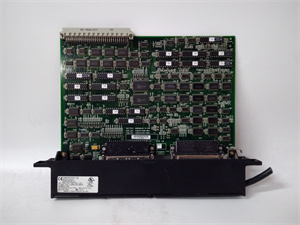

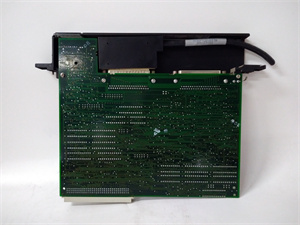

IC687RCM711
Application Field
Related Products
- IC697 series CPUs: These are compatible CPUs with the IC687RCM7111. They work together to form a complete control system, with the CPUs being responsible for overall system control and the IC687RCM711 handling redundancy communication.
- GE Fanuc IC687 series modules: Other modules in the IC687 series may have different functions, such as input/output modules or control modules. They can be used in combination with the IC687RCM711 to meet different requirements of industrial control systems.
- GE Fanuc RX3i series products: The IC687RCM711 is related to the RX3i series, and it is often used in the RX3i – based control systems to provide redundancy communication functions.
Installation and Maintenance
Maintenance recommendations: Regularly check the status of the IC687RCM711 through the 5 LED indicators on the module. Clean the module regularly to prevent dust and dirt from affecting its performance. If any problems are found, refer to the product manual for troubleshooting or contact GE Fanuc’s technical support.
