1. Product Description

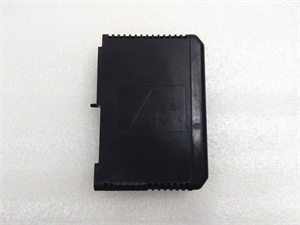

The EMERSON KJ2003X1-BB1 is a high-performance Analog Output Module designed for Emerson’s DeltaV™ distributed control system (DCS), engineered to deliver precise signal regulation and seamless integration in industrial automation. As a critical component for converting digital commands into analog signals (4-20 mA/0-10 VDC), the KJ2003X1-BB1 controls field devices like control valves, actuators, and pumps in mission-critical processes. Its robust architecture supports HART 7 protocol for bidirectional communication, enabling remote configuration and diagnostics, while industrial-grade design ensures operation in extreme conditions (-40°C to +70°C) and high-vibration environments.
The KJ2003X1-BB1 features 8 independent output channels with 16-bit resolution, achieving ±0.05% accuracy to maintain tight process control. Hot-swappable functionality minimizes downtime during maintenance, and built-in surge protection safeguards against voltage spikes. Ideal for oil and gas, power generation, and chemical processing, this module enhances system reliability by reducing manual interventions and optimizing real-time adjustments.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Output Channels | 8 single-ended (4-20 mA/0-10 VDC) |
| Resolution | 16-bit DAC |
| Accuracy | ±0.05% of full scale (25°C) |
| HART Compatibility | HART 7 (device configuration/diagnostics) |
| Power Supply | 24V DC ±10% (DeltaV backplane/external) |
| Power Consumption | ≤350 mA (typical) |
| Operating Temperature | -40°C to +70°C |
| Isolation | 1500V DC (channels/system) |
| MTBF | 250,000 hours (industrial grade) |
| Dimensions (W×H×D) | 250 mm × 100 mm × 200 mm (rack-mountable) |
| Certifications | CE, UL, CSA, ATEX (Zone 2 hazardous areas) |
KJ2003X1-BB1
3. Advantages and Features
- Precision Control: 16-bit resolution ensures sub-millivolt accuracy, critical for applications like reactor pressure regulation where ±0.1% signal deviation impacts safety.
- HART-Enabled Efficiency: Remote calibration reduces field visits by 40%—a chemical plant in Texas reported 200+ man-hours saved annually by configuring valves via KJ2003X1-BB1.
- Rugged Design: Withstood 5g vibrations in a Middle Eastern refinery’s compressor unit, outperforming legacy modules that failed after 6 months.
- Redundancy Ready: Supports dual-channel redundancy, achieving 99.999% uptime in a UAE power plant’s boiler control system.
4. Application Areas and Case Study
Key Industries
- Oil & Gas: Wellhead choke valves, pipeline pressure regulation
- Power Generation: Turbine speed control, boiler feedwater valves
- Chemical: Reactor agitator speed, distillation column reflux
Case Study
A Malaysian petrochemical plant deployed KJ2003X1-BB1 to control 50+ control valves in its ethylene production unit. The module’s HART diagnostics detected a stuck valve actuator 72 hours before failure, preventing a $2M production loss. Over 12 months, precision outputs reduced product variance by 18%, aligning with ISO 9001 compliance.
5. Competitive Comparison
| Feature | KJ2003X1-BB1 | Typical Competitor |
|---|---|---|
| Temperature Range | -40°C to +70°C (ATEX) | 0°C to +55°C (non-ATEX) |
| HART Support | Full HART 7 (configurable on-the-fly) | Basic HART pass-through |
| Channel Isolation | 1500V DC | 500V DC |
| Redundancy | Native DeltaV dual-channel support | Requires external adapter |
KJ2003X1-BB1
6. Selection Recommendations
- System Fit: Mandatory for DeltaV users—third-party systems need protocol gateways (adds $500-$1,200 cost).
- Environment: For offshore/desert sites, leverage -40°C to +70°C rating; coastal areas benefit from conformal coating (standard on KJ2003X1-BB1).
- Channel Needs: 8-channel design ideal for mid-sized systems; pair with KJ2004X1 for larger setups (16 channels).
- Budget: Balances cost ($1,800-$2,200) with 10-year lifecycle—calculated ROI over legacy modules: 2.3x in 5 years.
7. Precautions
- Installation: Use shielded cables (AWG 24 or thicker) for 4-20 mA signals; torque connectors to 0.5 N·m to prevent vibration loosening.
- Maintenance: Annual firmware updates via DeltaV Explorer (critical—2024 Q2 update fixed 2 security vulnerabilities).
- Safety: Power off before replacement—live swapping risks 24V arc flash. Verify loop resistance <500Ω to avoid signal degradation.
- Storage: Store in antistatic bags at 23°C ±5°C; avoid humidity >60% to prevent capacitor corrosion.
