Product Specification for EMERSON 5X00063G01 Ovation HART Analog Output Module
The EMERSON 5X00063G01 is a high-performance HART analog output module designed for critical industrial applications within the Ovation control system by Emerson. Engineered to deliver precise signal transmission and advanced diagnostic capabilities, this module is ideal for industries such as oil & gas, chemical processing, and power generation. With its robust design and HART protocol support, the 5X00063G01 ensures reliable operation and seamless integration in demanding environments.
1. Product Overview
The EMERSON 5X00063G01 serves as a key component in industrial control systems, enabling the conversion of digital signals into analog outputs for process control and monitoring. Built for the Ovation platform, it supports up to 8 channels of isolated analog output, with a 14-bit resolution and direct compatibility with 4-20mA current signals . Its modular design allows easy integration into existing systems, while its HART 7 protocol support enables bidirectional communication with smart field devices for advanced diagnostics and configuration .
2. Product Parameters
| Parameter | Specification |
|---|---|
| Channels | 8 isolated channels |
| Output Types | 4-20mA current |
| Resolution | 14 bits |
| Accuracy | ±0.1% of full-scale reading |
| HART Protocol | HART 7 (bidirectional communication) |
| Power Supply | 24/48 V DC (external) |
| Communication | Ovation proprietary bus |
| Mounting | DIN rail with base unit |
| Dimensions | 12.1 x 5.2 x 16.6 cm |
| Weight | 0.32 kg |

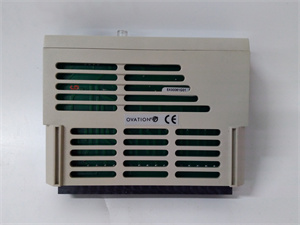

5X00063G01
3. Advantages and Features
- HART Protocol Integration: Supports bidirectional communication with HART-enabled devices, allowing real-time diagnostics, calibration, and configuration without disrupting operations .
- High Precision: Delivers 14-bit resolution and ±0.1% accuracy, ensuring precise control of process variables such as flow, pressure, and temperature .
- Reliability: Engineered with redundancy and fault-tolerant design, minimizing downtime in critical applications.
- Wide Temperature Range: Operates reliably in environments from -40°C to +85°C, suitable for extreme industrial conditions .
- Easy Integration: Designed for the Ovation system, simplifying configuration and reducing installation complexity.
4. Application Areas and Case Studies
Industry Applications:
- Oil & Gas: Controlling valves and actuators in refineries and offshore platforms.
- Chemical Processing: Regulating reactor systems and distillation columns.
- Power Generation: Managing turbine control and boiler systems.
Case Study:
In a petrochemical plant, the 5X00063G01 was deployed to control 16 HART-enabled control valves. Its bidirectional communication capabilities reduced maintenance time by 20% by enabling remote diagnostics and calibration, eliminating the need for manual field interventions .
In a petrochemical plant, the 5X00063G01 was deployed to control 16 HART-enabled control valves. Its bidirectional communication capabilities reduced maintenance time by 20% by enabling remote diagnostics and calibration, eliminating the need for manual field interventions .
5. Competitor Comparison
The 5X00063G01 outperforms many analog output modules in the market with its combination of HART 7 support, 14-bit resolution, and direct 4-20mA output. Unlike some competitors, it eliminates the need for additional signal conditioning modules, streamlining system design. Its compatibility with the Ovation ecosystem ensures seamless integration, a feature not universally offered by other brands.
5X00063G01
6. Selection Recommendations
- Compatibility: Ensure the module aligns with your Ovation system’s architecture and software version.
- Output Requirements: Verify signal types and ranges match your application (e.g., 4-20mA vs. voltage outputs).
- Expansion Needs: Consider future scalability by selecting modules with additional channels if required.
- Budget: Balance cost with features like HART diagnostics and redundancy.
7. Precautions
- Installation: Use proper ESD protection during handling and follow DIN rail mounting guidelines.
- Environment: Operate within -40°C to +85°C and avoid exposure to moisture or corrosive gases.
- Maintenance: Regularly check for loose connections and update firmware to benefit from security patches and performance improvements.
