Description
Product Overview

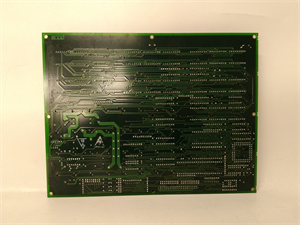

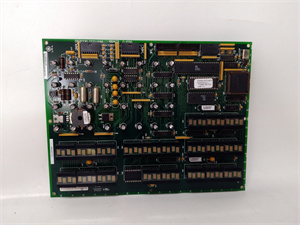

The GE DS215KLDCG1AZZ03A is a high – performance Key LED Display Card meticulously designed by General Electric for its advanced Speedtronic Mark V turbine control systems. As a critical component within these systems, it plays a pivotal role in the seamless operation and monitoring of turbines.
This large printed circuit board, weighing approximately 1.07 lbs, is engineered to provide real – time visual indicators. These indicators are essential for operators to monitor and control the intricate operations of turbines. In the context of industrial power generation and other applications where turbines are utilized, the DS215KLDCG1AZZ03A ensures that the turbine’s performance can be closely tracked, and any necessary adjustments can be made promptly. It is an integral part of maintaining the stability and efficiency of the overall turbine control environment, contributing to reliable power output and smooth industrial processes.
Technical Specifications
|
Parameter Name
|
Parameter Value
|
|
Product Model
|
DS215KLDCG1AZZ03A
|
|
Manufacturer
|
General Electric
|
|
Product Type
|
Key LED Display Card
|
|
Series
|
Mark V
|
|
Functional Revision
|
1A
|
|
Artwork Revision
|
1Z
|
|
PCB Coating
|
Normal Coating
|
|
Factory – Drilled Installation Holes
|
Yes
|
|
Weight
|
1.07 lbs
|
|
Number of LEDs
|
32 (each identified as DS1 – DS32)
|
|
Connection Strip Pins
|
40 – pin male connector
|
|
Integrated Circuits (Top Half)
|
6
|
|
Integrated Circuits (Bottom Half)
|
12
|
|
EPROMs
|
2
|
|
Resistor Networks (Top Half)
|
3 yellow
|
|
Resistor Networks (Bottom Half)
|
19 yellow
|
|
Large Resistors (Bottom Half)
|
6
|
|
Diodes (Bottom Half)
|
Many
|
|
Relays
|
3
|
|
Capacitors (Top Side)
|
Small yellow and larger yellow, plus 2 additional yellow
|
DS215KLDCG1AZZ03A
Main Features and Advantages
Real – time Visual Monitoring: The GE DS215KLDCG1AZZ03A is equipped with 32 white display lamps, which serve as real – time visual indicators. These lamps provide operators with immediate feedback on the status of various turbine operations. For example, they can show the on/off status of different components, the progress of certain processes, or indicate any potential malfunctions. This real – time monitoring capability enables quick decision – making, reducing the risk of costly downtime.
Reliable Construction: Built with a robust design, this display card can withstand the harsh conditions often found in industrial environments. The normal PCB coating protects the board from dust, moisture, and other environmental factors that could potentially damage the internal components. This ensures the longevity of the card and its reliable operation over an extended period, even in challenging industrial settings.
Easy Installation: With factory – drilled installation holes located at the corners and center of the sides of the board, the DS215KLDCG1AZZ03A simplifies the installation process. Technicians can easily mount the board securely, reducing the risk of misalignment or damage during assembly. This ease of installation not only saves time but also minimizes the potential for installation – related errors, which could otherwise affect the performance of the turbine control system.
Application Field
Power Generation: In power plants, whether they are powered by fossil fuels, such as coal or natural gas, or renewable sources like wind or hydro, turbines are the heart of the power – generation process. The GE DS215KLDCG1AZZ03A is used to monitor and control the operation of these turbines. Operators can rely on the visual indicators provided by the card to ensure that the turbines are running at optimal efficiency, adjusting parameters like speed, load, and temperature as needed. This helps in maintaining a stable power supply to the grid.
Industrial Manufacturing: In industries where turbines are used for various processes, such as in the oil and gas industry for compression and separation processes, or in chemical plants for powering certain machinery, the DS215KLDCG1AZZ03A plays a crucial role. It allows for the precise control and monitoring of turbine – driven operations, ensuring the smooth running of the manufacturing process and the quality of the final products.
DS215KLDCG1AZZ03A
Related Products
- GE DS200 series related boards: These boards are part of the same ecosystem as the DS215KLDCG1AZZ03A within the Mark V series. They may have different functions, such as input/output control or signal processing, but are designed to work in tandem with the Key LED Display Card. For example, some DS200 series boards may provide the data that the DS215KLDCG1AZZ03A then visually represents through its LEDs.
- Mark V turbine control system accessories: Accessories like mounting brackets specifically designed for the Mark V system can be used in conjunction with the DS215KLDCG1AZZ03A. These brackets ensure a secure and proper fit of the display card within the control system enclosure, enhancing the overall stability of the installation.
- GE power supply modules for Mark V: Power supply modules designed by GE for the Mark V series are essential for powering the DS215KLDCG1AZZ03A. They need to provide a stable and consistent power source to ensure the reliable operation of the display card. Different power supply modules may have varying power capacities to suit different system requirements.
- Other Key LED Display Cards (if available): There could be other versions or models of Key LED Display Cards within the GE product range. These may have different features, such as a different number of LEDs, enhanced visual display capabilities, or improved durability. They could be alternative options for customers depending on their specific needs and budget.
- Communication modules for Mark V: Communication modules are used to transfer data to and from the DS215KLDCG1AZZ03A and other components in the Mark V system. They enable seamless communication between different parts of the turbine control system, allowing for coordinated operation and the efficient transfer of information for monitoring and control purposes.
Installation and Maintenance
Pre – installation preparation: Before installing the GE DS215KLDCG1AZZ03A, ensure that the power to the Mark V turbine control system is turned off. Wear anti – static wristbands to prevent electrostatic discharge, which could damage the sensitive components on the board. Inspect the board for any visible signs of damage during transit. Check the installation location to make sure it is clean and free from any debris. Verify that the mounting holes on the board align with the intended mounting surface. Have all the necessary tools, such as screwdrivers and nuts/bolts for mounting, ready.
Maintenance recommendations: Regularly check the connection of the DS215KLDCG1AZZ03A to ensure that it is firmly attached to the system. Inspect the LEDs to see if they are functioning properly. If any LEDs are not lighting up as expected, it could indicate a problem with the board or the associated circuitry. Clean the board periodically to remove dust and dirt, as these can accumulate and affect the performance of the components. Check for any signs of corrosion or physical damage to the board. In case of any issues, refer to the product manual provided by GE or contact their technical support for guidance.
Product Guarantee
GE stands firmly behind the quality of the GE DS215KLDCG1AZZ03A. The company has a reputation for manufacturing high – quality industrial control products, and this Key LED Display Card is no exception. It is factory – tested to ensure it meets strict quality standards. In case of any manufacturing defects, GE offers a comprehensive warranty. Their global network of technical support teams is available to assist customers with any product – related queries. Whether it’s installation guidance, troubleshooting, or warranty claims, GE is committed to providing prompt and efficient service. This reflects their confidence in the reliability and performance of the DS215KLDCG1AZZ03A, giving customers peace of mind when using this product in their critical turbine control systems.
