Description
Product Overview
The GE DS200DCFBG2BNC MRP445970 is a pivotal power supply board within GE’s esteemed Mark V series. This series is renowned for its applications in controlling steam and gas turbines, where reliability and precision are of utmost importance. The DS200DCFBG2BNC MRP445970 plays a crucial role in ensuring the stable operation of related systems. It provides the necessary control power and is responsible for powering enclosure fans, drawing power directly from 38 to 115 VAC supplied via the control power transformer. Additionally, the board houses circuits dedicated to motor field power, driver functions, AC/DC monitoring, and control – level supply. With its complex circuitry and design, it caters to the specific power requirements of Mark V series machines such as AC 2000, CB 2000, DC 2000, FC 2000, ME 2000, and EX2000, making it an essential component in industrial control setups related to turbine operations.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DS200DCFBG2BNC MRP445970 |
| Manufacturer | GE |
| Product Type | Power Supply Board |
| Input Voltage Range | 38 – 115 VAC (from control power transformer) |
| Output Power | Supplies control – level power and 115 VAC for enclosure fans |
| Circuit Functions | Motor field power, driver, AC/DC monitoring, control – level supply |
| Configuration | Twelve jumpers and seven DIP switches for settings |
| Indicator Features | LED and neon indicator lights for fuse switch diagnostics |
| Protective Fuses | Three to ensure power continuity |
| Test Points | Five for monitoring voltages |
| Weight | Approximately 1.36 kg (3 lbs) |
| Warranty | 3 years |
| Series Compatibility | Mark V series (AC 2000, CB 2000, DC 2000, FC 2000, ME 2000, EX2000) |

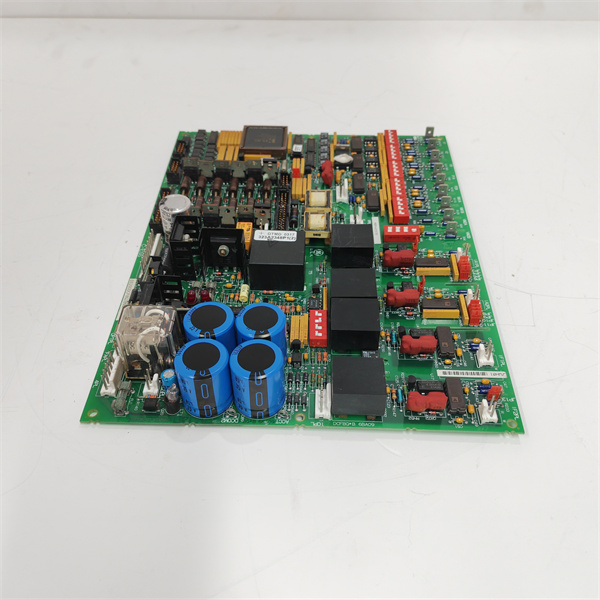

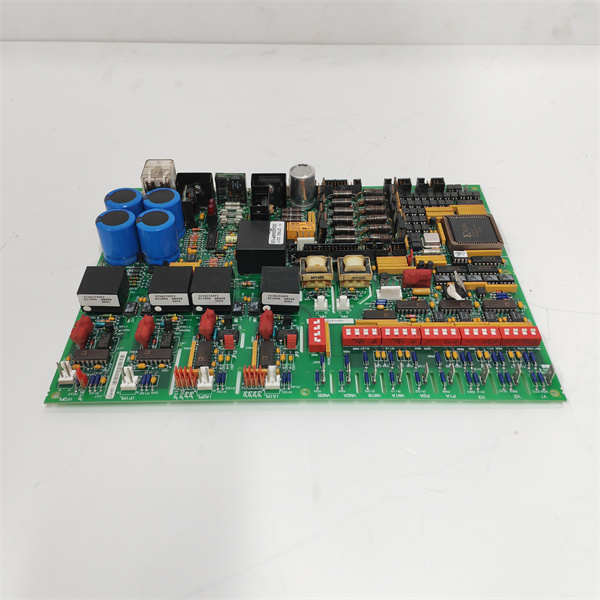

DS200DCFBG2BNC MRP445970
Main Features and Advantages
Power Provision: The DS200DCFBG2BNC MRP445970 efficiently supplies control – level power to the drive and 115 VAC power to enclosure fans. This dual – power output feature ensures that different components within the system receive the appropriate power levels for optimal operation.
Circuit Complexity: It incorporates circuits for motor field power, driver functions, and AC/DC monitoring. This integrated design simplifies the overall system architecture by handling multiple power – related functions on a single board, reducing the need for additional components and potential points of failure.
Configuration Flexibility: With twelve jumpers and seven DIP switches, users can configure various settings according to their specific application requirements. This allows for customization, ensuring the board can be adapted to different operating conditions and system setups.
Diagnostic and Protection: LED and neon indicator lights are present for fuse switch diagnostics, enabling quick identification of potential issues. Moreover, three protective fuses safeguard power continuity, and five test points are available for voltage monitoring. These features enhance the board’s reliability and ease of maintenance.
Circuit Complexity: It incorporates circuits for motor field power, driver functions, and AC/DC monitoring. This integrated design simplifies the overall system architecture by handling multiple power – related functions on a single board, reducing the need for additional components and potential points of failure.
Configuration Flexibility: With twelve jumpers and seven DIP switches, users can configure various settings according to their specific application requirements. This allows for customization, ensuring the board can be adapted to different operating conditions and system setups.
Diagnostic and Protection: LED and neon indicator lights are present for fuse switch diagnostics, enabling quick identification of potential issues. Moreover, three protective fuses safeguard power continuity, and five test points are available for voltage monitoring. These features enhance the board’s reliability and ease of maintenance.
Application Field
The GE DS200DCFBG2BNC MRP445970 finds extensive applications in industries where gas and steam turbines are utilized. In power generation plants, it powers the control systems of turbines, ensuring stable power output. For example, in a gas – fired power plant, the board supplies power to the control mechanisms that regulate the turbine’s speed and performance, contributing to the efficient generation of electricity. In industrial manufacturing facilities that use steam turbines for process heating or mechanical power, the DS200DCFBG2BNC MRP445970 plays a vital role in maintaining the proper functioning of the turbine control systems. It is also applicable in oil and gas refineries, where turbines are used for various operations such as compression and pumping. The board’s reliable power supply capabilities are crucial for ensuring the smooth running of these critical industrial processes.

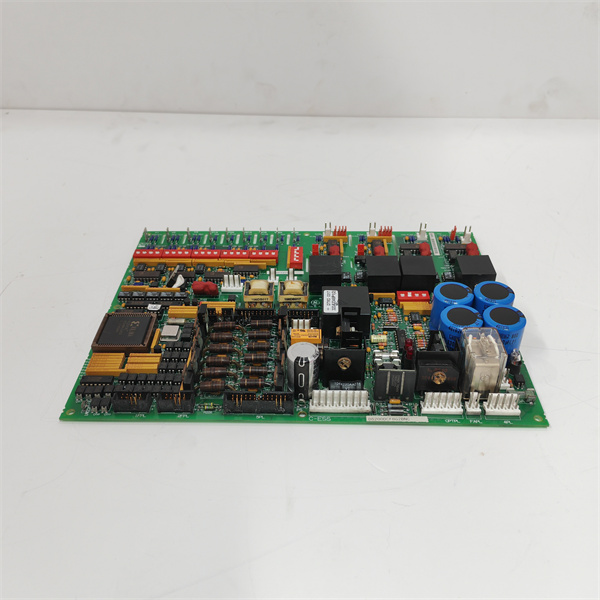

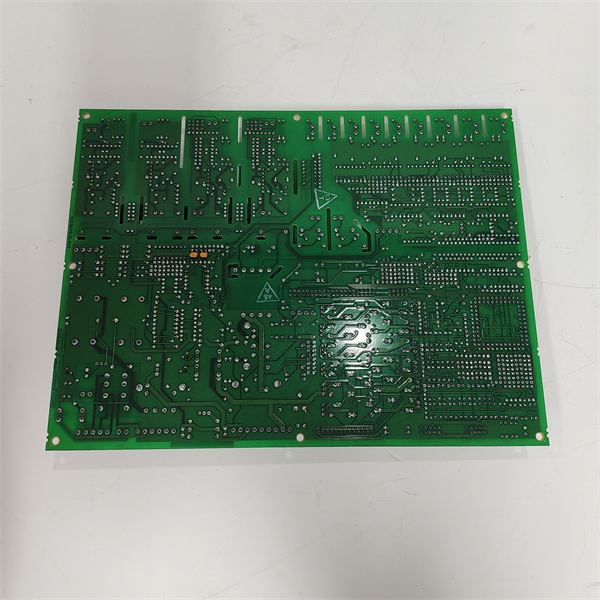

DS200DCFBG2BNC MRP445970
Related Products
- DS200DCFBG1B: A related power supply board within the same Mark V series. It likely has similar functions but may differ in some technical aspects or compatibility with specific models within the series.
- DS200CTBAG1A: An analog termination module that may work in tandem with the DS200DCFBG2BNC MRP445970 in a Mark V system setup. It is responsible for handling analog signals, complementing the power – supply functions of the main board.
- DS200CVMAG1A: A cap/fuse voltage monitor board. In a turbine control system, it monitors voltages related to capacitors and fuses, while the DS200DCFBG2BNC MRP445970 focuses on general power supply, and both are important for the overall electrical management.
- DS200CDBAG1A: A contactor driver board. It is involved in controlling contactors, which are used for switching electrical circuits. It interacts with the power supply provided by the DS200DCFBG2BNC MRP445970 to ensure proper operation of electrical components in the system.
- DS200ADPG1A: A genius adapter card. It may be used to interface with other components in the system, relying on the power supplied by the DS200DCFBG2BNC MRP445970 to function and enabling communication and integration within the Mark V setup.
Installation and Maintenance
Pre – installation preparation: Before installing the DS200DCFBG2BNC MRP445970, carefully verify that the incoming power source is within the specified 38 – 115 VAC range from the control power transformer. Ensure that the installation area is clean and free from any debris or potential sources of electrical interference. Disconnect all power to the system to avoid the risk of electric shock during installation. Familiarize yourself with the location where the board will be mounted, making sure it has proper ventilation to prevent overheating.
Maintenance recommendations: Regularly inspect the LED and neon indicator lights on the DS200DCFBG2BNC MRP445970 to check for any abnormal fuse switch conditions. Periodically clean the board to remove dust and dirt, as these can affect its performance and heat dissipation. Check the three protective fuses for any signs of damage or blown fuses. If any issues are detected, refer to the product manual for troubleshooting steps. If problems persist, contact GE’s technical support for professional assistance.
Maintenance recommendations: Regularly inspect the LED and neon indicator lights on the DS200DCFBG2BNC MRP445970 to check for any abnormal fuse switch conditions. Periodically clean the board to remove dust and dirt, as these can affect its performance and heat dissipation. Check the three protective fuses for any signs of damage or blown fuses. If any issues are detected, refer to the product manual for troubleshooting steps. If problems persist, contact GE’s technical support for professional assistance.
Product Guarantee
GE stands firmly behind the quality of the DS200DCFBG2BNC MRP445970 with a 3 – year warranty. This warranty assures customers that the board is free from defects in materials and workmanship. In case of any quality – related issues during this period, GE will provide repair or replacement services. Additionally, GE offers comprehensive technical support to assist customers with installation, configuration, and any operational questions related to the board. This commitment reflects GE’s confidence in the reliability and performance of the DS200DCFBG2BNC MRP445970, giving customers peace of mind when integrating it into their industrial control systems.
