Description
Product Overview
The ABB DTCC901B is a high – performance temperature controller module designed for industrial automation systems. It plays a crucial role in maintaining precise temperature control in various industrial applications.
This module features advanced PID control algorithms, which ensure accurate and stable temperature regulation. With a wide input range of 0 to 1000 °C, the DTCC901B can handle a variety of temperature monitoring and control tasks. It supports Modbus RTU/TCP communication protocol, enabling seamless integration with existing industrial systems and networks. This makes it a highly versatile choice for modern industrial automation setups. Designed to withstand harsh industrial environments, the ABB DTCC901B has an IP65 environmental rating, guaranteeing long – term durability and reliable operation.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DTCC901B |
| Manufacturer | ABB |
| Product Type | Temperature Controller Module |
| Input Range | 0 – 1000 °C |
| Output Range | 0 – 20 mA / 4 – 20 mA |
| Accuracy | ± 0.1% of span |
| Control Algorithm | PID |
| Communication Protocol | Modbus RTU/TCP |
| Operating Voltage | 110 – 240 VAC |
| Environmental Rating | IP65 |
| Dimensions | 150 mm x 80 mm x 75 mm |
| Weight | 1.5 kg |

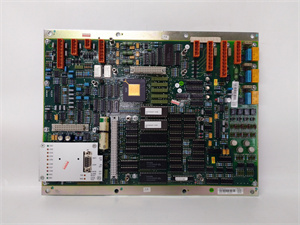

ABB DTCC901B
Main Features and Advantages
The ABB DTCC901B offers several notable features and advantages. Its advanced PID control algorithms are a key strength, enabling precise temperature control in industrial processes. This leads to improved product quality and process efficiency, as temperature – sensitive operations can be maintained within tight tolerances.
The wide input range of 0 – 1000 °C makes the DTCC901B suitable for a diverse range of applications, from food processing to chemical industries where different temperature requirements exist. The module’s communication capabilities are also a significant advantage. With support for Modbus RTU/TCP, it can easily integrate with other components of an industrial automation system, allowing for seamless data exchange and centralized control.
Furthermore, the DTCC901B is built to last in harsh industrial environments. The IP65 rating means it is protected against dust and water ingress, ensuring reliable performance even in challenging conditions. Its user – friendly design, including easy – to – read LED indicators and a simple interface for parameter adjustments, makes it convenient for operators to use and maintain.
Application Field
The ABB DTCC901B is widely applicable in various industrial fields. In the manufacturing industry, it is used in processes such as metal casting and plastic molding, where precise temperature control is critical for ensuring the quality of the final products. In the food processing industry, it helps maintain the appropriate temperature for cooking, baking, and refrigeration processes, ensuring food safety and quality.
In the chemical industry, the DTCC901B is utilized in reaction vessels and distillation columns to control the temperature of chemical reactions and separations. It is also suitable for use in power plants, where it monitors and controls the temperature of various equipment, such as turbines and generators, to ensure their efficient and safe operation. Additionally, in the pharmaceutical industry, the module is employed in processes like drug synthesis and sterilization to maintain the required temperature conditions.
ABB DTCC901B
Related Products
- DTCC902B: An upgraded version of the DTCC901B, with enhanced accuracy and additional communication options.
- DTCC801B: A lower – cost alternative in the same series, suitable for applications with less demanding temperature control requirements.
- ABB PM Series DCS System: A distributed control system that can be integrated with the DTCC901B for comprehensive process control.
- ABB ict High – Voltage Frequency Converter Series: Works in conjunction with the DTCC901B to provide power conversion and temperature control in industrial applications.
- ABB DCS Communication Modules: These modules help in establishing reliable communication between the DTCC901B and other components of the DCS system.
Installation and Maintenance
Pre – installation preparation: Before installing the ABB DTCC901B, ensure that the installation site meets the environmental requirements, such as being clean and dry. Check the power supply voltage to ensure it is within the specified range of 110 – 240 VAC. Also, make sure there is enough space for the module and that the DIN rail is properly installed.
Maintenance recommendations: Regularly check the status of the DTCC901B through the LED indicators. Clean the module regularly to prevent dust from accumulating. Periodically verify the accuracy of the temperature measurements and adjust the PID parameters if necessary. In case of any faults, refer to the user manual or contact ABB’s technical support for assistance.
Product Guarantee
ABB stands behind the quality of the DTCC901B with a comprehensive product guarantee. The company offers a standard warranty period to ensure that the product is free from defects in materials and workmanship. In case of any issues during the warranty period, ABB will provide repair or replacement services. Additionally, ABB’s global network of technical support teams is available to assist customers with any technical questions or problems. The company is committed to providing high – quality after – sales service to ensure the long – term reliable operation of the DTCC901B in industrial applications.
