3511 TRICONEX

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Module Type	Analog Input Module for TMR systems
Power Supply	24V DC (±10%)
Input Channels	16 isolated channels
Input Signal Types	Voltage (0-10V, ±10V), Current (4-20mA), Thermocouple (J, K, T, E, R, S, B, N)
Resolution	16-bit analog-to-digital conversion
Input Range Accuracy	±0.1% of full scale for voltage/current
Common-Mode Rejection	>100 dB at 50/60 Hz
Redundancy	Triple Modular Redundancy (TMR) with 2-out-of-3 voting
Operating Temperature	-40°C to +70°C (storage: -45°C to +85°C)
Humidity	5%–95% non-condensing
SIL Certification	SIL-3 (IEC 61508)
Compatibility	TRICONEX Triplex control systems, Tricon Vx platforms
Power Consumption	<5W per module

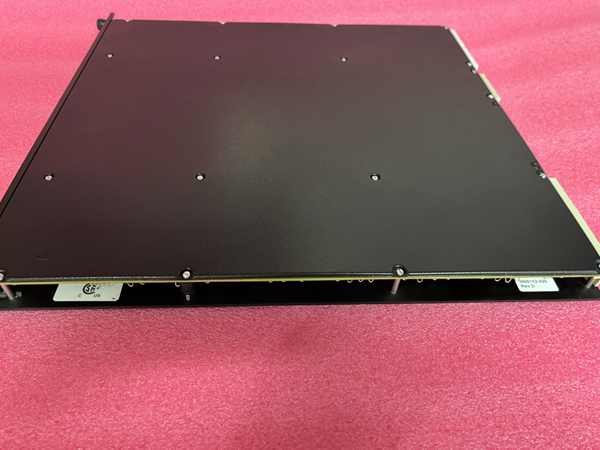

TRICONEX 3511

3. Advantages and Characteristics

• Triple Modular Redundancy (TMR): The TRICONEX 3511 uses TMR technology to process signals through three independent channels, achieving a mean time between failures (MTBF) exceeding 250,000 hours. This redundancy ensures continuous operation even if one channel fails, reducing the risk of unplanned downtime by up to 90% compared to non-redundant modules.
• High Accuracy: With a 16-bit analog-to-digital conversion resolution and an input range accuracy of ±0.1% for voltage and current signals, it provides precise measurement data. In a chemical plant application, this accuracy helped in maintaining the quality of the chemical products by accurately controlling the process parameters.
• Isolated Channels: The 16 isolated channels prevent cross-talk and interference between different input signals, ensuring accurate signal transmission. In a noisy industrial environment, this feature significantly improved the reliability of the data acquired from various sensors.
• Hot-Swap Capability: Faulty modules can be replaced without powering down the system, cutting maintenance time by up to 60% compared to non-hot-swappable alternatives. This is crucial for maintaining the uptime of critical industrial processes.
• Wide Operating Temperature Range: The module can operate in temperatures ranging from -40°C to +70°C, making it suitable for use in extreme environments such as offshore platforms, where temperature fluctuations are significant.

4. Application Areas and Application Cases

• Industry Applications:
  • Oil and Gas: Used for monitoring wellhead pressures, pipeline flow rates, and temperatures in both onshore and offshore facilities.
  • Chemical Processing: Ideal for controlling reactor temperatures, monitoring chemical concentrations, and managing flow rates in various chemical processes.
  • Power Generation: Applied in turbine temperature monitoring, boiler pressure control, and other power plant processes to ensure safe and efficient operation.
  • Manufacturing: Employed for quality control by monitoring parameters such as temperature, pressure, and flow in manufacturing lines.
• Case Study: In a large power generation plant, the TRICONEX 3511 was installed to monitor the temperature of the steam turbines. Its high accuracy and reliability allowed for precise temperature measurement, enabling the plant operators to maintain the turbines within the optimal operating temperature range. The TMR technology ensured that even if one of the channels experienced a fault, the system continued to operate without interruption. This helped in preventing potential turbine failures and reducing unplanned downtime, saving the plant millions of dollars in potential losses.

5. Competitive Comparison

Compared to similar analog input modules in the market, the TRICONEX 3511 stands out due to its combination of TMR redundancy, high accuracy, and wide operating temperature range. While some competing products may offer basic analog input functionality, they often lack the advanced redundancy features and high accuracy levels of the TRICONEX 3511. Additionally, the TRICONEX 3511‘s ability to handle multiple signal types in a single module makes it more versatile than many alternatives, reducing the need for additional modules and simplifying system integration.

TRICONEX 3511

6. Selection Recommendations

• System Compatibility: Ensure that the TRICONEX 3511 is compatible with your existing TRICONEX control system, including the backplane and software versions. This is crucial for seamless integration and proper operation.
• Signal Requirements: Determine the types of analog signals (voltage, current, thermocouple) and the number of channels you need for your application. Make sure the module can handle the specific signal ranges and types required.
• Environmental Conditions: Consider the operating environment of the module. If it will be used in a harsh environment with extreme temperatures, high humidity, or strong electromagnetic interference, ensure that the TRICONEX 3511 can withstand these conditions.
• Budget Considerations: While the TRICONEX 3511 offers high reliability and performance, factor in the cost of the module, including potential future maintenance and replacement costs.

7. Precautions

• Installation: Power down the system and use anti-static wrist straps during installation to prevent electrostatic discharge (ESD) damage. Ensure proper grounding of the module to minimize electromagnetic interference.
• Wiring: Double-check all wiring connections to ensure they match the specified signal type and voltage/current range. Incorrect wiring can lead to inaccurate measurements or damage to the module.
• Maintenance: Regularly check the module’s diagnostic status to monitor for any potential faults or issues. Update the module’s firmware as recommended by the manufacturer to ensure optimal performance and security.
• Storage: Store spare modules in a dry, temperature-controlled environment to prevent damage and ensure their longevity.
