Description
Product Overview
The GE VMIVME – 7698 is a high – performance single board computer (SBC) that has been engineered to meet the exacting demands of industrial automation, data acquisition, and embedded computing applications. As part of the VMIC product line, which was initially developed by GE’s automation industrial production division and later acquired by Abaco Systems, the VMIVME – 7698 holds a significant position in industrial control systems.
This single board computer is equipped with a powerful processor, enabling it to handle complex computational tasks with ease. It acts as a central processing hub, efficiently processing and managing data within the industrial control network. With its VMEbus interface, the GE VMIVME – 7698 can seamlessly communicate and integrate with other components in the system, such as I/O modules. This allows for real – time data transfer, ensuring that control commands are executed promptly and that sensor data is processed in a timely manner. In an industrial automation system, the VMIVME – 7698 is the core component that enables smooth operation, enhancing productivity and reliability.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | VMIVME – 7698 |
| Manufacturer | GE |
| Product Type | Single Board Computer |
| Processor | Celeron (Socket 370), some versions with Intel Pentium III |
| Operating Frequency | Up to 1.26 GHz (Celeron), varies for Pentium III |
| Memory | Up to 512 MB DDR RAM (Celeron versions), 512 MB SDRAM (some Pentium III versions) |
| Storage | On – board flash memory, some with 80 GB hard drive option |
| Expansion Slots | VMEbus interface, PMC expansion site with VMEbus P2 I/O, supports PC MIP expansion site and VME64 mode (A32/A24/D32/D16/D08/MBLT64/BLT32) |
| Communication Interface | Ethernet (10/100/1000 Base – T in some versions), 2 serial ports (in some versions), 4 USB ports (in some versions) |
| Operating Temperature Range | – 40 °C to 85 °C |
| Humidity Range | 5% to 95% non – condensing |
| Dimensions | 160 mm x 100mm |
| Weight | 0.5 kg |

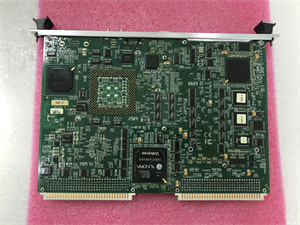

VMIVME-7698
Main Features and Advantages
High – Performance Processing
The GE VMIVME – 7698 comes with either a Celeron processor (Socket 370) or, in some versions, an Intel Pentium III. These processors offer substantial computing power, allowing the module to execute complex control algorithms and handle real – time data processing efficiently. For example, in industrial automation applications where rapid decision – making based on sensor data is crucial, the high – speed processor ensures that the system can respond promptly.
Robust Connectivity
Featuring a VMEbus interface, the VMIVME – 7698 can be easily integrated into existing industrial control setups. Additionally, versions with Ethernet (10/100/1000 Base – T), serial ports, and USB ports enable seamless communication with a wide range of devices. Ethernet connectivity allows for high – speed data transfer, facilitating remote monitoring and control. The serial and USB ports are useful for local configuration, data backup, and connection to peripheral devices.
Reliability in Harsh Environments
With an operating temperature range spanning from – 40 °C to 85 °C and a humidity tolerance of 5% to 95% non – condensing, the GE VMIVME – 7698 is designed to withstand harsh industrial environments. Whether it’s deployed in a cold storage facility or a hot and humid manufacturing plant, the module maintains stable performance, reducing the risk of system failures due to environmental factors.

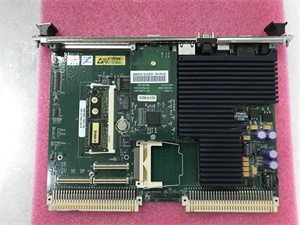

VMIVME-7698
Application Field
Industrial Automation
In manufacturing plants, the GE VMIVME – 7698 is widely used in automation systems. It can control and monitor production lines, such as regulating the speed of conveyor belts, controlling the movement of robotic arms, and managing the operation of assembly machines. By processing real – time data from sensors, it ensures that the production process is efficient, accurate, and error – free.
Data Acquisition Systems
The VMIVME – 7698 is well – suited for data acquisition in various industrial and scientific research fields. For instance, in a power plant, it can collect data from multiple sensors, including temperature, pressure, and flow sensors, to monitor the performance of turbines and generators. This data is then analyzed to optimize power generation and detect any potential issues.
Aerospace and Military Applications
Due to its high – performance capabilities and ability to operate in extreme conditions, the GE VMIVME – 7698 finds applications in aerospace and military systems. It can be used in aircraft avionics systems for data processing and control, or in military vehicles for monitoring and managing various subsystems.
Related Products
- GE VMIVME – 7698 – 146: A sub – model of the VMIVME – 7698 with specific configurations. It shares the core features of the VMIVME – 7698 but may have differences in minor details such as the exact processor speed or memory capacity. It is also designed for industrial control systems and can be an alternative choice depending on specific application requirements.
- GE IS215UCVEM09A: An analog – to – digital conversion module. It can be used in conjunction with the VMIVME – 7698 in applications where analog input signals need to be converted into digital data for processing by the VMIVME – 7698. For example, in a process control system that monitors analog sensor signals like temperature and pressure.
- GE DS200EXPSG1A: A power board that provides stable power supply to components in the industrial control setup. The VMIVME – 7698 relies on a stable power source, and the DS200EXPSG1A can ensure continuous and reliable operation of the VMIVME – 7698 and other connected devices.
- VMIVME – 7666 – 111000: Another industrial control component, potentially a digital output module. It can work in tandem with the VMIVME – 7698 in an industrial network. The VMIVME – 7698 may send control signals to the VMIVME – 7666 – 111000, which then outputs digital signals to drive external actuators.
- GE IC660BBS103: A turbine control module. In power generation or industrial processes involving turbines, the GE IC660BBS103 can work alongside the VMIVME – 7698. The VMIVME – 7698 may handle overall system control and data processing, while the IC660BBS103 focuses on specific turbine – related control functions.
Installation and Maintenance
Pre – installation preparation: Before installing the GE VMIVME – 7698, ensure that the VMEbus rack where it will be mounted is clean and free from dust and debris. Check the power supply to confirm it provides a stable voltage within the specified range for the module. Verify that all communication cables, especially those for Ethernet and VMEbus connections, are in good condition and properly terminated. Also, make sure the installation environment meets the temperature and humidity requirements stated in the product manual.
Maintenance recommendations: Regularly inspect the GE VMIVME – 7698 for any signs of physical damage, such as cracks on the board or loose connectors. Monitor its operating temperature to ensure it remains within the specified range. Periodically check the data communication status through the Ethernet and VMEbus interfaces. If any issues arise, refer to the product manual for troubleshooting steps. Additionally, keep the module’s firmware up – to – date to benefit from the latest performance improvements and bug fixes.
Product Guarantee
GE provides a comprehensive product guarantee for the GE VMIVME – 7698. The module undergoes strict quality control during the manufacturing process to meet the highest industry standards. GE typically offers a one – year warranty against defects in materials and workmanship. In the event of a failure within the warranty period, GE will provide prompt repair or replacement services. Their team of technical experts is available to offer support for installation, configuration, and troubleshooting. This commitment reflects GE’s confidence in the VMIVME – 7698‘s reliability and performance, giving customers peace of mind when integrating it into their industrial control systems.
